Select all	Attribute	Value
	Brand	DiodesZetex
	Logic Family	74AHC
	Logic Function	Buffer, Bus driver
	Number of Channels	1
	Schmitt Trigger Input	Yes
	Input Type	Schmitt Trigger
	Output Type	3 State
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOT-25
	Pin Count	5
	Maximum High Level Output Current	-8mA
	Maximum Low Level Output Current	8mA
	Maximum Propagation Delay Time @ Maximum CL	14.5 ns @ 50 pF
	Maximum Operating Supply Voltage	5.5 V
	Dimensions	3.1 x 1.7 x 1.3mm
	Minimum Operating Supply Voltage	2 V
	Height	1.3mm
	Width	1.7mm
	Minimum Operating Temperature	-40 °C
	Propagation Delay Test Condition	50pF
	Length	3.1mm
	Maximum Operating Temperature	+125 °C

	Select all
	Brand DiodesZetex
	Logic Family 74AHC
	Logic Function Buffer, Bus driver
	Number of Channels 1
	Schmitt Trigger Input Yes
	Input Type Schmitt Trigger
	Output Type 3 State
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOT-25
	Pin Count 5
	Maximum High Level Output Current -8mA
	Maximum Low Level Output Current 8mA
	Maximum Propagation Delay Time @ Maximum CL 14.5 ns @ 50 pF
	Maximum Operating Supply Voltage 5.5 V
	Dimensions 3.1 x 1.7 x 1.3mm
	Minimum Operating Supply Voltage 2 V
	Height 1.3mm
	Width 1.7mm
	Minimum Operating Temperature -40 °C
	Propagation Delay Test Condition 50pF
	Length 3.1mm
	Maximum Operating Temperature +125 °C

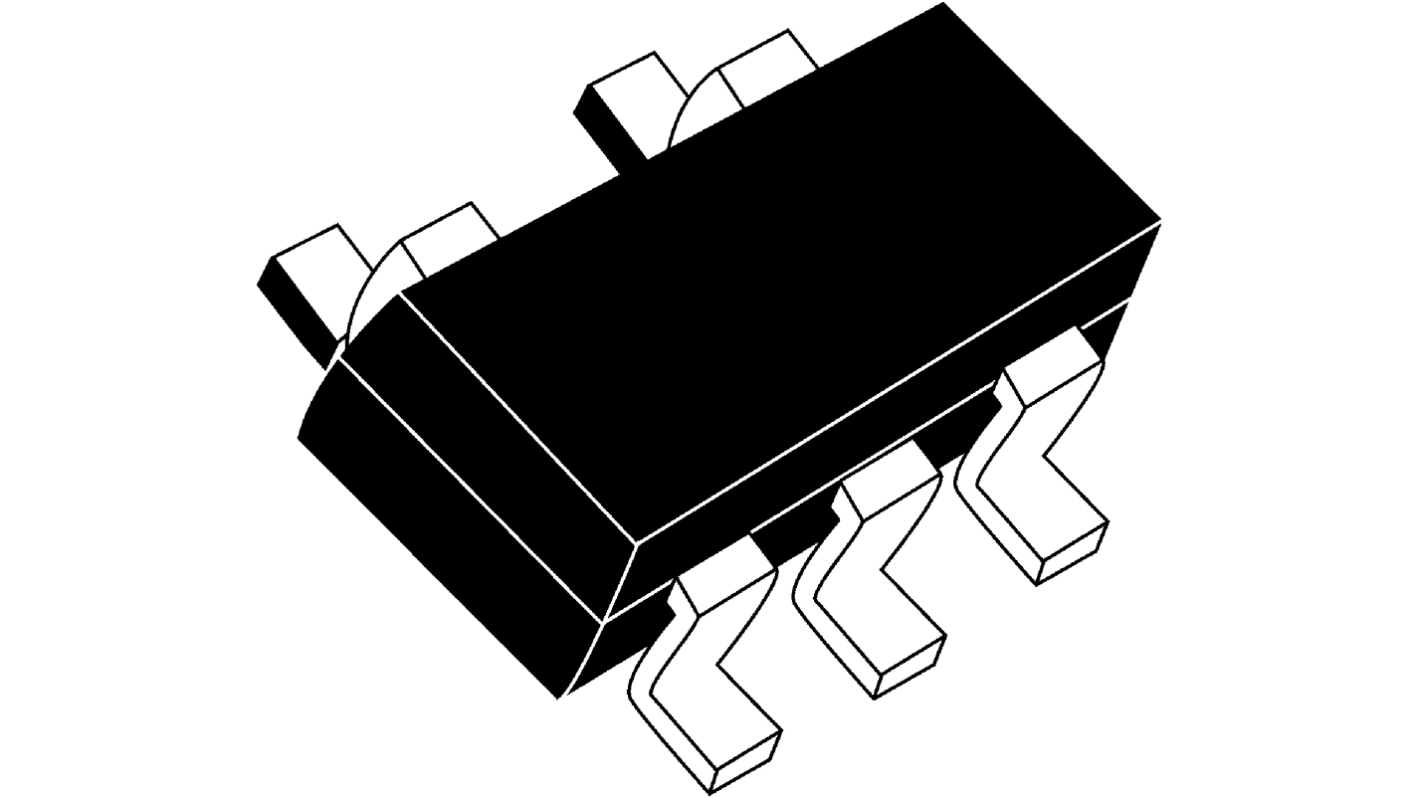

DiodesZetex 74AHC1G125W5-7 Non-Inverting Schmitt Trigger 3-State Buffer, 5-Pin SOT-25

74AHC1G Family, Diodes Inc
