Select all	Attribute	Value
	Brand	S2Ceb-Groupe Cae
	Terminated/Unterminated	Unterminated
	Coaxial Type	VCB100
	Outer Diameter	6.95mm
	Characteristic Impedance	75 Ω
	Attenuation	2.3 dB/100m @ 10MHz, 23 dB/100m @ 1GHz, 40.5 dB/100m @ 3GHz, 6.5 dB/100m @ 100MHz
	Length	100m
	Sheath Colour	Green
	Conductor Strand Type	Stranded
	Size of Strands	0.4 mm
	Maximum Operating Temperature	+80°C
	Sheath Material	Polyvinyl Chloride PVC
	Series	S2CEB
	Insulation Material	PE
	Velocity ratio	80%
	Minimum Operating Temperature	-15°C
	Standards Met	Euroclass Eca
	Operating Temperature Range	-30 → +70 °C
	Conductor Material	Bare Copper
	Core Strands	7/0.4 mm
	Shielding	Aluminium Coated Foil, Tinned Copper Braid
	Number of Strands	7

	Select all
	Brand S2Ceb-Groupe Cae
	Terminated/Unterminated Unterminated
	Coaxial Type VCB100
	Outer Diameter 6.95mm
	Characteristic Impedance 75 Ω
	Attenuation 2.3 dB/100m @ 10MHz, 23 dB/100m @ 1GHz, 40.5 dB/100m @ 3GHz, 6.5 dB/100m @ 100MHz
	Length 100m
	Sheath Colour Green
	Conductor Strand Type Stranded
	Size of Strands 0.4 mm
	Maximum Operating Temperature +80°C
	Sheath Material Polyvinyl Chloride PVC
	Series S2CEB
	Insulation Material PE
	Velocity ratio 80%
	Minimum Operating Temperature -15°C
	Standards Met Euroclass Eca
	Operating Temperature Range -30 → +70 °C
	Conductor Material Bare Copper
	Core Strands 7/0.4 mm
	Shielding Aluminium Coated Foil, Tinned Copper Braid
	Number of Strands 7

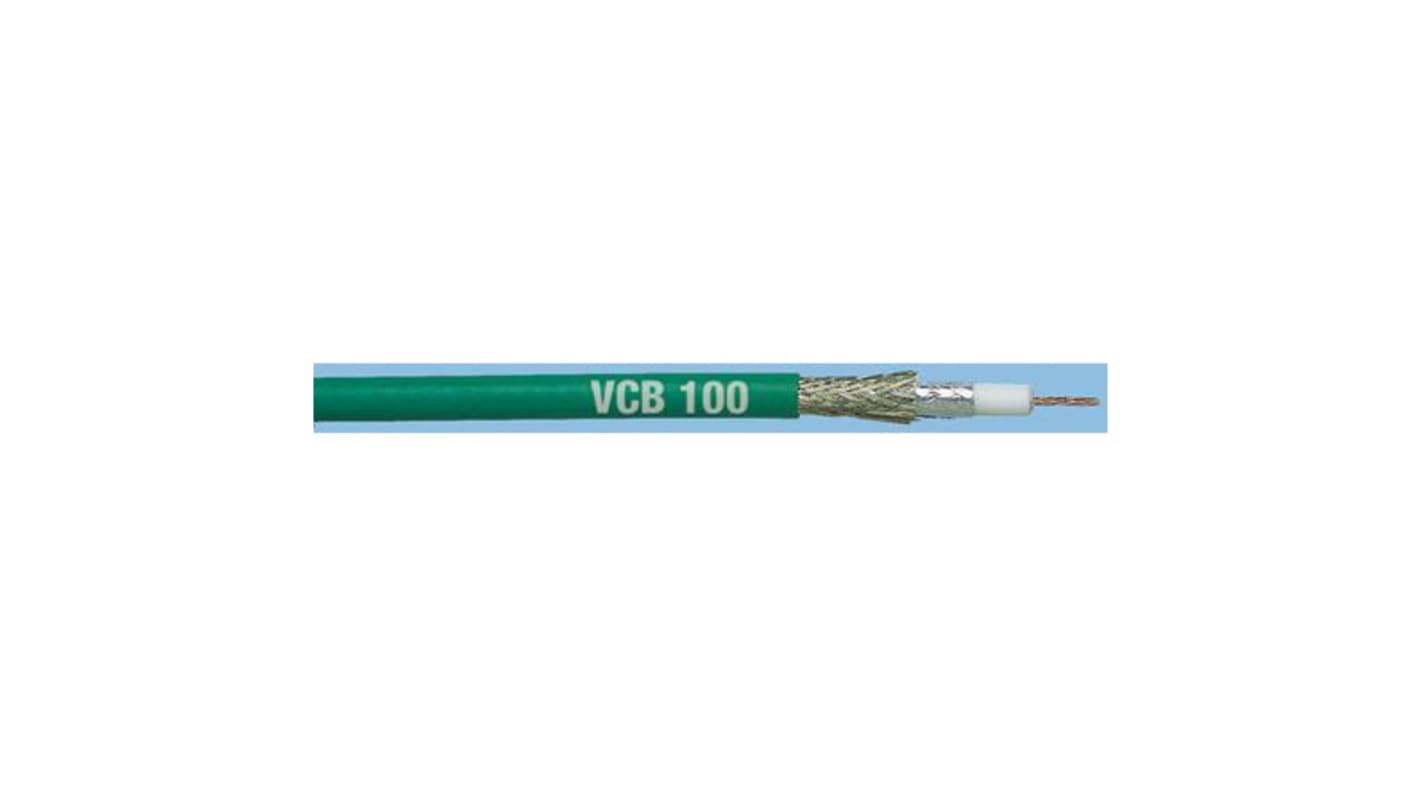

S2Ceb-Groupe Cae S2CEB Series, 100m, VCB100 Coaxial, Unterminated75 Ω

Alternative

VCB100 coaxial cable
