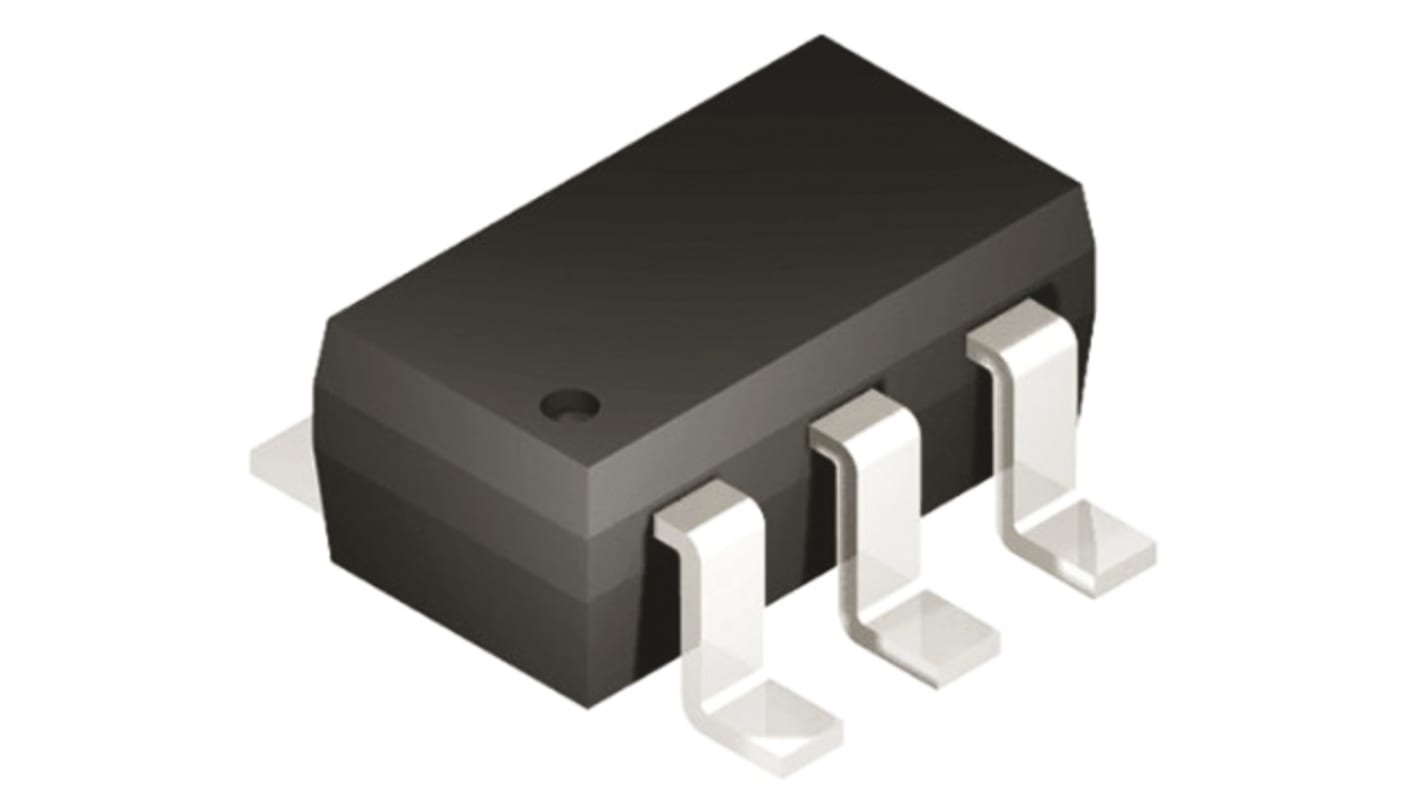

Name: TS1101-100EG6 Silicon Labs, Current Sensing Amplifier Single Bidirectional 6-Pin SOT-23
Brand: Silicon Labs
SKU: 823-5790P
Price: 1.26 EUR
Availability: OutOfStock

Current Sensing Amplifiers, Silicon Labs

The range of unidirectional and bi-directional, voltage-output current-sense amplifiers from Silicon Labs consume just 1 μA supply current. These high-side current-sense amplifiers exhibit a maximum 100-μV VOS and a 0.6% gain error. Both specifications are optimised for precision current measurement.

For high-side bidirectional current-sensing applications, the current sense amplifier devices are self-powered and feature a wide input common-mode voltage range from 2 V to 25 V.

Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.

Select all	Attribute	Value
	Brand	Silicon Labs
	Power Supply Type	Single
	Typical Single Supply Voltage	2 → 25 V
	Number of Channels per Chip	1
	Output Type	Bidirectional
	Maximum Supply Current	1.2 μA
	Mounting Type	Surface Mount
	Package Type	SOT-23
	Pin Count	6
	Dimensions	3 x 1.75 x 1.45mm
	Height	1.45mm
	Length	3mm
	Maximum Operating Supply Voltage	5.5 V
	Width	1.75mm
	Maximum Operating Temperature	+105 °C
	Minimum Operating Supply Voltage	1.25 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Silicon Labs
	Power Supply Type Single
	Typical Single Supply Voltage 2 → 25 V
	Number of Channels per Chip 1
	Output Type Bidirectional
	Maximum Supply Current 1.2 μA
	Mounting Type Surface Mount
	Package Type SOT-23
	Pin Count 6
	Dimensions 3 x 1.75 x 1.45mm
	Height 1.45mm
	Length 3mm
	Maximum Operating Supply Voltage 5.5 V
	Width 1.75mm
	Maximum Operating Temperature +105 °C
	Minimum Operating Supply Voltage 1.25 V
	Minimum Operating Temperature -40 °C

TS1101-100EG6 Silicon Labs, Current Sensing Amplifier Single Bidirectional 6-Pin SOT-23

Current Sensing Amplifiers, Silicon Labs
