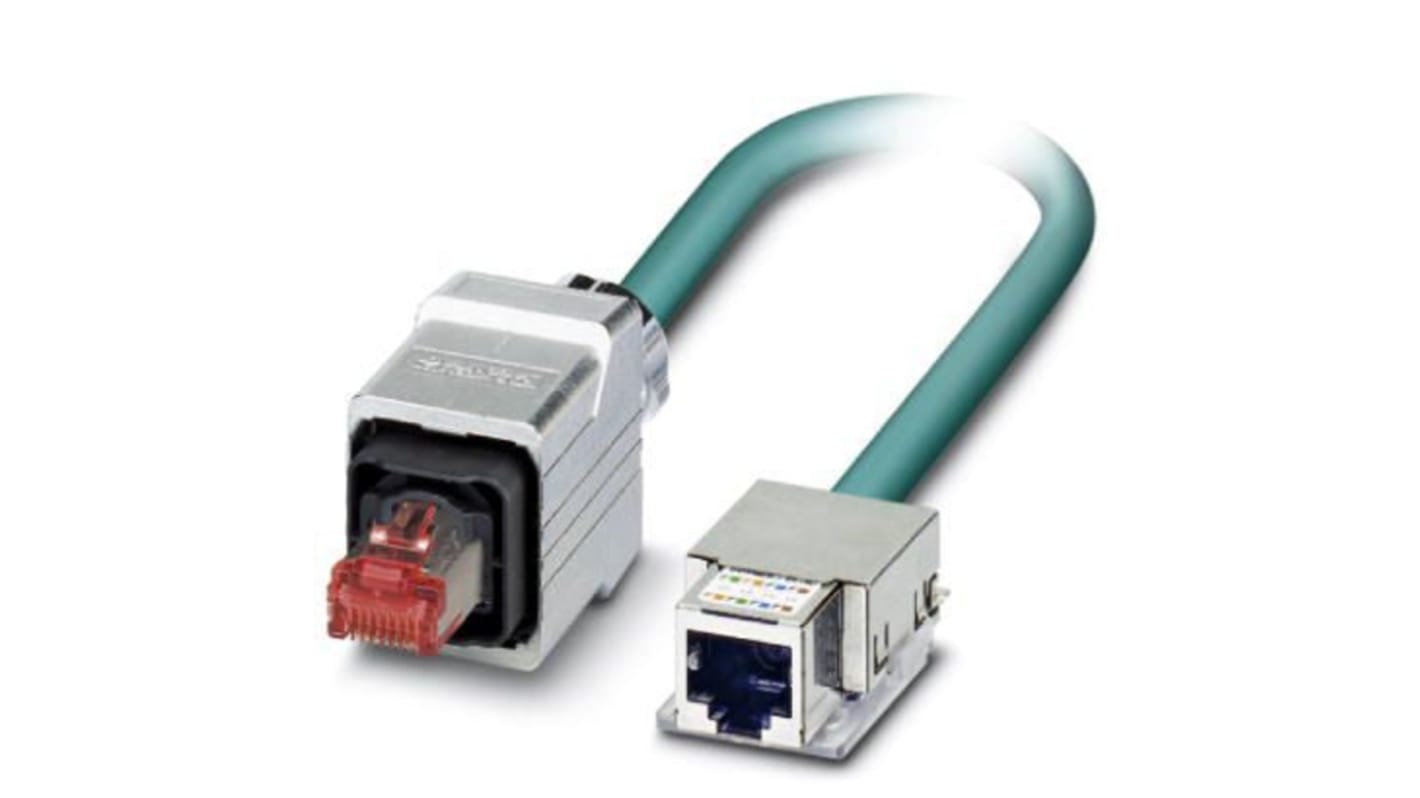

Phoenix Contact VS, 5 m Cat6a Ethernet Cable, Blue, S/FTP 8 Screened Polyurethane Sheath
- RS Stock No.:
- 253-2311
- Mfr. Part No.:
- 1415953
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
€97.08
(exc. VAT)
€119.41
(inc. VAT)
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €97.08 |
*price indicative
- RS Stock No.:
- 253-2311
- Mfr. Part No.:
- 1415953
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | VS | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| LAN Category | Cat6a | |
| Sub Type | Ethernet Cable | |
| Shield Type | S/FTP | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Blue | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Core Strands | 7 | |
| Fire Behaviour | Flammability rating according to UL 94 V2 | |
| Standards/Approvals | Approval ID: 19060508 | |
| Voltage | 100 V | |
| Conductor Material | Bare Copper Wire | |
| Cross Sectional Area | 26 AWG | |
| Outside Diameter | 6.7 mm | |
| Number of Cores | 8 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series VS | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
LAN Category Cat6a | ||
Sub Type Ethernet Cable | ||
Shield Type S/FTP | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Material Polyurethane | ||
Jacket Colour Blue | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Core Strands 7 | ||
Fire Behaviour Flammability rating according to UL 94 V2 | ||
Standards/Approvals Approval ID: 19060508 | ||
Voltage 100 V | ||
Conductor Material Bare Copper Wire | ||
Cross Sectional Area 26 AWG | ||
Outside Diameter 6.7 mm | ||
Number of Cores 8 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact network cable has 8 number of positions. It has straight cable outlet and is shielded. It has push pull metal housing.
Shield Type S/FTP
