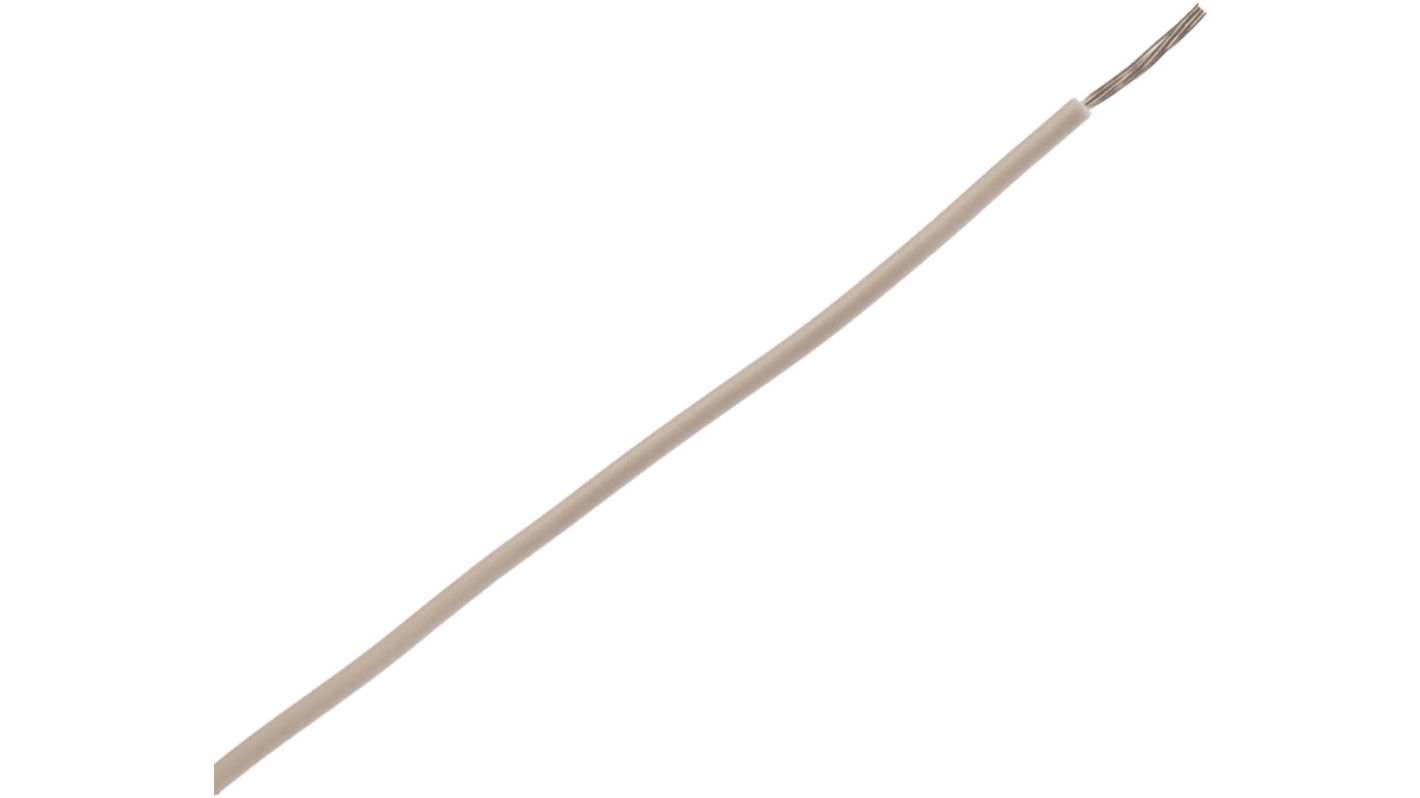

Alpha Wire Hook-up Wire PVC Series White 0.23 mm² Harsh Environment Wire, 24 AWG, 7/0.20 mm, 305m, PVC Insulation, 3050
- RS Stock No.:
- 124-2980
- Distrelec Article No.:
- 300-99-366
- Mfr. Part No.:
- 3050 WH001
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 304 metres)*
€64.22
(exc. VAT)
€78.99
(inc. VAT)
In Stock
- 40 unit(s) ready to ship from another location
- Plus 999,999,959 unit(s) shipping from 03 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €64.22 | €0.211 |
*price indicative
- RS Stock No.:
- 124-2980
- Distrelec Article No.:
- 300-99-366
- Mfr. Part No.:
- 3050 WH001
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.23 mm² | |
| Sheath Colour | White | |
| Cable Shape | Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 7/0.20 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Voltage Rating | 300 V | |
| Outer Diameter | 1.42mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.41mm | |
| Size of Strands | 0.2 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.23 mm² | ||
Sheath Colour White | ||
Cable Shape Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 7/0.20 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 1.42mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.41mm | ||
Size of Strands 0.2 mm | ||
Number of Strands 7 | ||
