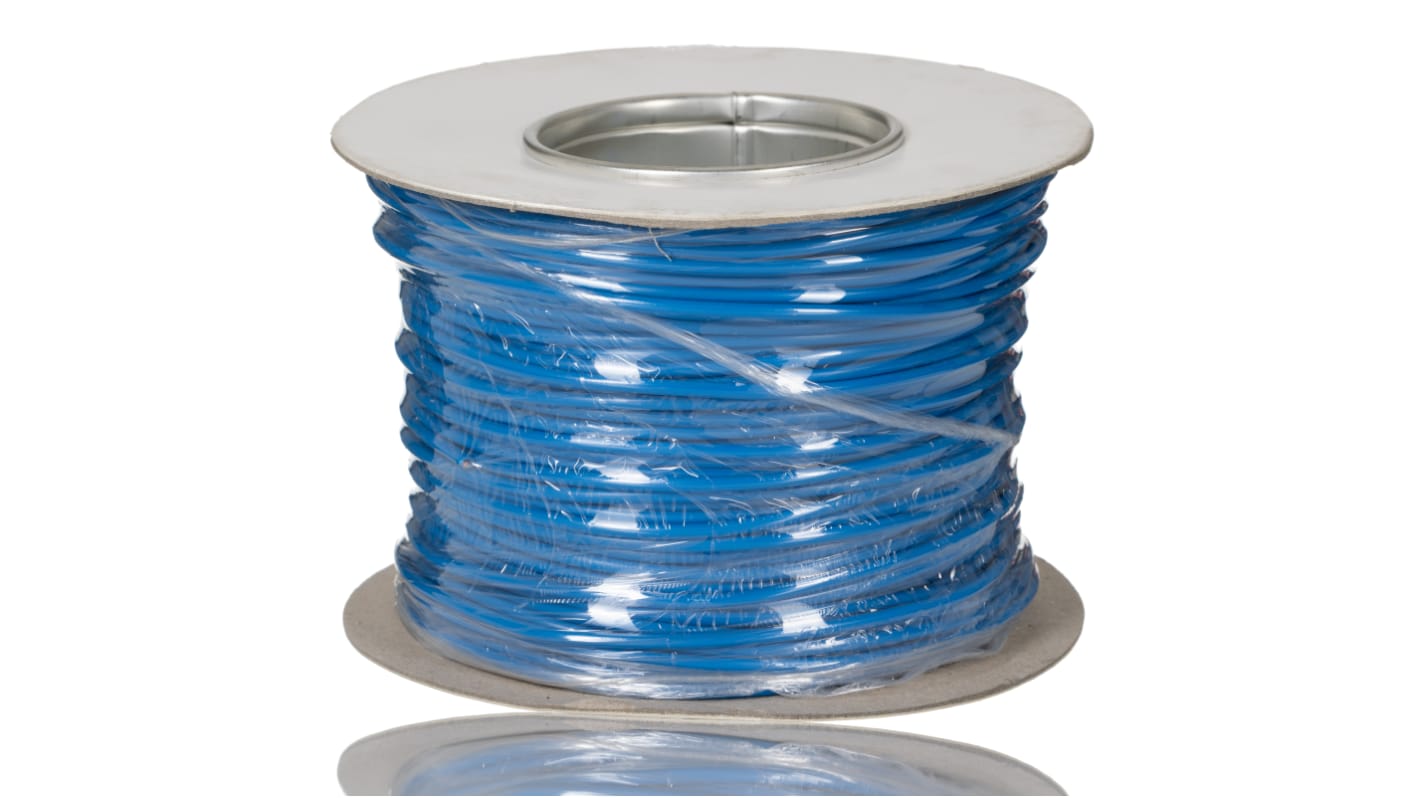

RS PRO Blue 1mm² Hook Up Wire, 18 AWG, 16/0.2mm, 100m, PVC Insulation
- RS Stock No.:
- 256-7021
- Manufacturer:
- RS PRO
Subtotal (1 reel of 100 metres)*
€46.15
(exc. VAT)
€56.76
(inc. VAT)
- 20 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 08 September 2025
- Plus 999,999,959 unit(s) shipping from 10 September 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | €46.15 | €0.462 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 256-7021
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 1mm² | |
Sheath Colour | Blue | |
American Wire Gauge | 18 AWG | |
Cable Shape | Round | |
Core Strands | 16/0.2mm | |
Length | 100m | |
Insulation Material | PVC | |
Outer Diameter | 3mm | |
Voltage Rating | 1 kV dc, 600 V ac | |
Maximum Operating Temperature | 105°C | |
CPR Certification | Eca | |
Minimum Operating Temperature | -20°C | |
Current Rating | 17A | |
Conductor Material | Annealed Copper | |
Cable Type | PVC Wire | |
Standards Met | BS6231 | |
Wire Style | UL1015 | |
Fire Behaviour | BS EN 60332-1-2 Vertical Flame Propagation | |
Series | 1015 | |
Hook Up Wire Type | Low Carbon | |
Better World Claim | Low carbon manufacture | |
Better World Product | Yes | |
Resistant To | Heat and Oil | |
Number of Strands | 16 | |
Size of Strands | mm | |
Outer Sheath Material | PVC | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1mm² | ||
Sheath Colour Blue | ||
American Wire Gauge 18 AWG | ||
Cable Shape Round | ||
Core Strands 16/0.2mm | ||
Length 100m | ||
Insulation Material PVC | ||
Outer Diameter 3mm | ||
Voltage Rating 1 kV dc, 600 V ac | ||
Maximum Operating Temperature 105°C | ||
CPR Certification Eca | ||
Minimum Operating Temperature -20°C | ||
Current Rating 17A | ||
Conductor Material Annealed Copper | ||
Cable Type PVC Wire | ||
Standards Met BS6231 | ||
Wire Style UL1015 | ||
Fire Behaviour BS EN 60332-1-2 Vertical Flame Propagation | ||
Series 1015 | ||
Hook Up Wire Type Low Carbon | ||
Better World Claim Low carbon manufacture | ||
Better World Product Yes | ||
Resistant To Heat and Oil | ||
Number of Strands 16 | ||
Size of Strands mm | ||
Outer Sheath Material PVC | ||
