RS PRO Circular Connector, 2 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

RS Stock No.:: 124-6743
Manufacturer:: RS PRO

RS PRO Circular Connector, 2 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

Bulk discount available

Subtotal (1 unit)*

€25.58

(exc. VAT)

€31.46

(inc. VAT)

In Stock

13 unit(s) ready to ship from another location
Plus 80 unit(s) shipping from 21 July 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	€25.58
10 - 49	€24.30
50 - 99	€23.00
100 +	€21.75

*price indicative

RS Stock No.:: 124-6743
Manufacturer:: RS PRO

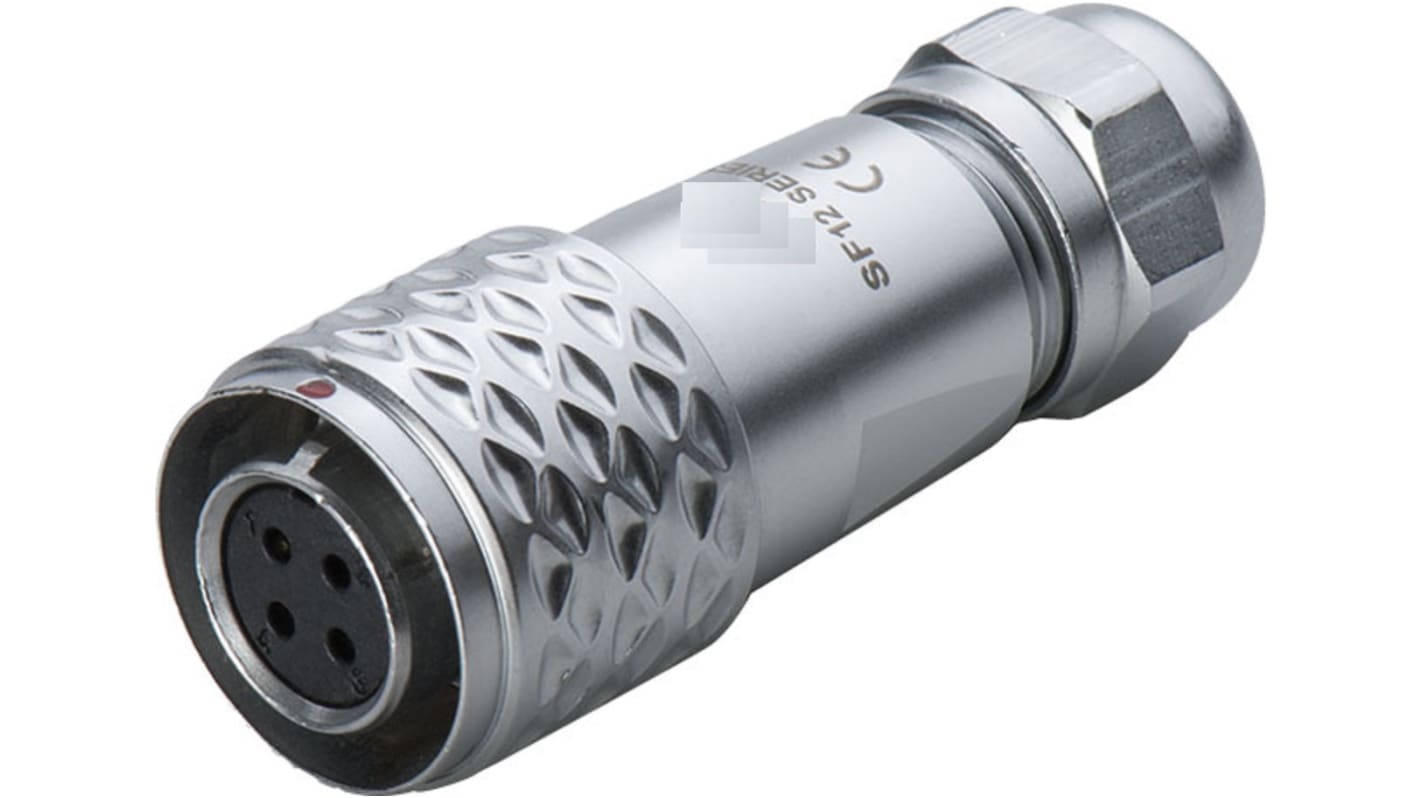

M12 Push-Pull Cable Plug

DISCLAIMER: We have recently made a design change to the grip feature of this product and there will be a period of time where you may receive mixed stock. This will not affect the product performance.

From the trusted RS PRO brand, a selection of cable mount plugs designed for industrial applications. The IP67 connectors feature a push-pull mating mechanism providing a secure, watertight connection. With a knurled locking collar the cable mount plugs are easily mated and retained with panel sockets for semi-fixed applications. Alternatively, cable plugs can be mated with in-line cable sockets for cable to cable, quick connect and disconnect assemblies. The versatile RS PRO 12mm connectors can be used for both data and power connectivity.

Features and Benefits

• IP67 ingress rating
• Brass shell with a chrome plating
• High-performance PPS insert
• Gold plated brass contacts
• Solder termination
• -40 to + 85°C temperature range
• 12 mm panel cut out
• 4 to 6.5 mm or 4 to 8 mm cable acceptance range

Applications

The RS PRO series of 12mm cable plugs are generally used in industrial applications. The sturdy connectors are ideal for harsher environments that demand a tougher connection solution. Some of the most common areas are

• Test and measurement equipment
• Medical equipment
• Industrial automation
• Instrumentation and lab equipment
• Process control
• Factory Automation
• Marine equipment
• Sensors and switches

Environment

The RS PRO 12mm Push-Pull series of connectors are waterproof and have an IP67 ingress rating. This means the connectors are fully sealed from dust and are protected from water jets and partial submersion for a limited time.

FAQ

Q - How robust are the connectors?
A – The RS Components 12mm circular connectors are manufactured from high-grade engineering materials. The plugs are extremely tough and specifically designed for harsh environments

Mating Parts

124-6739 mates with socket 124-6709
124-6740 mates with sockets 124-6697 124-6706 or 124-6710
124-6741 mates with sockets 124-6698 124-6707 or 124-6711
124-6742 mates with sockets 124-6708 or 124-6712
124-6743 mates with socket 124-6700
124-6744 mates with socket 124-6701
124-6745 mates with socket 124-6703
124-6746 mates with socket 124-6704

RS Pro Push-Pull

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	2
	Mounting Type	Cable Mount
	Connector Size	M12
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Solder
	IP Rating	IP67
	Current Rating	13A
	Body Orientation	Straight
	Series	SF12
	Voltage Rating	250V
	Mating Type	Push-Pull
	Housing Material	Chrome Plated Brass
	Pole Format	2P
	Contact Plating	Gold
	Maximum Operating Temperature	85°C
	Contact Material	Brass
	Minimum Operating Temperature	-40°C
	Outer Diameter	5→8mm

	Select all
	Brand RS PRO
	Number of Contacts 2
	Mounting Type Cable Mount
	Connector Size M12
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Solder
	IP Rating IP67
	Current Rating 13A
	Body Orientation Straight
	Series SF12
	Voltage Rating 250V
	Mating Type Push-Pull
	Housing Material Chrome Plated Brass
	Pole Format 2P
	Contact Plating Gold
	Maximum Operating Temperature 85°C
	Contact Material Brass
	Minimum Operating Temperature -40°C
	Outer Diameter 5→8mm
