Select all	Attribute	Value
	Brand	RS PRO
	Actuator Type	Roller Lever
	Pole and Throw Configuration	DPST
	Normal State Configuration	NO/NC
	IP Rating	IP66
	Maximum Current	10A
	Housing Material	Zinc Alloy
	Maximum AC Voltage	400V
	Maximum DC Voltage	250V
	Connection Type	Cable
	Action Type	Snap Action
	Length	30.3mm
	Depth	32.5mm
	Width	124mm
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-25°C
	Mounting Orientation	Vertical
	Operating Force	0.1 N
	Mechanical Life	15000000Operations

	Select all
	Brand RS PRO
	Actuator Type Roller Lever
	Pole and Throw Configuration DPST
	Normal State Configuration NO/NC
	IP Rating IP66
	Maximum Current 10A
	Housing Material Zinc Alloy
	Maximum AC Voltage 400V
	Maximum DC Voltage 250V
	Connection Type Cable
	Action Type Snap Action
	Length 30.3mm
	Depth 32.5mm
	Width 124mm
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -25°C
	Mounting Orientation Vertical
	Operating Force 0.1 N
	Mechanical Life 15000000Operations

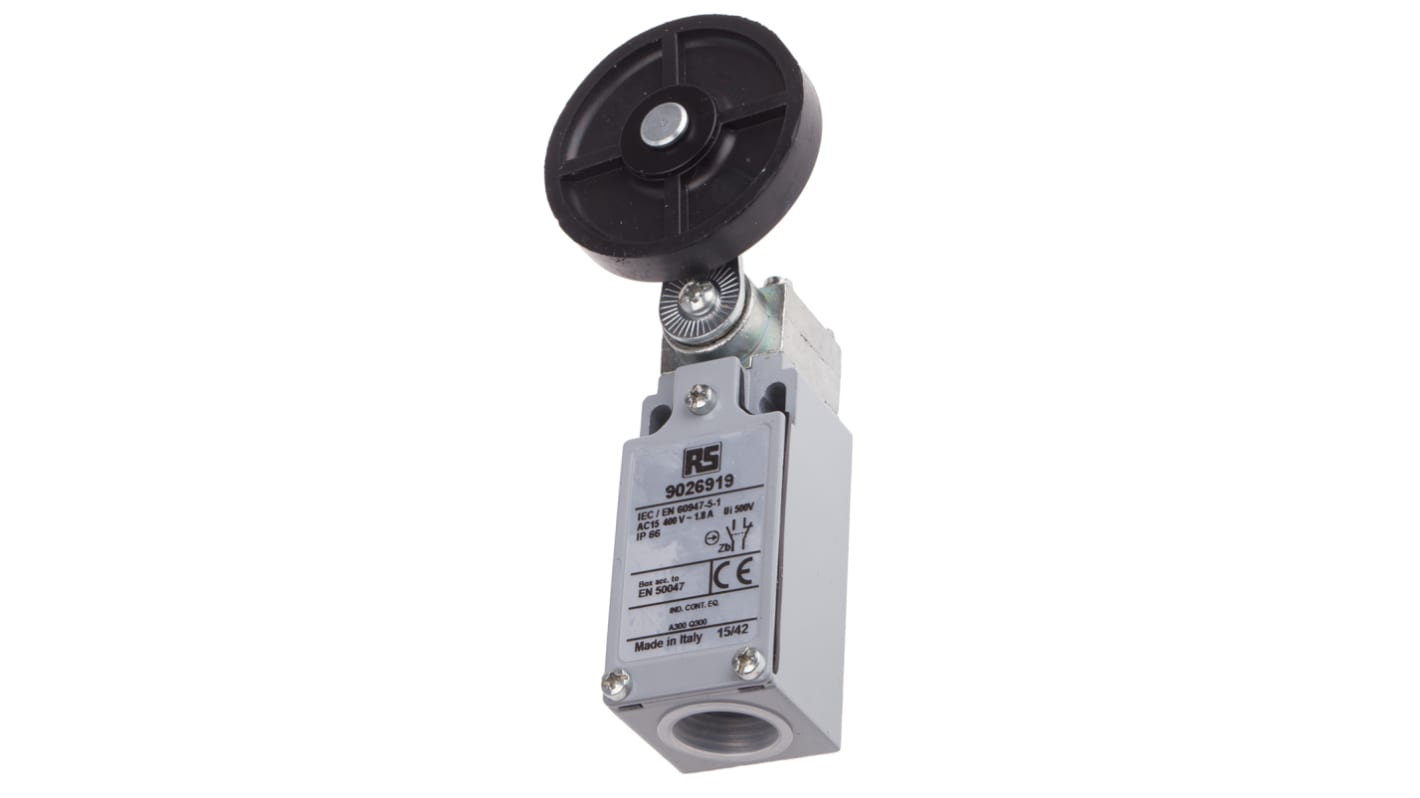

RS PRO Roller Lever Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

RS PRO Snap Action Limit Switch, Zinc Alloy, NO/NC, Roller Lever, 400 V, IP66

Features and Benefits

Related links
