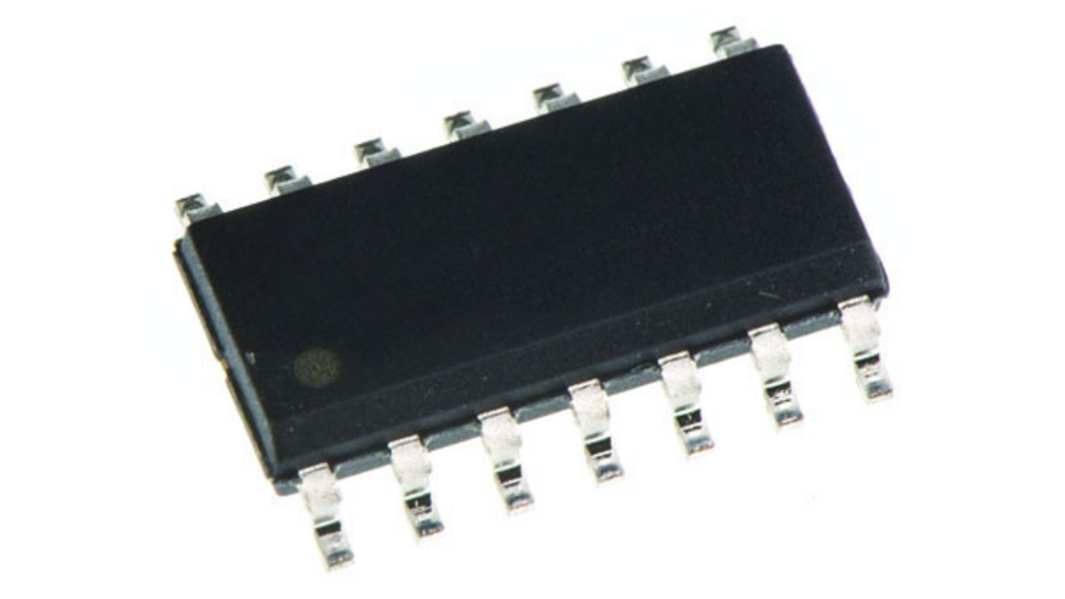

    Texas Instruments SN74LV08AD, Quad 2-Input AND Logic Gate, 14-Pin SOIC

    Subtotal (1 tube of 50 units)**

    €14.25

    (exc. VAT)

    €17.55

    (inc. VAT)

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch when stock is available*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Tube**
    50 +€0.285€14.25

    **price indicative

    Alternative

    This product is not currently available. Here is our alternative recommendation.

    presentation
    Nexperia 74LV08D,112, Quad 2-Input AND Logic Gate, 14-Pin SOIC
    RS Stock No.
    791-8800

    Each (In a Pack of 38)

    €0.368

    (exc. VAT)

    €0.453

    (inc. VAT)

    RS Stock No.:
    179-2183
    Mfr. Part No.:
    SN74LV08AD
    Manufacturer:
    Texas Instruments
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Texas Instruments

    Logic Function

    AND

    Mounting Type

    Surface Mount

    Number of Elements

    4

    Number of Inputs per Gate

    2

    Schmitt Trigger Input

    No

    Package Type

    SOIC

    Pin Count

    14

    Logic Family

    LV

    Maximum Operating Supply Voltage

    5.5 V

    Maximum High Level Output Current

    -12mA

    Maximum Propagation Delay Time @ Maximum CL

    12.3 ns @ 3.3 V, 17.3 ns @ 2.5 V, 7.9 ns @ 5 V

    Minimum Operating Supply Voltage

    2 V

    Maximum Low Level Output Current

    12mA

    Width

    3.91mm

    Height

    1.58mm

    Propagation Delay Test Condition

    50pF

    Maximum Operating Temperature

    +85 °C

    Minimum Operating Temperature

    -40 °C

    Dimensions

    8.65 x 3.91 x 1.58mm

    Length

    8.65mm
