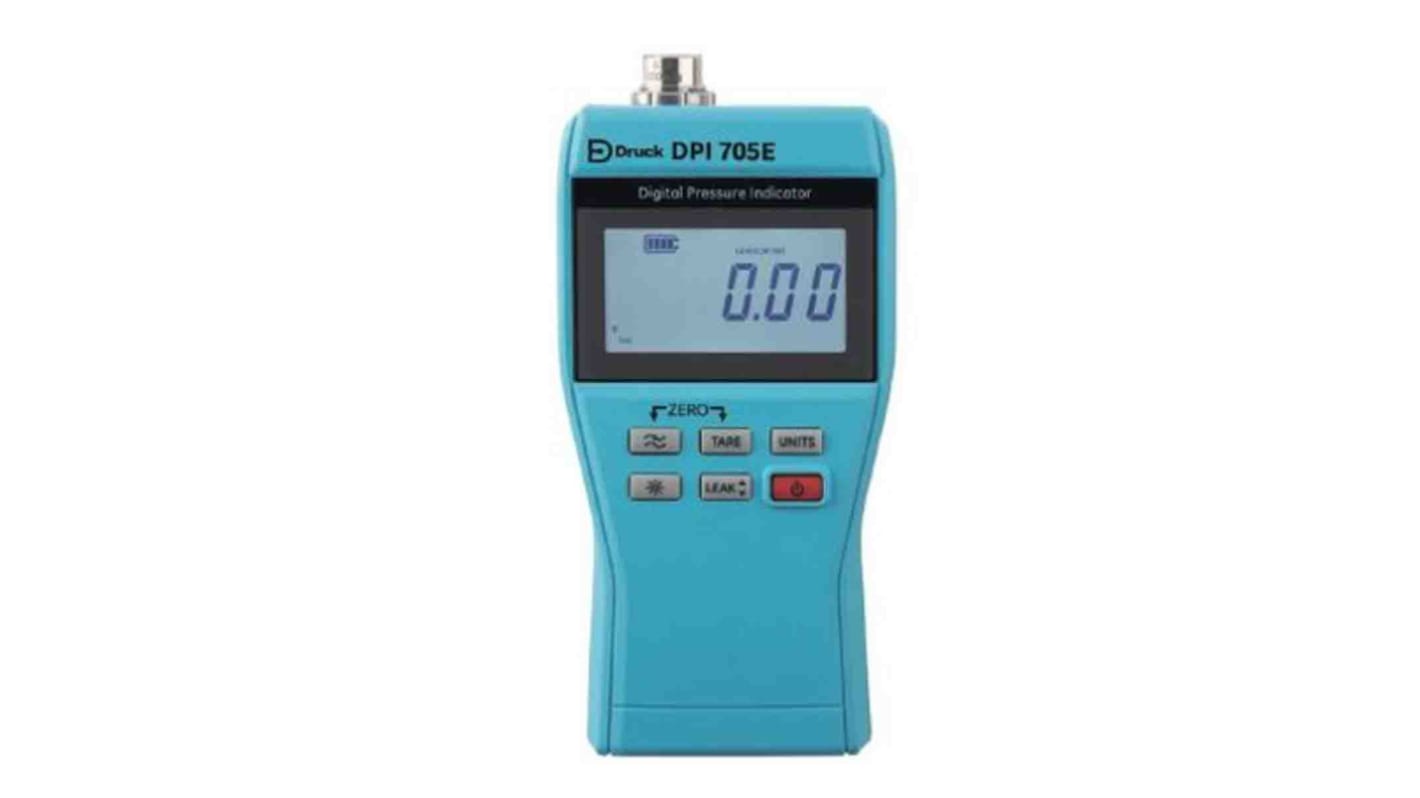

Druck DPI705E G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 20 bar, RSCAL
- RS Stock No.:
- 201-3001
- Mfr. Part No.:
- DPI705E-2-13G-P1-H0-U0-OP0
- Manufacturer:
- Druck
Subtotal (1 unit)*
€913.07
(exc. VAT)
€1,123.08
(inc. VAT)
In Stock
- 15 unit(s) ready to ship
- Plus 12 unit(s) shipping from 25 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €913.07 |
*price indicative
- RS Stock No.:
- 201-3001
- Mfr. Part No.:
- DPI705E-2-13G-P1-H0-U0-OP0
- Manufacturer:
- Druck
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Product Type | Manometer | |
| Accuracy | ±0.05 % | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 20bar | |
| Minimum Pressure Measurement | -25mbar | |
| Pressure Port Type | G1/8 | |
| Leak Testing | Yes | |
| Minimum/Maximum Recordings | Yes | |
| Model Number | DPI705E | |
| Intrinsically Safe | No | |
| Power Source | 4 x AA | |
| IP Rating | IP54 | |
| Battery Type | AA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Overpressure | 1400bar | |
| Display Type | LCD Backlight | |
| Battery Life | 1year | |
| Maximum Operating Temperature | 50°C | |
| Width | 95mm | |
| Length | 200mm | |
| Height | 43mm | |
| Standards/Approvals | CE, RCM, RoHS, UL 61010-1 | |
| Hazardous Area Certification | No | |
| Weight | 563g | |
| Calibrated | RSCAL | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Product Type Manometer | ||
Accuracy ±0.05 % | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 20bar | ||
Minimum Pressure Measurement -25mbar | ||
Pressure Port Type G1/8 | ||
Leak Testing Yes | ||
Minimum/Maximum Recordings Yes | ||
Model Number DPI705E | ||
Intrinsically Safe No | ||
Power Source 4 x AA | ||
IP Rating IP54 | ||
Battery Type AA | ||
Minimum Operating Temperature -10°C | ||
Maximum Overpressure 1400bar | ||
Display Type LCD Backlight | ||
Battery Life 1year | ||
Maximum Operating Temperature 50°C | ||
Width 95mm | ||
Length 200mm | ||
Height 43mm | ||
Standards/Approvals CE, RCM, RoHS, UL 61010-1 | ||
Hazardous Area Certification No | ||
Weight 563g | ||
Calibrated RSCAL | ||
- COO (Country of Origin):
- GB
Druck Manometer, 20 bar Maximum Pressure, LCD Backlight Display - DPI705E-2-13G-P1-H0-U0-OP0
This manometer is a handheld instrument designed to measure positive and negative pressures across industrial environments. It provides clear on-screen readings via an LCD backlight and operates across a practical temperature range for site and workshop use. The unit is powered by standard AA cells and includes protection against high overpressure scenarios to support routine diagnostic and test activities.
Features and Benefits:
• ±0.05% accuracy for precise pressure measurement
• 20 bar maximum measurement for mid-range system testing
• -25 mbar minimum reading for negative pressure detection
• 1400 bar overpressure protection for enhanced safety
• IP54 ingress protection for dust and splash resistance
• 20 bar maximum measurement for mid-range system testing
• -25 mbar minimum reading for negative pressure detection
• 1400 bar overpressure protection for enhanced safety
• IP54 ingress protection for dust and splash resistance
Applications
• Suitable for leak testing of pressurised assemblies
• Ideal for commissioning HVAC and pneumatic systems
• Used with portable test rigs on site
• Can be used for laboratory bench pressure checks
• Ideal for commissioning HVAC and pneumatic systems
• Used with portable test rigs on site
• Can be used for laboratory bench pressure checks
What power arrangement does it use for mobile work?
It runs on four AA batteries which provide approximately one year of operational life under typical use.
Which connection type is provided for test rigs?
A single G1/8 pressure port is fitted to Interface with standard test fittings.
How does it perform in varying ambient temperatures?
It remains operational from -10°C up to 50°C to match common field conditions.
Are there certifications related to material and safety standards?
The instrument complies with CE, RCM and RoHS and meets UL 61010-1 requirements.
