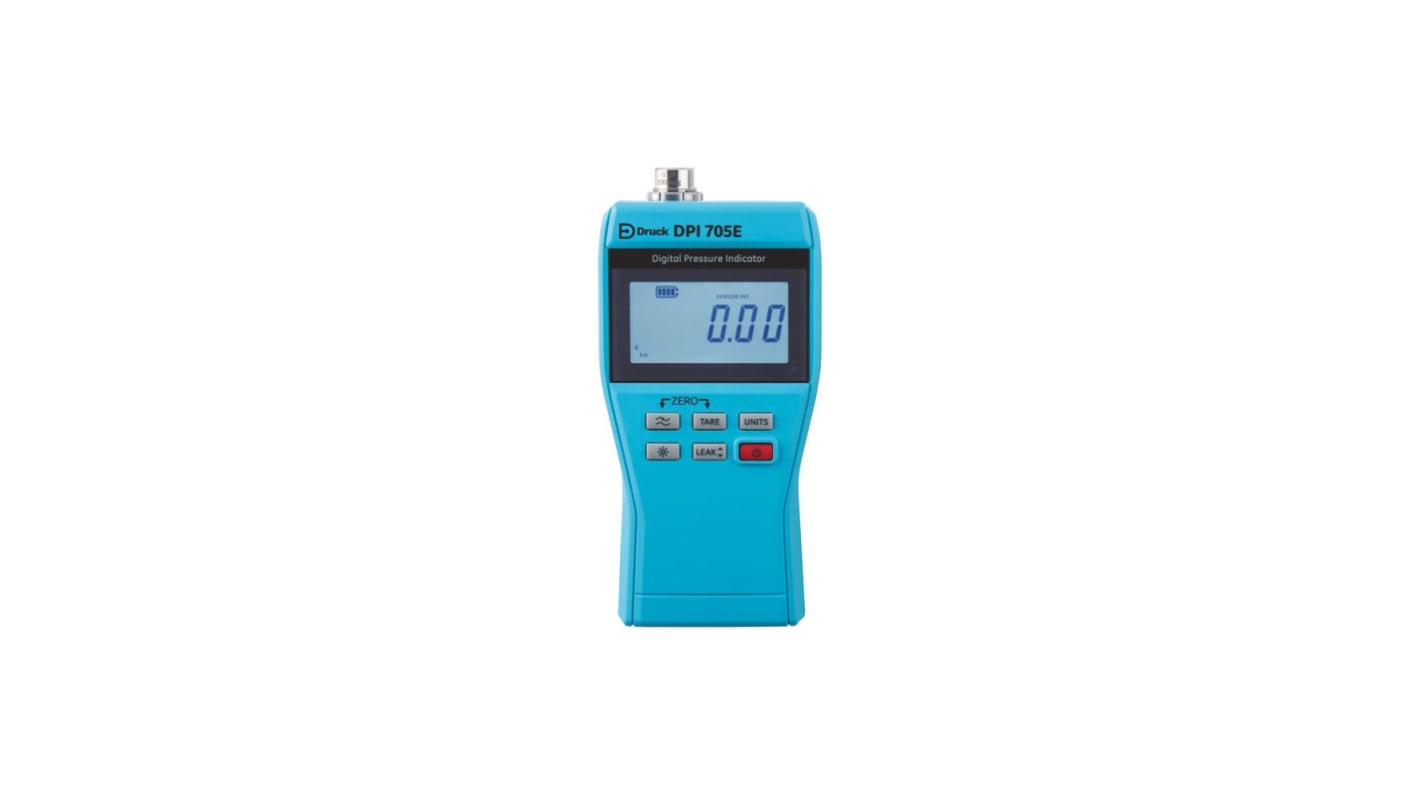

Druck DPI705E G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 1400 bar, RSCAL

RS Stock No.:: 261-4561
Mfr. Part No.:: DPI705E-2-10A-P1-H0-U0-OP0
Manufacturer:: Druck

Druck DPI705E G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 1400 bar, RSCAL

Subtotal (1 unit)*

€913.07

(exc. VAT)

€1,123.08

(inc. VAT)

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€913.07

*price indicative

RS Stock No.:: 261-4561
Mfr. Part No.:: DPI705E-2-10A-P1-H0-U0-OP0
Manufacturer:: Druck

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Product Type	Manometer
	Accuracy	±0.05 %
	Number of Pressure Ports	1
	Maximum Pressure Measurement	1400bar
	Minimum Pressure Measurement	-25mbar
	Pressure Port Type	G1/8
	Leak Testing	Yes
	Minimum/Maximum Recordings	Yes
	Model Number	DPI705E
	Intrinsically Safe	No
	Power Source	4 x AA
	IP Rating	IP54
	Maximum Overpressure	1400bar
	Battery Type	AA
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Battery Life	1year
	Display Type	LCD
	Standards/Approvals	CE, RCM, RoHS, UL 61010-1
	Height	43mm
	Width	95mm
	Length	200mm
	Hazardous Area Certification	No
	Weight	563g
	Calibrated	RSCAL

	Select all
	Brand Druck
	Product Type Manometer
	Accuracy ±0.05 %
	Number of Pressure Ports 1
	Maximum Pressure Measurement 1400bar
	Minimum Pressure Measurement -25mbar
	Pressure Port Type G1/8
	Leak Testing Yes
	Minimum/Maximum Recordings Yes
	Model Number DPI705E
	Intrinsically Safe No
	Power Source 4 x AA
	IP Rating IP54
	Maximum Overpressure 1400bar
	Battery Type AA
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Battery Life 1year
	Display Type LCD
	Standards/Approvals CE, RCM, RoHS, UL 61010-1
	Height 43mm
	Width 95mm
	Length 200mm
	Hazardous Area Certification No
	Weight 563g
	Calibrated RSCAL

Datasheet - DPI705E-2-10A-P1-H0-U0-OP0

COO (Country of Origin):: GB

Druck Manometer, -25m bar Minimum Pressure, 1400 bar Maximum Pressure - DPI705E-2-10A-P1-H0-U0-OP0

This manometer is a portable pressure instrument designed to measure gases and liquids across a very wide range, from low differential readings through to very high pressures. It operates from cold to warm working conditions and uses battery power for field use, providing a clear Visual readout for diagnostic and commissioning tasks. The instrument is constructed to withstand typical industrial environments while supporting leak detection and recording of minimum and maximum values.

Features and Benefits:

• ±0.05% accuracy delivers precise measurement results
• 1400 bar overpressure capacity enables high-pressure diagnostics
• IP54 ingress protection allows use in dusty or damp areas
• G1/8 pressure port offers standardised connection compatibility
• 4 x AA battery supply provides portable operation

Applications

• Suitable for high-pressure hydraulic system verification
• Used for HVAC leak detection and pressure checks
• Ideal for portable field pressure calibration tasks
• Can be used for laboratory pressure range testing
• Used with pneumatic systems for low-pressure diagnostics

What temperature range can it operate within?

It functions between -10°C and 50°C.

How long will the batteries typically last in normal use?

The battery life is rated at around 1 year under standard operating conditions.

What display type does it use for readings?

Readings are presented on an LCD display.

How many pressure ports are provided for connection?

It includes a single pressure port.

Does it include hazardous-area or intrinsic safety certification?

It does not have hazardous-area or intrinsically safe certification.
