Select all	Attribute	Value
	Brand	onsemi
	Channel Type	N
	Maximum Continuous Drain Current	79 A
	Maximum Drain Source Voltage	150 V
	Series	PowerTrench
	Package Type	D2PAK (TO-263)
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	48 mΩ
	Channel Mode	Enhancement
	Minimum Gate Threshold Voltage	2V
	Maximum Power Dissipation	310 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-20 V, +20 V
	Width	11.33mm
	Transistor Material	Si
	Number of Elements per Chip	1
	Typical Gate Charge @ Vgs	82 nC @ 10 V
	Maximum Operating Temperature	+175 °C
	Length	10.67mm
	Minimum Operating Temperature	-55 °C
	Height	4.83mm

	Select all
	Brand onsemi
	Channel Type N
	Maximum Continuous Drain Current 79 A
	Maximum Drain Source Voltage 150 V
	Series PowerTrench
	Package Type D2PAK (TO-263)
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 48 mΩ
	Channel Mode Enhancement
	Minimum Gate Threshold Voltage 2V
	Maximum Power Dissipation 310 W
	Transistor Configuration Single
	Maximum Gate Source Voltage -20 V, +20 V
	Width 11.33mm
	Transistor Material Si
	Number of Elements per Chip 1
	Typical Gate Charge @ Vgs 82 nC @ 10 V
	Maximum Operating Temperature +175 °C
	Length 10.67mm
	Minimum Operating Temperature -55 °C
	Height 4.83mm

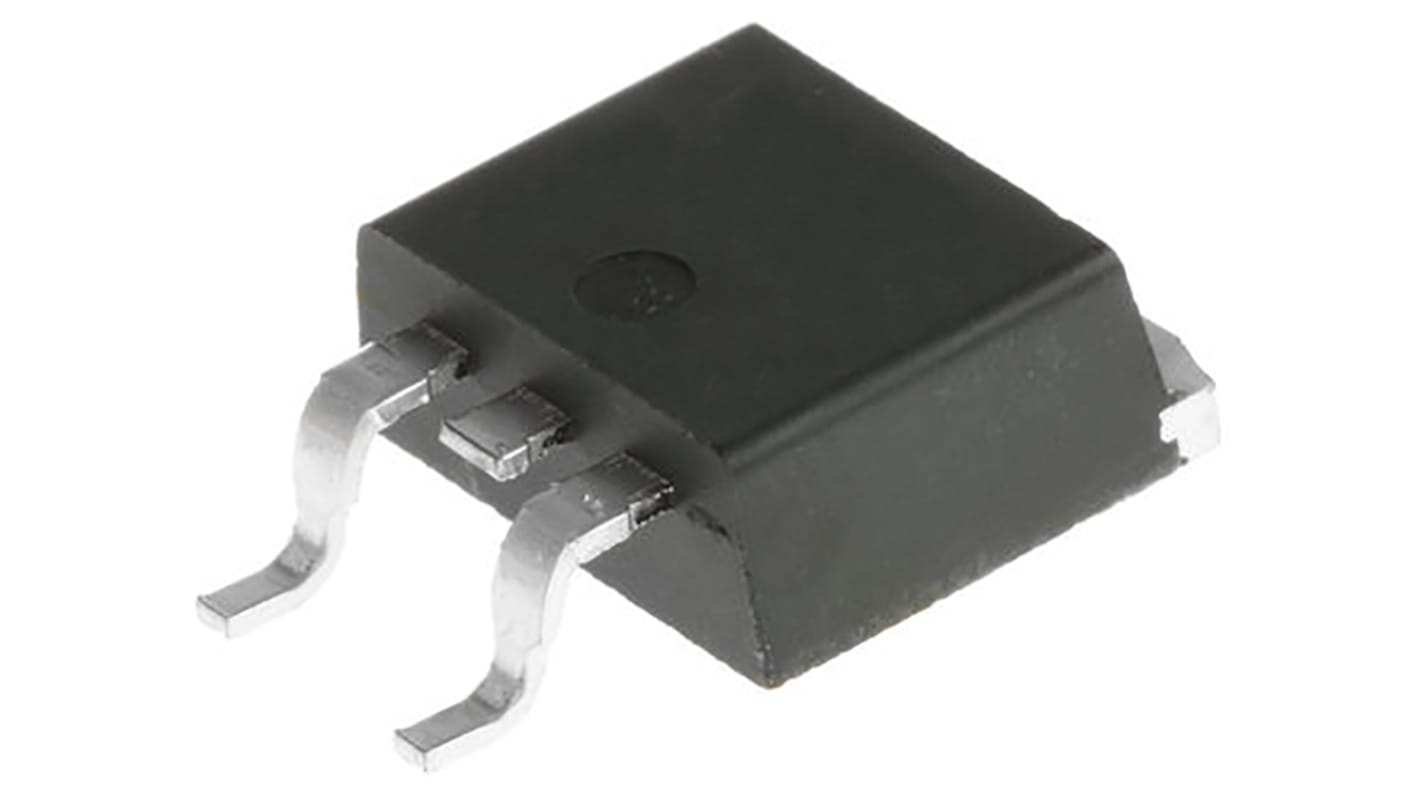

onsemi PowerTrench N-Channel MOSFET, 79 A, 150 V, 3-Pin D2PAK FDB2532

Automotive N-Channel MOSFET, Fairchild Semiconductor
