Units	Per unit	Per Pack**
5 - 45	€2.34	€11.70
50 - 95	€2.016	€10.08
100 - 495	€1.75	€8.75
500 +	€1.538	€7.69

Select all	Attribute	Value
	Brand	onsemi
	Channel Type	P
	Maximum Continuous Drain Current	27 A
	Maximum Drain Source Voltage	60 V
	Package Type	D2PAK (TO-263)
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	70 mΩ
	Channel Mode	Enhancement
	Minimum Gate Threshold Voltage	2V
	Maximum Power Dissipation	3.75 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-25 V, +25 V
	Typical Gate Charge @ Vgs	33 nC @ 10 V
	Number of Elements per Chip	1
	Length	10.67mm
	Transistor Material	Si
	Width	9.65mm
	Maximum Operating Temperature	+175 °C
	Minimum Operating Temperature	-55 °C
	Height	4.83mm

	Select all
	Brand onsemi
	Channel Type P
	Maximum Continuous Drain Current 27 A
	Maximum Drain Source Voltage 60 V
	Package Type D2PAK (TO-263)
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 70 mΩ
	Channel Mode Enhancement
	Minimum Gate Threshold Voltage 2V
	Maximum Power Dissipation 3.75 W
	Transistor Configuration Single
	Maximum Gate Source Voltage -25 V, +25 V
	Typical Gate Charge @ Vgs 33 nC @ 10 V
	Number of Elements per Chip 1
	Length 10.67mm
	Transistor Material Si
	Width 9.65mm
	Maximum Operating Temperature +175 °C
	Minimum Operating Temperature -55 °C
	Height 4.83mm

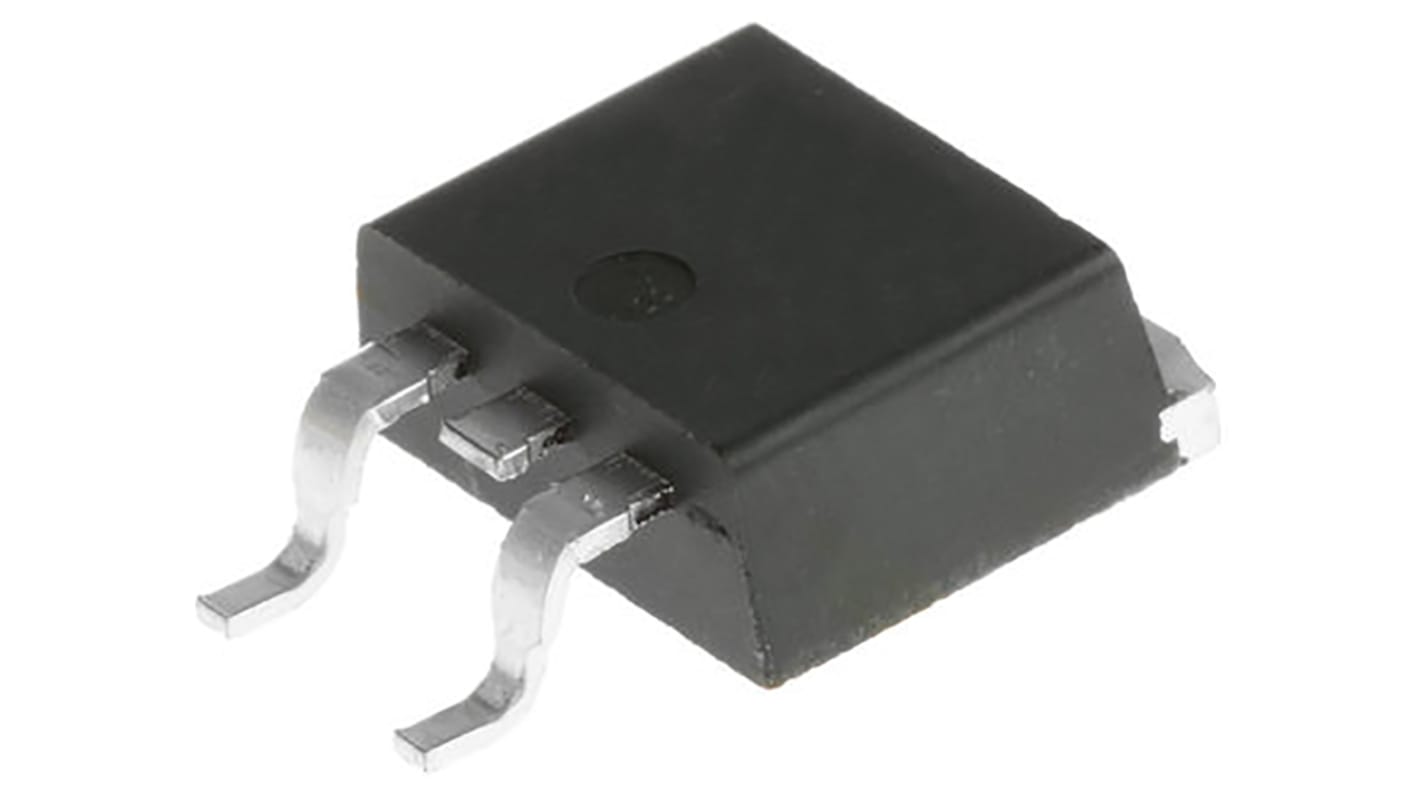

onsemi P-Channel MOSFET, 27 A, 60 V, 3-Pin D2PAK FQB27P06TM

Enhancement Mode P-Channel MOSFET, ON Semiconductor

Features and Benefits:

Applications:
