Units	Per unit	Per Pack**
5 - 45	€0.734	€3.67
50 - 95	€0.632	€3.16
100 - 495	€0.548	€2.74
500 - 995	€0.482	€2.41
1000 +	€0.438	€2.19

Select all	Attribute	Value
	Brand	onsemi
	Channel Type	P
	Maximum Continuous Drain Current	5.4 A
	Maximum Drain Source Voltage	60 V
	Package Type	DPAK (TO-252)
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	451 mΩ
	Channel Mode	Enhancement
	Minimum Gate Threshold Voltage	2V
	Maximum Power Dissipation	2.5 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-25 V, +25 V
	Width	6.22mm
	Maximum Operating Temperature	+150 °C
	Length	6.73mm
	Number of Elements per Chip	1
	Transistor Material	Si
	Typical Gate Charge @ Vgs	6.3 nC @ 10 V
	Minimum Operating Temperature	-55 °C
	Height	2.39mm

	Select all
	Brand onsemi
	Channel Type P
	Maximum Continuous Drain Current 5.4 A
	Maximum Drain Source Voltage 60 V
	Package Type DPAK (TO-252)
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 451 mΩ
	Channel Mode Enhancement
	Minimum Gate Threshold Voltage 2V
	Maximum Power Dissipation 2.5 W
	Transistor Configuration Single
	Maximum Gate Source Voltage -25 V, +25 V
	Width 6.22mm
	Maximum Operating Temperature +150 °C
	Length 6.73mm
	Number of Elements per Chip 1
	Transistor Material Si
	Typical Gate Charge @ Vgs 6.3 nC @ 10 V
	Minimum Operating Temperature -55 °C
	Height 2.39mm

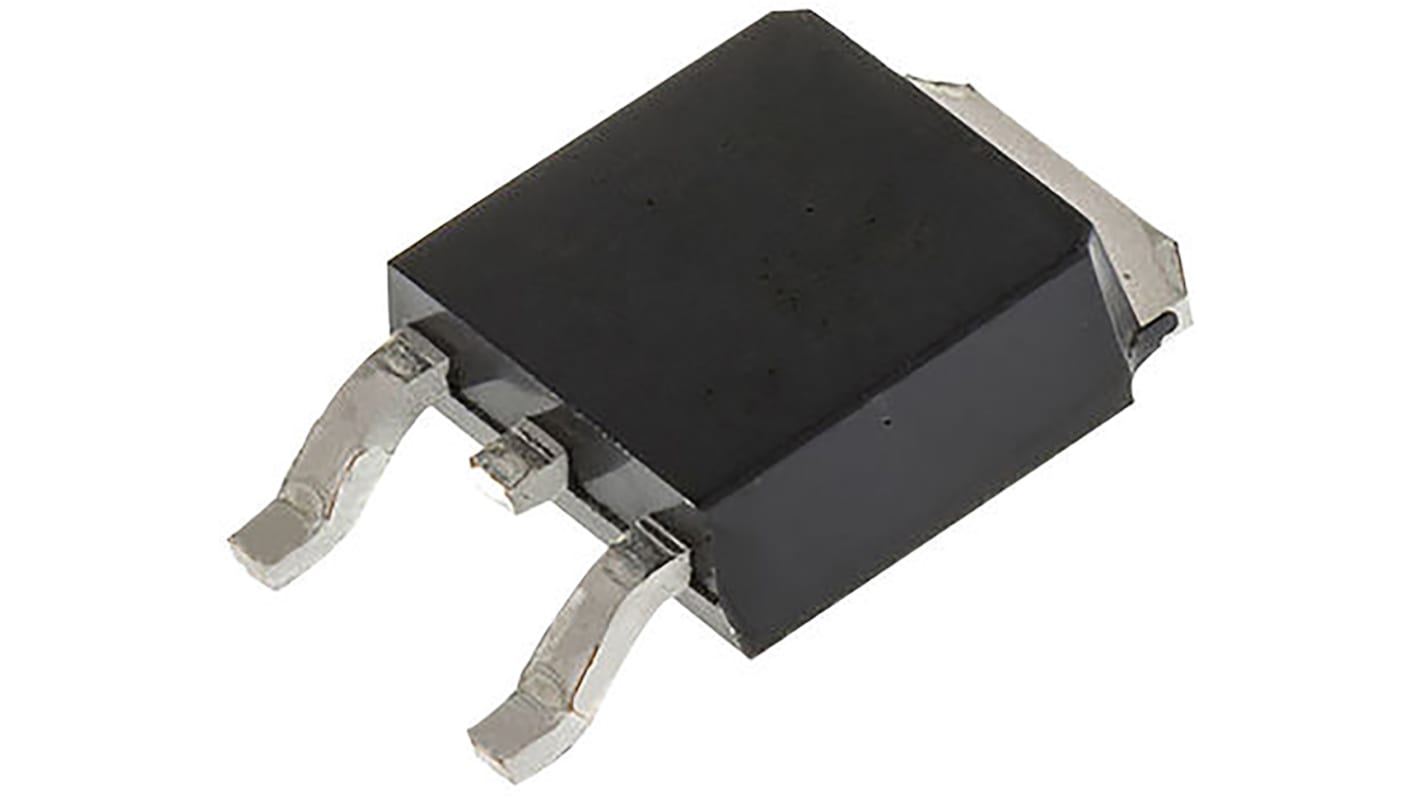

onsemi P-Channel MOSFET, 5.4 A, 60 V, 3-Pin DPAK FQD7P06TM

Enhancement Mode P-Channel MOSFET, ON Semiconductor

Features and Benefits:

Applications:
