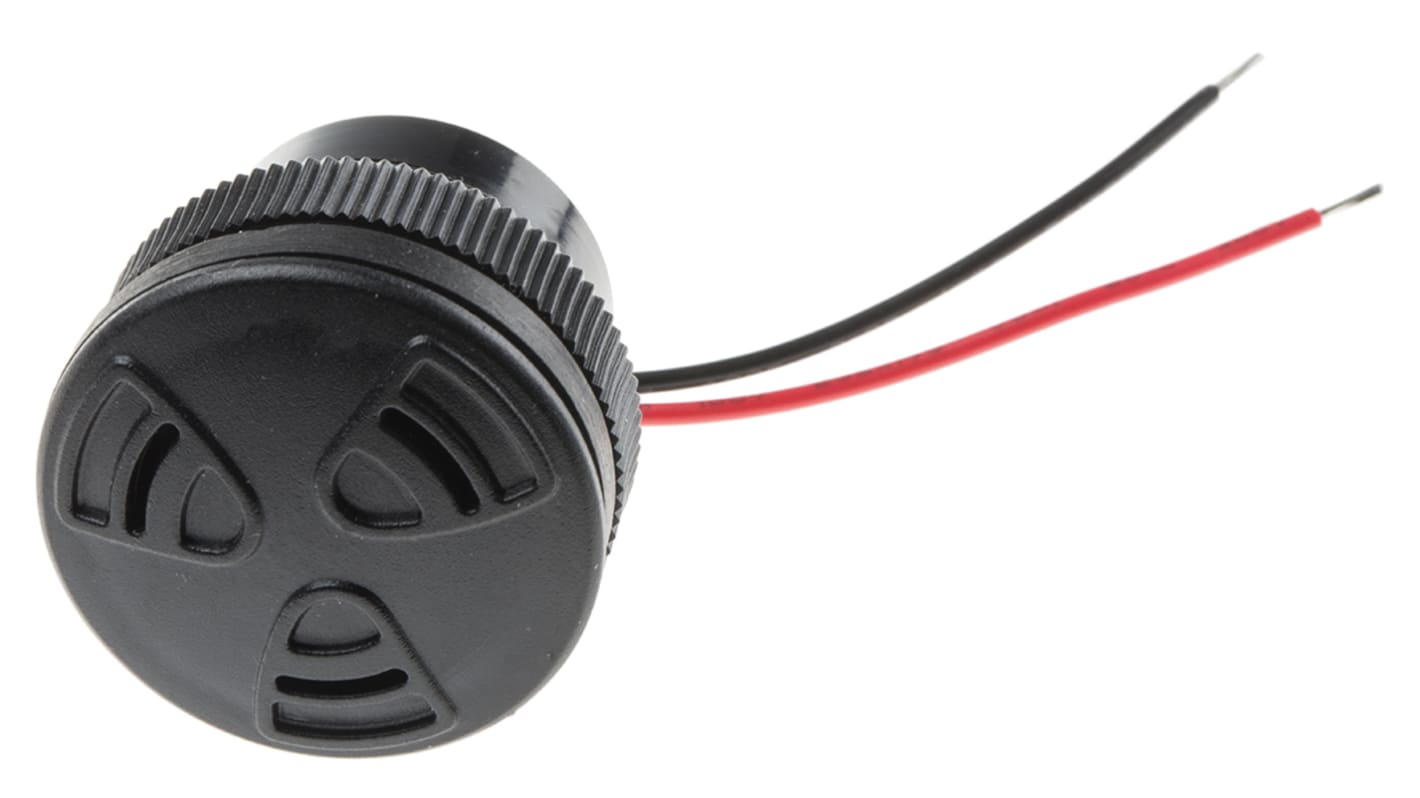

RS PRO 100dB Wire Leads Continuous Internal Magnetic Buzzer Component, 33 x 28.9mm, 5V dc Min, 25V dc Max
- RS Stock No.:
- 837-7869
- Distrelec Article No.:
- 304-19-868
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
€15.96
(exc. VAT)
€19.63
(inc. VAT)
In Stock
- 154 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 27 August 2025
- Plus 108 unit(s) shipping from 24 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | €15.96 |
5 - 9 | €15.31 |
10 - 24 | €14.52 |
25 - 49 | €13.73 |
50 + | €12.61 |
*price indicative
- RS Stock No.:
- 837-7869
- Distrelec Article No.:
- 304-19-868
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Mounting Type | Wire Leads | |
Minimum Supply Voltage | 5V dc | |
Maximum Supply Voltage | 25V dc | |
Sound Level | 100dB | |
Drive Type | Internal | |
Tone Type | Continuous | |
Diameter | 33mm | |
Height | 28.9mm | |
Dimensions | 33 x 28.9mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +65°C | |
Maximum Frequency | 3.4kHz | |
Supply Current | 25mA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Mounting Type Wire Leads | ||
Minimum Supply Voltage 5V dc | ||
Maximum Supply Voltage 25V dc | ||
Sound Level 100dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 33mm | ||
Height 28.9mm | ||
Dimensions 33 x 28.9mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +65°C | ||
Maximum Frequency 3.4kHz | ||
Supply Current 25mA | ||
