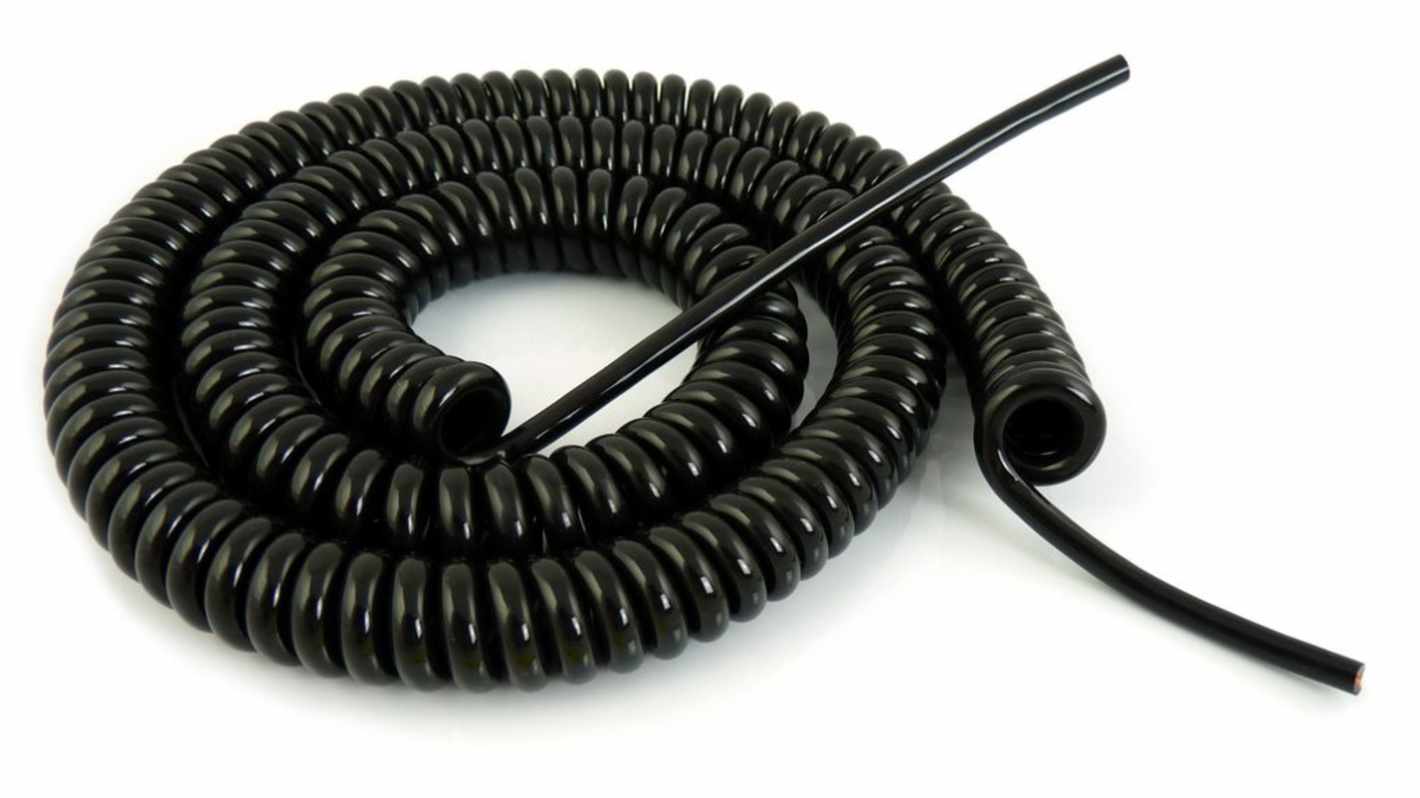

RS PRO TB28 FLEX, 4 m 8 Core Spiral Cable, Black Polyurethane 70 °C
- RS Stock No.:
- 327-509
- Distrelec Article No.:
- 302-22-165
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€89.14
(exc. VAT)
€109.64
(inc. VAT)
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €89.14 |
*price indicative
- RS Stock No.:
- 327-509
- Distrelec Article No.:
- 302-22-165
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Spiral Cable | |
| Number of Cores | 8 | |
| Jacket Colour | Black | |
| Cable Length | 4m | |
| Jacket Material | Polyurethane | |
| Minimum Operating Temperature | -25°C | |
| Cable CSA | 0.50mm² | |
| Standards/Approvals | DIN 47100 | |
| Maximum Operating Temperature | 70°C | |
| Series | TB28 FLEX | |
| Conductor Material | Bare Copper | |
| Core Strands | 64 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Spiral Cable | ||
Number of Cores 8 | ||
Jacket Colour Black | ||
Cable Length 4m | ||
Jacket Material Polyurethane | ||
Minimum Operating Temperature -25°C | ||
Cable CSA 0.50mm² | ||
Standards/Approvals DIN 47100 | ||
Maximum Operating Temperature 70°C | ||
Series TB28 FLEX | ||
Conductor Material Bare Copper | ||
Core Strands 64 | ||
- COO (Country of Origin):
- NL
RS PRO Spiral Cable TB50 FLEX Data
cable (shielded) 8x0,50mm², 1.0m /
4.0m Polyurethane (PUR)
RS PRO Spiral Cable LiF12YD11Y TB50 FLEX power cable is a high-quality shielded spiral cable
designed to provide reliable power and signal transmission in applications requiring flexibility and
repeated movement. Constructed with 8-core 0.50 mm² conductors, the cable delivers dependable
electrical performance for multi-core power and control applications. The conductors feature TPE-E
insulation, while the robust black polyurethane (PUR) outer sheath provides excellent resistance to
abrasion, mechanical wear, and frequent flexing, helping to ensure a long service life in demanding
industrial environments. The spiral construction allows the cable to extend up to 4 m when required
and retract when not in use, supporting efficient cable management and reducing the risk of
tangling or cable damage.
designed to provide reliable power and signal transmission in applications requiring flexibility and
repeated movement. Constructed with 8-core 0.50 mm² conductors, the cable delivers dependable
electrical performance for multi-core power and control applications. The conductors feature TPE-E
insulation, while the robust black polyurethane (PUR) outer sheath provides excellent resistance to
abrasion, mechanical wear, and frequent flexing, helping to ensure a long service life in demanding
industrial environments. The spiral construction allows the cable to extend up to 4 m when required
and retract when not in use, supporting efficient cable management and reducing the risk of
tangling or cable damage.
This cable is commonly used for connecting movable machinery, automation systems, control
equipment, sensors, and portable electrical devices where flexibility and reliable signal transmission
are essential. The shielded construction helps reduce the effects of electromagnetic interference,
making the cable suitable for applications involving power and control signals. Typical applications
include industrial machinery, handling equipment, production lines, robotic systems, and
equipment connections subject to regular movement. Suitable for operation in temperatures
ranging from -25°C to +70°C, the cable is designed to provide reliable performance and mechanical
protection in a wide range of industrial and commercial environments.
RoHS Conforms
REACH Regulation No SVHC
Shielded
