Lapp 3 Core Power Cable, 1.5 mm², 2m, Black Neoprene Sheath, Coiled, 18 A, 750 V
- RS Stock No.:
- 451-6919
- Mfr. Part No.:
- 38101332
- Manufacturer:
- Lapp
20 In stock for delivery within 2 working days
Price Each
€284.37
(exc. VAT)
€349.78
(inc. VAT)
Units | Per unit |
---|---|
1 + | €284.37 |
- RS Stock No.:
- 451-6919
- Mfr. Part No.:
- 38101332
- Manufacturer:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

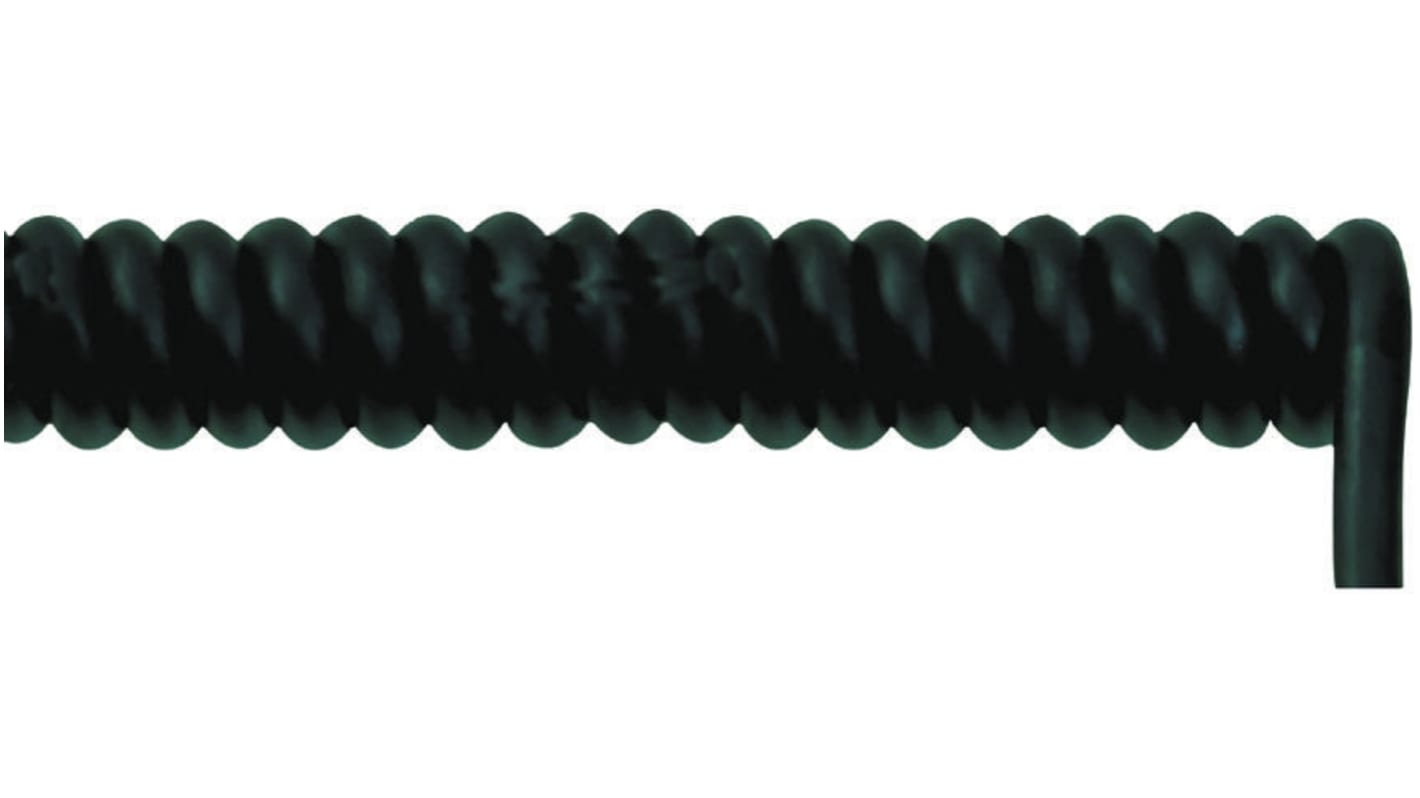

LAPP Black Coiled Power Cable, 2m Length, 3 Cores - SPIREX Series - 38101332
Use this multicore coiled power cable from LAPP to transmit electrical energy to automated systems. As it expands to 2m long, it's suitable for use with portable devices. Thanks to its coiled design, it stretches easily without kinking and returns to its original state when you release it. This minimises cable clutter and trip hazards. The neoprene outer jacket is resistant to weathering and the cable has a wide operating temperature range between -25°C and +60°C, so you can safely use it outdoors. For electrical safety, there's an earth conductor to ground potentially harmful current and protect you from shocks.
Features & Benefits
• Finely stranded bare copper conductors have high electrical conductivity for reliable operation
• Synthetic rubber insulation for safe handling
• Voltage rating of 750V for use in low-voltage systems
• Flame-retardant behaviour to prevent fire from spreading
• Synthetic rubber insulation for safe handling
• Voltage rating of 750V for use in low-voltage systems
• Flame-retardant behaviour to prevent fire from spreading
Applications
• Data centres
• Manufacturing industry
• Power generation equipment
• Telecommunication equipment
• Manufacturing industry
• Power generation equipment
• Telecommunication equipment
Where should I use a coiled cable?
This coiled cable is suitable for use with equipment that needs to be moved around frequently. Thanks to its flexible structure, you can also use it around awkward corners.
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 1.5 mm² |
Number of Cores | 3 |
Sheath Colour | Black |
Length | 2m |
Cable Type | Coiled |
Current Rating | 18 A |
Sheath Material | Neoprene |
Outer Diameter | 10.1mm |
CPR Certification | Eca |
Voltage Rating | 750 V |
European Harmonised Code | H07RN-F |
Conductor Strand Type | Solid |
Core Strands | 30/0.25 mm |
Standards Met | CE |
Minimum Operating Temperature | -25°C |
Fire Behaviour | Flame Retardant |
Cable Shape | Coiled Multicore |
Conductor Material | Bare Copper |
Conductor Resistance | 13.3 Ω/km |
Size of Strands | 0.25 mm |
Maximum Operating Temperature | +60°C |
American Wire Gauge | 15 AWG |
Number of Strands | 30 |
Series | UNITRONIC |
Insulation Material | Rubber |
