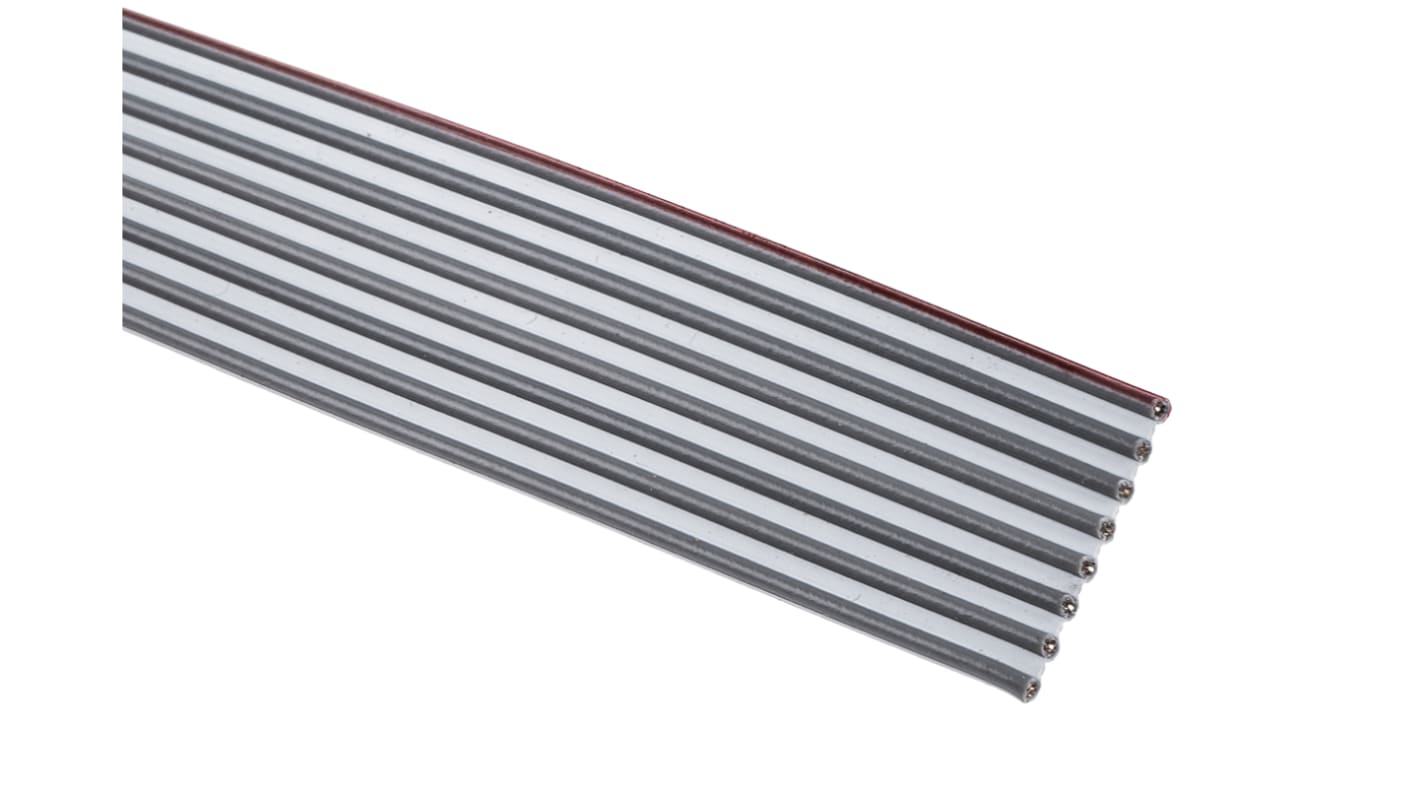

3M 8124 Series Flat Ribbon Cable, 8-Way, 2.54mm Pitch, 181m Length
- RS Stock No.:
- 815-8251
- Mfr. Part No.:
- 8124/8 100
- Manufacturer:
- 3M
Subtotal (1 reel of 30 metres)*
€241.95
(exc. VAT)
€297.60
(inc. VAT)
Last RS stock
- Final 2 unit(s), ready to ship
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €241.95 | €8.065 |
*price indicative
- RS Stock No.:
- 815-8251
- Mfr. Part No.:
- 8124/8 100
- Manufacturer:
- 3M
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Ribbon Cable Type | Flat | |
| Pitch | 2.54mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 8 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 22 AWG | |
| Series | 8124 | |
| Length | 181m | |
| Width | 19.51 mm | |
| Conductor Strand Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Number of Strands | 7 | |
| Maximum Operating Temperature | +105°C | |
| Sheath Colour | Grey | |
| Hi-Flex | Yes | |
| Voltage Rating | 300 V | |
| Operating Temperature Range | -20 → +105 °C | |
| Size of Strands | 30 AWG | |
| Capacitance | 36.1pF/m | |
| Core Strands | 7/30 | |
| Characteristic Impedance | 119 Ω | |
| Standards Met | RoHS Compliant | |
Select all | ||
|---|---|---|
Brand 3M | ||
Ribbon Cable Type Flat | ||
Pitch 2.54mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 8 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 22 AWG | ||
Series 8124 | ||
Length 181m | ||
Width 19.51 mm | ||
Conductor Strand Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Number of Strands 7 | ||
Maximum Operating Temperature +105°C | ||
Sheath Colour Grey | ||
Hi-Flex Yes | ||
Voltage Rating 300 V | ||
Operating Temperature Range -20 → +105 °C | ||
Size of Strands 30 AWG | ||
Capacitance 36.1pF/m | ||
Core Strands 7/30 | ||
Characteristic Impedance 119 Ω | ||
Standards Met RoHS Compliant | ||
