Sensirion Evaluation Kit for SVM30
- RS Stock No.:
- 195-0684
- Mfr. Part No.:
- SEK-SVM30-Sensor
- Manufacturer:
- Sensirion
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 195-0684
- Mfr. Part No.:
- SEK-SVM30-Sensor
- Manufacturer:
- Sensirion
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensirion | |
| Product Type | Sensor Development Tool | |
| Featured Device | SVM30 | |
| Kit Classification | Evaluation Kit | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Sensirion | ||
Product Type Sensor Development Tool | ||
Featured Device SVM30 | ||
Kit Classification Evaluation Kit | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CH

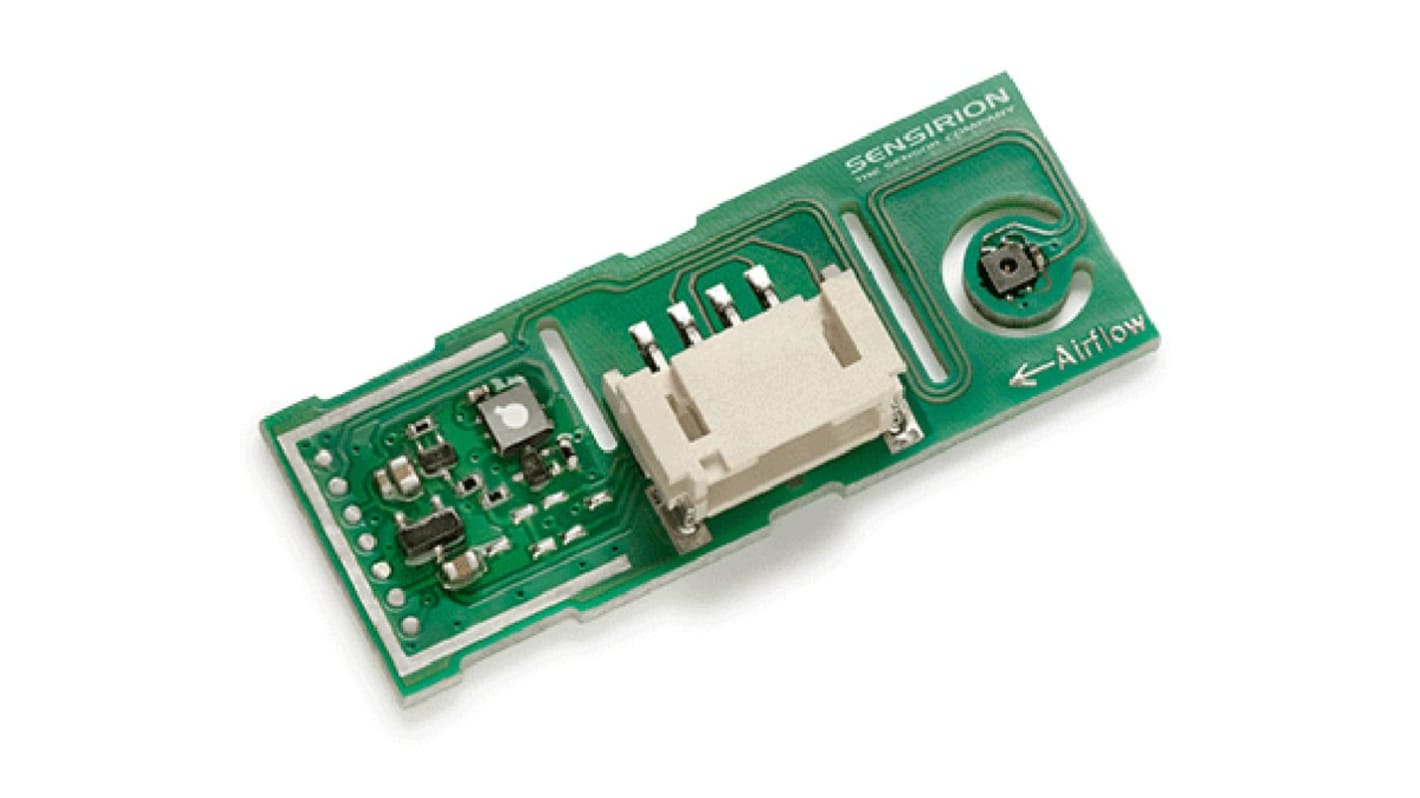

Based on Sensirion’s experience and expertise in environmental sensing, the SVM30 is optimized for easy design-in and sensing performance. It is a multi-gas, humidity and temperature sensor combo module containing a SGP30 gas sensor as well as a SHTC1 humidity and temperature sensor.
The SGP30 gas sensor combines multiple metal-oxide sensing elements – the pixels – on one chip, thereby offering the possibility to measure a total VOC signal (tVOC) and a CO2 equivalent signal (CO2eq) with one single sensor chip. The SVM30 further offers calibrated air quality output signals as well as compensation of humidity cross-sensitivity. The gas sensing element features an unmatched robustness against contamination by siloxanes present in real-world applications enabling unique long-term stability and low drift. Furthermore, the integrated SHTC1 humidity and temperature sensor covers a humidity measurement range of 0 to 100% relative humidity (RH). The gas, humidity and temperature sensor components are designed with Sensirion’s proven CMOSens® Technology.
