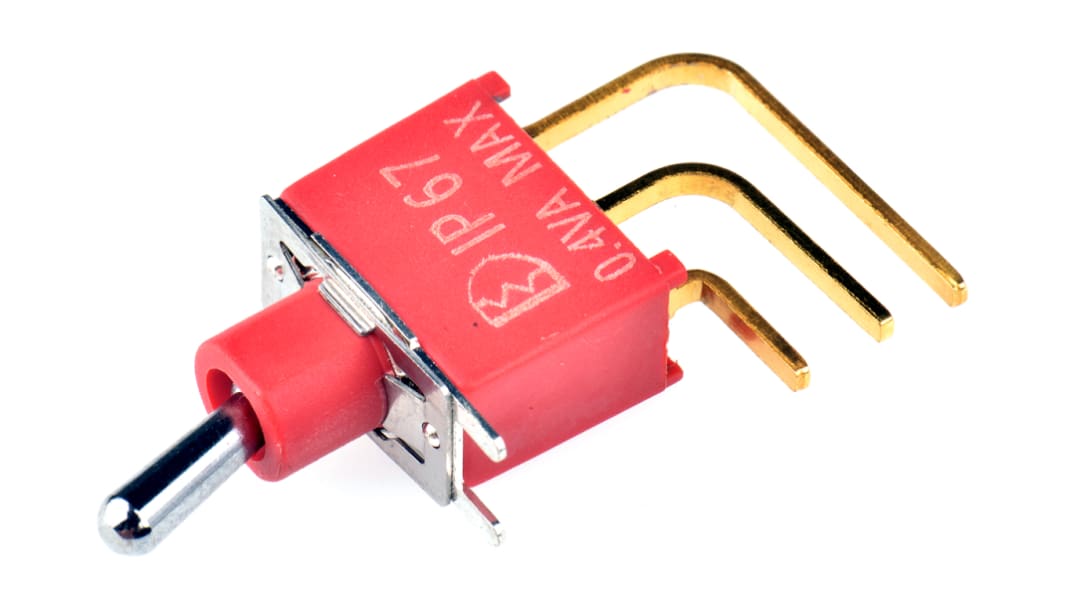

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Solder Terminal, 12 V dc, 112 V ac
- RS Stock No.:
- 734-6974
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€3.10
(exc. VAT)
€3.81
(inc. VAT)
In Stock
- 69 unit(s) ready to ship from another location
- Plus 5,351 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €3.10 |
*price indicative
- RS Stock No.:
- 734-6974
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 400 mA | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Illuminated | No | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 7.62mm | |
| Contact DC Voltage | 12V dc | |
| Contact AC Voltage | 112V ac | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Chrome Plated Brass | |
| Switch Configuration | On-None-On | |
| Series | RS | |
| Standards/Approvals | UL, RoHS, CSA, CE | |
| Mechanical Life | 30000Cycles | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 400 mA | ||
Mount Type PCB | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Illuminated No | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 7.62mm | ||
Contact DC Voltage 12V dc | ||
Contact AC Voltage 112V ac | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Chrome Plated Brass | ||
Switch Configuration On-None-On | ||
Series RS | ||
Standards/Approvals UL, RoHS, CSA, CE | ||
Mechanical Life 30000Cycles | ||
RS PRO SPDT Toggle Switch, Latching, IP67, PCB
The RS PRO SPDT (single pole double throw) toggle switch lets you complete a circuit with ease. It comes in a latching design so, once it's been switched on, it will stay that way until it's switched off again – no need for continuous compression. You'll find it used primarily in commercial and industrial settings, such as factories and workshops.
The unit has a PCB-mount (printed circuit board) and a through-hole terminal. The actuator is made from chromium-plated brass to ensure it's hardwearing and resists corrosion. It has a length of 7.62 mm.
Built to last, it has a mechanical life of roughly 30,000 cycles. It will operate in extreme temperatures, ranging from -30°C to +85°C. The component comes with an IP67 rating, meaning it's protected against dust, dirt and water. RoHS compliant, it contains minimal hazardous materials and is also lead-free.
Features and Benefits
• SPDT (single pole double throw) toggle switch
• Latching switch operation
• Contact current rating of 400 mA @ 20 V DC
• PCB (printed circuit board) mount
• Through-hole terminal
• IP rating of IP67 for water and dust protection
• Actuator length of 7.62 mm
• Chromium-plated brass actuator
• Contact resistance of 10 mΩ
• Gold plated copper alloy contacts
• Operating temperature range of -30°C to +85°C
• Mechanical life of 30,000 cycles
• RoHS compliant for minimal hazardous materials
• Lead-free
