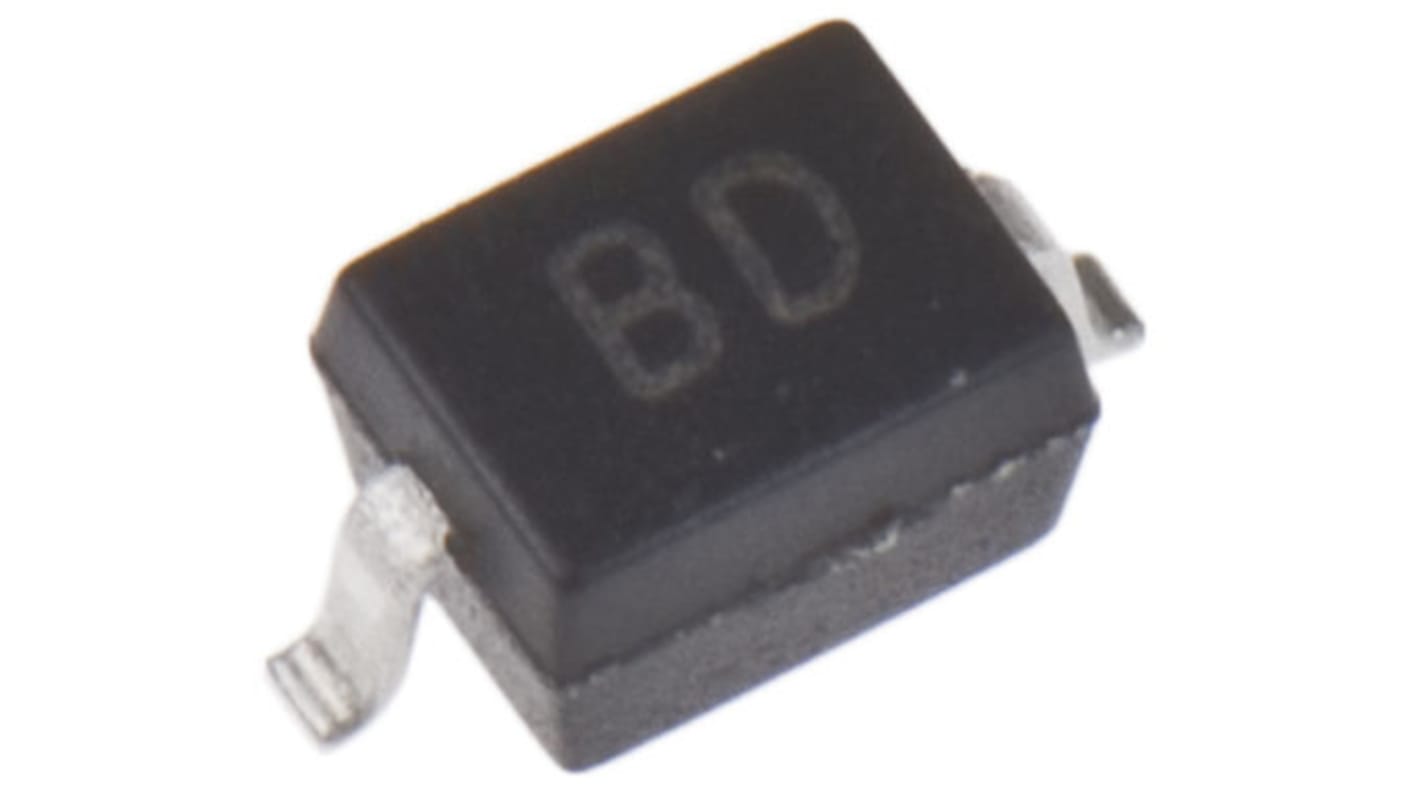

Diodes Inc D5V0L1B2WS-7, Bi-Directional TVS Diode, 84W, 2-Pin SOD-323
- RS Stock No.:
- 122-1457
- Mfr. Part No.:
- D5V0L1B2WS-7
- Manufacturer:
- DiodesZetex
Bulk discount available
Subtotal (1 reel of 3000 units)*
€90.00
(exc. VAT)
€120.00
(inc. VAT)
In Stock
- 15,000 unit(s) ready to ship from another location
- Plus 999,984,000 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | €0.03 | €90.00 |
| 9000 + | €0.029 | €87.00 |
*price indicative
- RS Stock No.:
- 122-1457
- Mfr. Part No.:
- D5V0L1B2WS-7
- Manufacturer:
- DiodesZetex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Array | |
| Maximum Clamping Voltage | 14V | |
| Minimum Breakdown Voltage | 6V | |
| Mounting Type | Surface Mount | |
| Package Type | SOD-323 | |
| Maximum Reverse Stand-off Voltage | 5V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 84W | |
| Maximum Peak Pulse Current | 6A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -65 °C | |
| Dimensions | 1.8 x 1.4 x 1.1mm | |
| Maximum Operating Temperature | +150 °C | |
| Maximum Reverse Leakage Current | 100nA | |
| Test Current | 1mA | |
| Width | 1.4mm | |
| Height | 1.1mm | |
| Length | 1.8mm | |
| Capacitance | 20pF | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Direction Type Bi-Directional | ||
Diode Configuration Array | ||
Maximum Clamping Voltage 14V | ||
Minimum Breakdown Voltage 6V | ||
Mounting Type Surface Mount | ||
Package Type SOD-323 | ||
Maximum Reverse Stand-off Voltage 5V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 84W | ||
Maximum Peak Pulse Current 6A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -65 °C | ||
Dimensions 1.8 x 1.4 x 1.1mm | ||
Maximum Operating Temperature +150 °C | ||
Maximum Reverse Leakage Current 100nA | ||
Test Current 1mA | ||
Width 1.4mm | ||
Height 1.1mm | ||
Length 1.8mm | ||
Capacitance 20pF | ||
