Select all	Attribute	Value
	Brand	Nexperia
	Direction Type	Bi-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	38V
	Minimum Breakdown Voltage	14.6V
	Mounting Type	Surface Mount
	Package Type	SOD-882
	Maximum Reverse Stand-off Voltage	12V
	Pin Count	2
	Peak Pulse Power Dissipation	290W
	Maximum Peak Pulse Current	7.8A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	1.02 x 0.62 x 0.5mm
	Test Current	5mA
	Maximum Reverse Leakage Current	10nA
	Length	1.02mm
	Height	0.5mm
	Width	0.62mm

	Select all
	Brand Nexperia
	Direction Type Bi-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 38V
	Minimum Breakdown Voltage 14.6V
	Mounting Type Surface Mount
	Package Type SOD-882
	Maximum Reverse Stand-off Voltage 12V
	Pin Count 2
	Peak Pulse Power Dissipation 290W
	Maximum Peak Pulse Current 7.8A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Dimensions 1.02 x 0.62 x 0.5mm
	Test Current 5mA
	Maximum Reverse Leakage Current 10nA
	Length 1.02mm
	Height 0.5mm
	Width 0.62mm

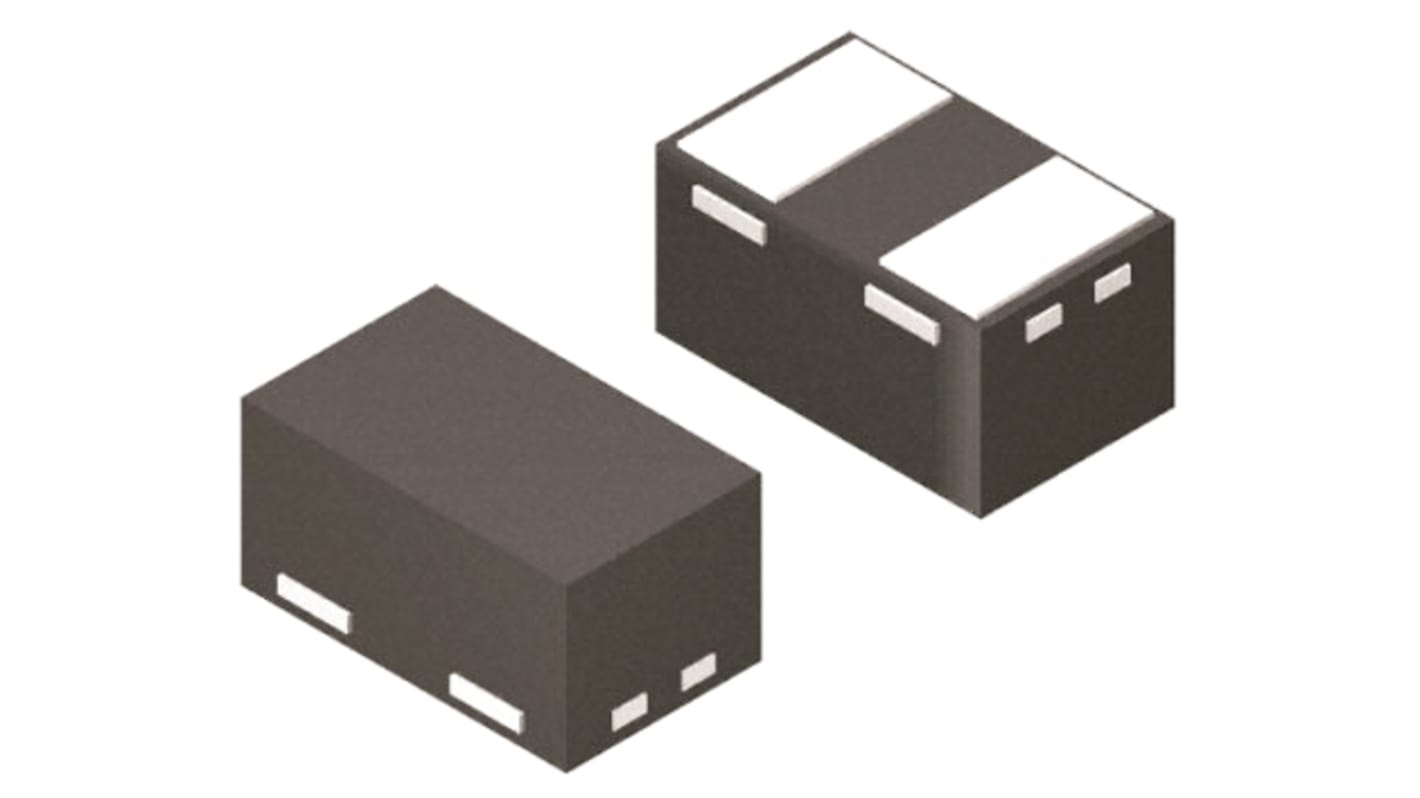

Nexperia PESD12VV1BL,315, Bi-Directional ESD Protection Diode, 290W, 2-Pin SOD-882

PESDxxxV1 Series, Low Capacitance Bidirectional ESD Protection Diodes, Nexperia
