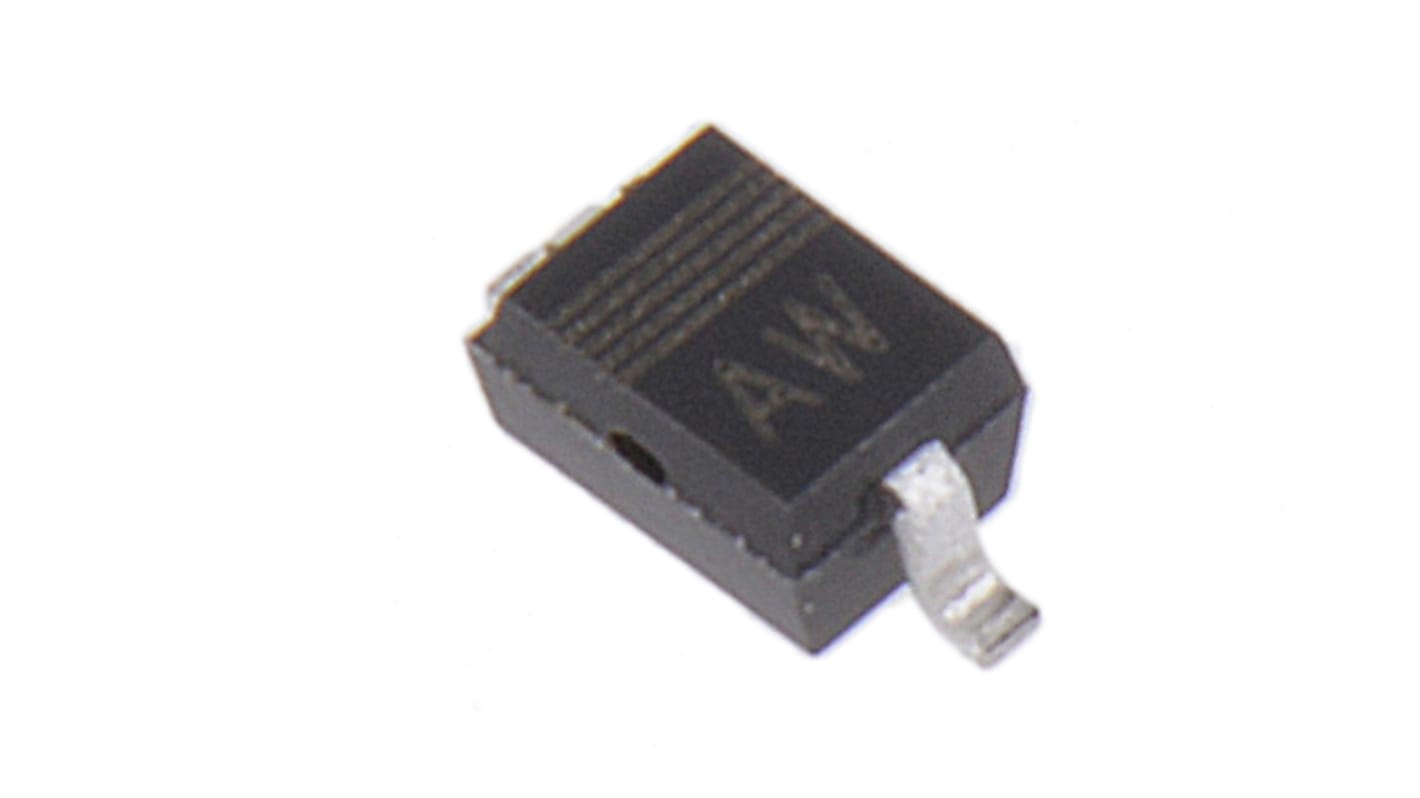

Nexperia PESD12VS1UA,115, Uni-Directional ESD Protection Diode, 600W, 2-Pin SOD-323

RS Stock No.:: 791-8891
Mfr. Part No.:: PESD12VS1UA,115
Manufacturer:: Nexperia

Nexperia PESD12VS1UA,115, Uni-Directional ESD Protection Diode, 600W, 2-Pin SOD-323

Price Each (In a Pack of 25)**

€0.175

(exc. VAT)

€0.215

(inc. VAT)

119250 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
25 +	€0.175	€4.375

**price indicative

RS Stock No.:: 791-8891
Mfr. Part No.:: PESD12VS1UA,115
Manufacturer:: Nexperia

PESD5V0S1UA PESD12VS1UA, Unidirectional ESD Protection for Transient Voltage Suppression Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Diode Configuration	Single
Direction Type	Uni-Directional
Maximum Clamping Voltage	27V
Minimum Breakdown Voltage	13.3V
Mounting Type	Surface Mount
Package Type	SOD-323
Maximum Reverse Stand-off Voltage	12V
Pin Count	2
Peak Pulse Power Dissipation	600W
Maximum Peak Pulse Current	22.5A
ESD Protection	Yes
Number of Elements per Chip	1
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+150 °C
Dimensions	1.8 x 1.35 x 1.1mm
Height	1.1mm
Width	1.35mm
Length	1.8mm
Maximum Reverse Leakage Current	100nA

Nexperia PESD12VS1UA,115, Uni-Directional ESD Protection Diode, 600W, 2-Pin SOD-323

PESDxxxS1 Series, Unidirectional ESD Protection for Transient Voltage Suppression, Nexperia
