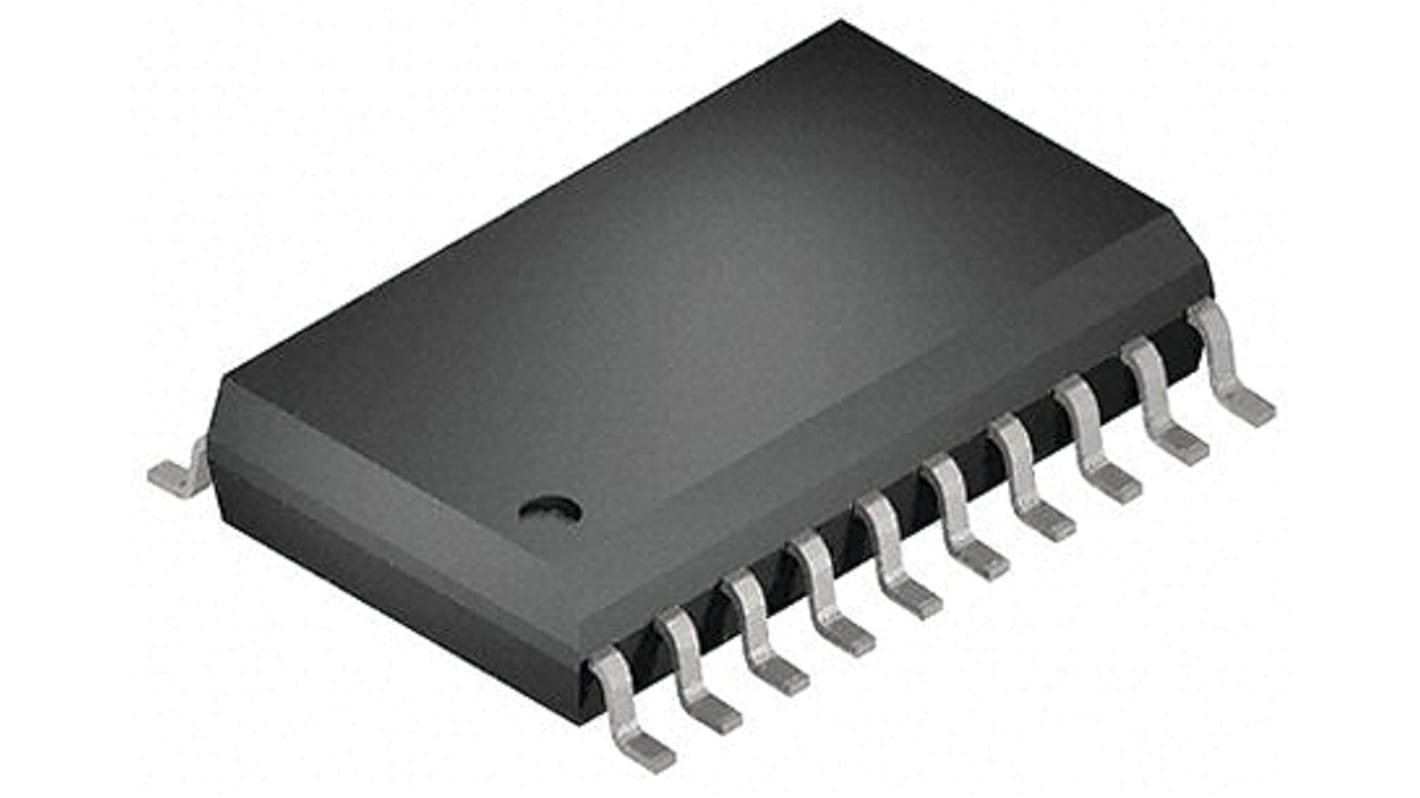

Toshiba Inverting 3 State Dual Bus Buffer, 20-Pin SOIC

RS Stock No.:: 171-3001
Mfr. Part No.:: 74HC540D
Manufacturer:: Toshiba

Toshiba Inverting 3 State Dual Bus Buffer, 20-Pin SOIC

Subtotal (1 reel of 2000 units)*

€564.00

(exc. VAT)

€694.00

(inc. VAT)

Temporarily out of stock

Shipping from 23 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2000 +	€0.282	€564.00

*price indicative

RS Stock No.:: 171-3001
Mfr. Part No.:: 74HC540D
Manufacturer:: Toshiba

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Toshiba
	Logic Family	74HC
	Product Type	Dual Bus Buffer
	Logic Function	Buffer
	Schmitt Trigger Input	No
	Input Type	CMOS
	Mount Type	Surface
	Output Type	3 State
	Polarity	Inverting
	Package Type	SOIC
	Minimum Supply Voltage	2V
	Pin Count	20
	Maximum Supply Voltage	6V
	Maximum High Level Output Current	-7.8mA
	Minimum Operating Temperature	-40°C
	Maximum Propagation Delay Time @ CL	150ns
	Maximum Operating Temperature	85°C
	Maximum Low Level Output Current	7.8mA
	Standards/Approvals	No
	Series	74HC
	Length	13.1mm
	Width	7.5 mm
	Height	2.25mm
	Supply Current	70mA
	Automotive Standard	No

	Select all
	Brand Toshiba
	Logic Family 74HC
	Product Type Dual Bus Buffer
	Logic Function Buffer
	Schmitt Trigger Input No
	Input Type CMOS
	Mount Type Surface
	Output Type 3 State
	Polarity Inverting
	Package Type SOIC
	Minimum Supply Voltage 2V
	Pin Count 20
	Maximum Supply Voltage 6V
	Maximum High Level Output Current -7.8mA
	Minimum Operating Temperature -40°C
	Maximum Propagation Delay Time @ CL 150ns
	Maximum Operating Temperature 85°C
	Maximum Low Level Output Current 7.8mA
	Standards/Approvals No
	Series 74HC
	Length 13.1mm
	Width 7.5 mm
	Height 2.25mm
	Supply Current 70mA
	Automotive Standard No

The 74HC540D/74HC541D are high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The 74HC540D is an inverting type, and the 74HC541D is a non-inverting type. When either G1 or G2 are high, the terminal outputs are in the high-impedance state. All inputs are equipped with protection circuits against static discharge or transient excess voltage

High speed: tpd = 10 ns (typ.) at VCC = 6.0 V

Low power dissipation: ICC = 4.0 μA (max) at Ta = 25 

Balanced propagation delays: tPLH ≈ tPHL

Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V

Toshiba Inverting 3 State Dual Bus Buffer, 20-Pin SOIC
