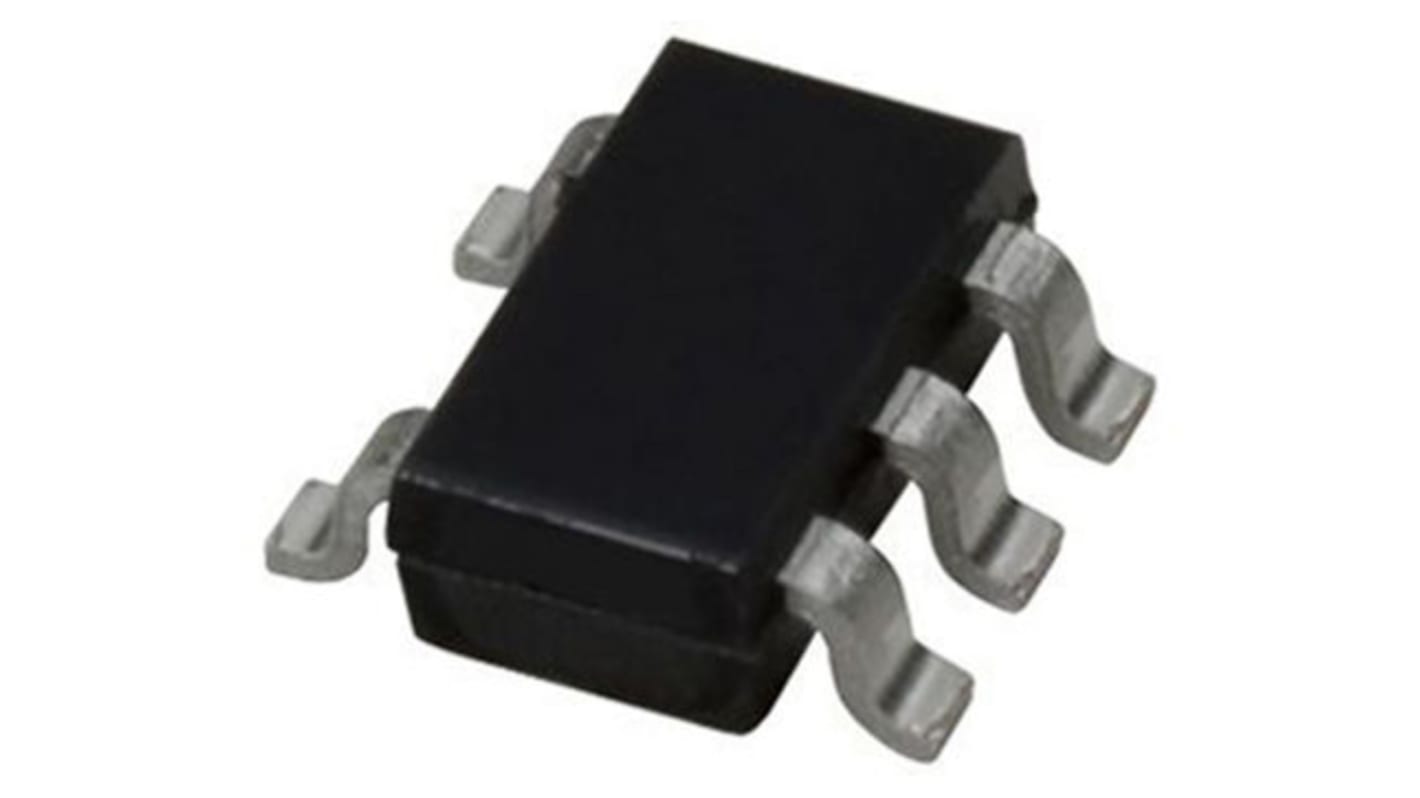

DiodesZetex 74LVC1G17SE-7 Non-Inverting Schmitt Trigger Push-Pull Buffer, 5-Pin SOT-353

RS Stock No.:: 822-8704
Mfr. Part No.:: 74LVC1G17SE-7
Manufacturer:: DiodesZetex

DiodesZetex 74LVC1G17SE-7 Non-Inverting Schmitt Trigger Push-Pull Buffer, 5-Pin SOT-353

Bulk discount available

Subtotal (1 pack of 200 units)**

€12.60

(exc. VAT)

€15.40

(inc. VAT)

1200 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit	Per Pack**
200 - 1400	€0.063	€12.60
1600 +	€0.048	€9.60

**price indicative

RS Stock No.:: 822-8704
Mfr. Part No.:: 74LVC1G17SE-7
Manufacturer:: DiodesZetex

Single Schmitt-Trigger Buffer Datasheet
ESD Control Selection Guide V1

Attribute	Value
Logic Family	74LVC
Logic Function	Buffer
Number of Channels	1
Schmitt Trigger Input	Yes
Input Type	Schmitt Trigger
Output Type	Push-Pull
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SOT-353
Pin Count	5
Maximum High Level Output Current	-32mA
Maximum Low Level Output Current	32mA
Maximum Propagation Delay Time @ Maximum CL	14 ns @ 50 pF
Dimensions	2.2 x 1.35 x 1mm
Maximum Operating Supply Voltage	5.5 V
Height	1mm
Length	2.2mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Width	1.35mm
Propagation Delay Test Condition	50pF
Minimum Operating Supply Voltage	1.65 V

DiodesZetex 74LVC1G17SE-7 Non-Inverting Schmitt Trigger Push-Pull Buffer, 5-Pin SOT-353

74LVC Family, Diodes Inc
