Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CHAIN 819 CP
	Number of Cores	7
	Cross Sectional Area	1.5 mm²
	American Wire Gauge	15 AWG
	Conductor Material	Copper
	Sheath Material	PUR
	Control Cable Type	CY
	Sheath Colour	Black
	Screen Type	Tinned Copper Braid
	Screened/Unscreened	Screened
	Length	50m
	Minimum Bend Radius	10 x Diameter (Flexing), 4 x Diameter (Fixed Installation)
	Outer Diameter	10.9mm
	Voltage Rating	300/500 V
	CPR Certification	Eca
	Standards Met	CSA, cUL Listed, IEC/EN: 60332-1-2, UL File No. E63634, UL Listed, USA
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CHAIN 819 CP
	Number of Cores 7
	Cross Sectional Area 1.5 mm²
	American Wire Gauge 15 AWG
	Conductor Material Copper
	Sheath Material PUR
	Control Cable Type CY
	Sheath Colour Black
	Screen Type Tinned Copper Braid
	Screened/Unscreened Screened
	Length 50m
	Minimum Bend Radius 10 x Diameter (Flexing), 4 x Diameter (Fixed Installation)
	Outer Diameter 10.9mm
	Voltage Rating 300/500 V
	CPR Certification Eca
	Standards Met CSA, cUL Listed, IEC/EN: 60332-1-2, UL File No. E63634, UL Listed, USA
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Insulation Material PVC

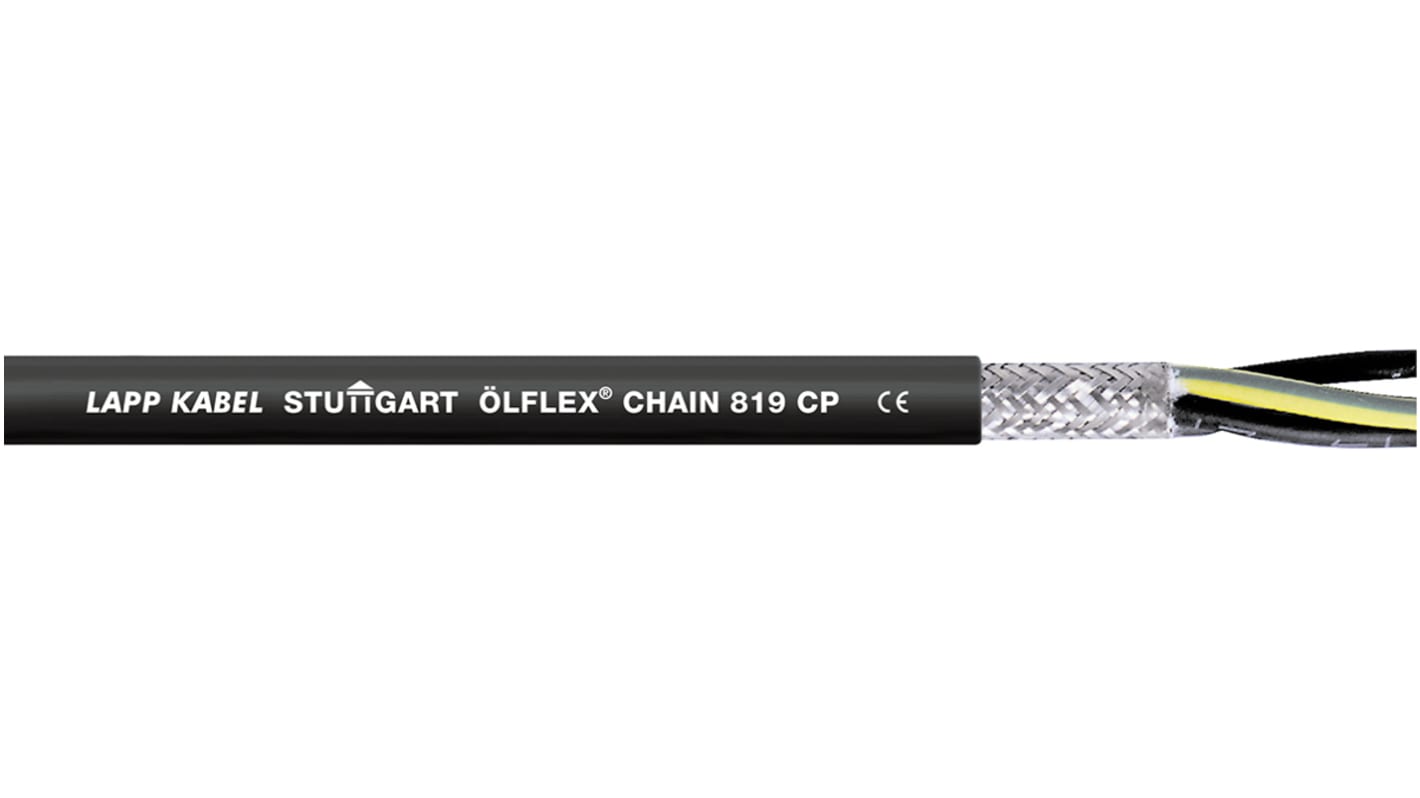

Lapp ÖLFLEX CHAIN 819 CP Control Cable, 7 Cores, 1.5 mm², CY, Screened, 50m, Black PUR Sheath, 15 AWG

Lapp ÖLFLEX CHAIN 819 CP Series Control Cable, 50m Length, 300/500V Voltage Rating - 1027934

Features & Benefits

Applications

Can it be used in power chains?

Will it provide protection against interference from electrical fields?

Is it flame retardant?
