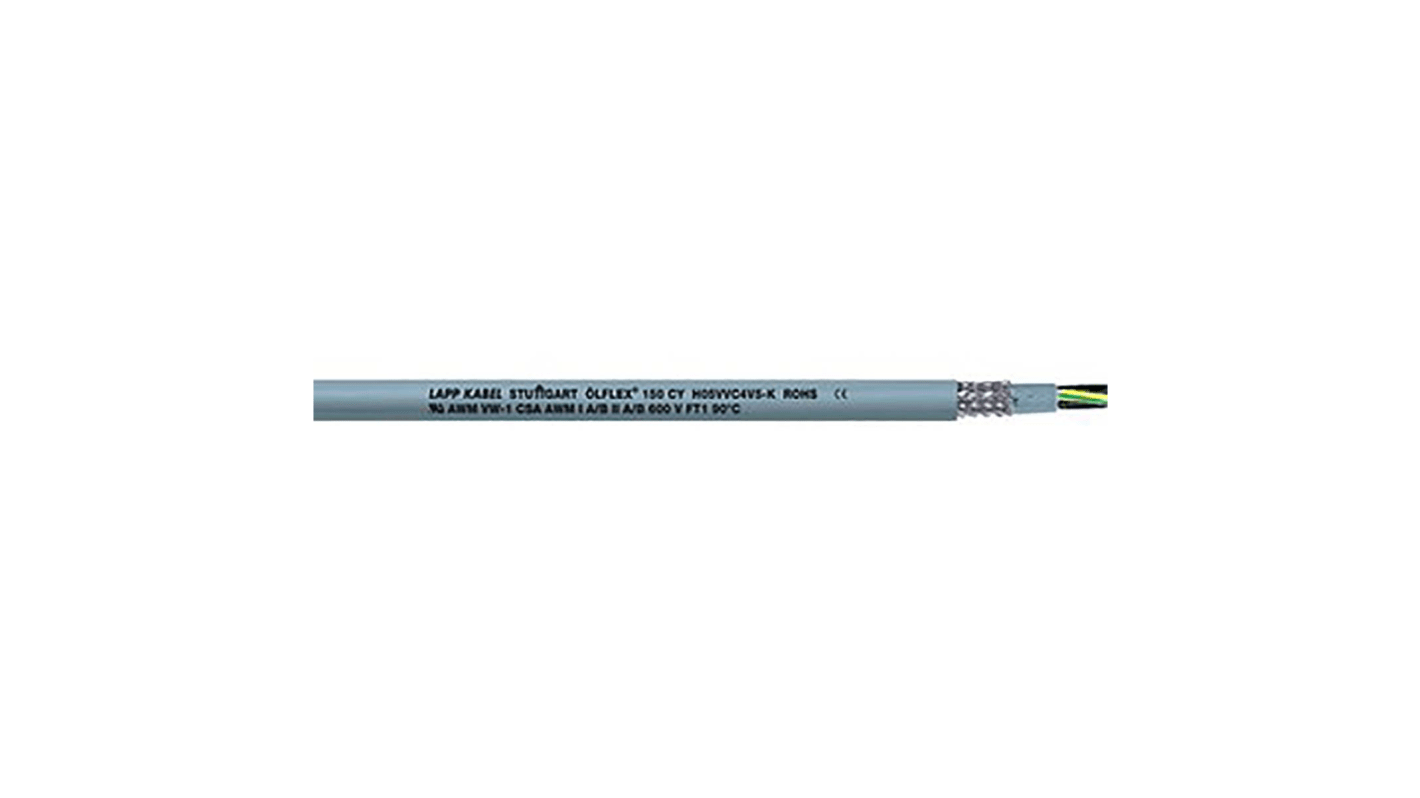

Lapp ÖLFLEX 150 CY Control Cable, 7 Cores, 2.5 mm², CY, Screened, 50m, Grey PVC Sheath, 13 AWG
- RS Stock No.:
- 807-8938
- Mfr. Part No.:
- 0015907
- Manufacturer:
- Lapp
Subtotal (1 reel of 50 metres)*
€974.80
(exc. VAT)
€1,199.00
(inc. VAT)
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €974.80 | €19.496 |
*price indicative
- RS Stock No.:
- 807-8938
- Mfr. Part No.:
- 0015907
- Manufacturer:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX 150 CY | |
| Number of Cores | 7 | |
| Cross Sectional Area | 2.5 mm² | |
| American Wire Gauge | 13 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PVC | |
| Control Cable Type | CY | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Screened | |
| Screen Type | Tinned Copper Braid | |
| Minimum Bend Radius | 20 x 17.5 (Occasional Flexing) mm, 6 x 17.5 (Fixed Installation) mm | |
| Outer Diameter | 17.5mm | |
| Length | 50m | |
| Voltage Rating | 300 V, 500 V | |
| CPR Certification | Dca | |
| Standards Met | CE, CSA, UL | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Flame Retardant | |
| Oil Resistant | Yes | |
| Drain Wire | Yes | |
| Cable Shape | Multicore | |
| Insulation Material | PVC | |
| Bedding Material | Tinned Copper | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX 150 CY | ||
Number of Cores 7 | ||
Cross Sectional Area 2.5 mm² | ||
American Wire Gauge 13 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Control Cable Type CY | ||
Sheath Colour Grey | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Minimum Bend Radius 20 x 17.5 (Occasional Flexing) mm, 6 x 17.5 (Fixed Installation) mm | ||
Outer Diameter 17.5mm | ||
Length 50m | ||
Voltage Rating 300 V, 500 V | ||
CPR Certification Dca | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Oil Resistant Yes | ||
Drain Wire Yes | ||
Cable Shape Multicore | ||
Insulation Material PVC | ||
Bedding Material Tinned Copper | ||
Minimum Operating Temperature -40°C | ||
