Phoenix Contact SACC Cat5 Ethernet Cable 4 Core, Green, 1 m, Copper Braid Screened PVC
- RS Stock No.:
- 255-9951
- Mfr. Part No.:
- 1552353
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
€26.39
(exc. VAT)
€32.46
(inc. VAT)
Stocked by manufacturer
- Ready to ship from 04 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €26.39 |
*price indicative
- RS Stock No.:
- 255-9951
- Mfr. Part No.:
- 1552353
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | SACC | |
| LAN Category | Cat5 | |
| Cable Length | 1m | |
| Terminated/Unterminated | Terminated | |
| Shield Type | Copper Braid | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Colour | Green | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, EAC | |
| Fire Behaviour | UL 94 V-0 | |
| Voltage | 250V | |
| Conductor Material | Tin Plated Copper | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Outside Diameter | 6.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series SACC | ||
LAN Category Cat5 | ||
Cable Length 1m | ||
Terminated/Unterminated Terminated | ||
Shield Type Copper Braid | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Colour Green | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, EAC | ||
Fire Behaviour UL 94 V-0 | ||
Voltage 250V | ||
Conductor Material Tin Plated Copper | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Outside Diameter 6.5mm | ||
- COO (Country of Origin):
- DE

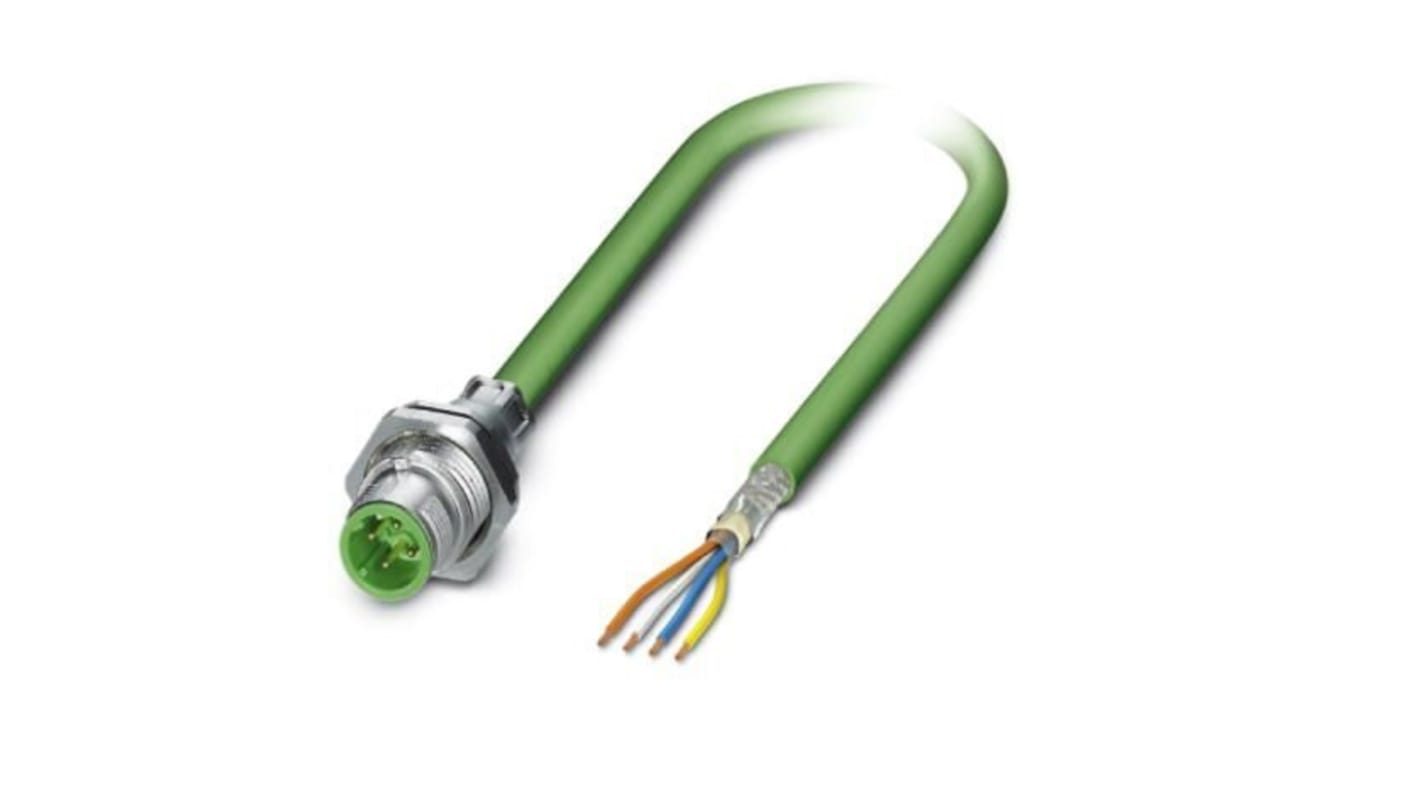

The Phoenix Contact four position flush type plug with attached cable, which has an D coded M12 straight plug connector on one side and free end on the other side. It is compatible with profinet interface technologies.
IP67 protection class
EAC approved
RoHS compliant
