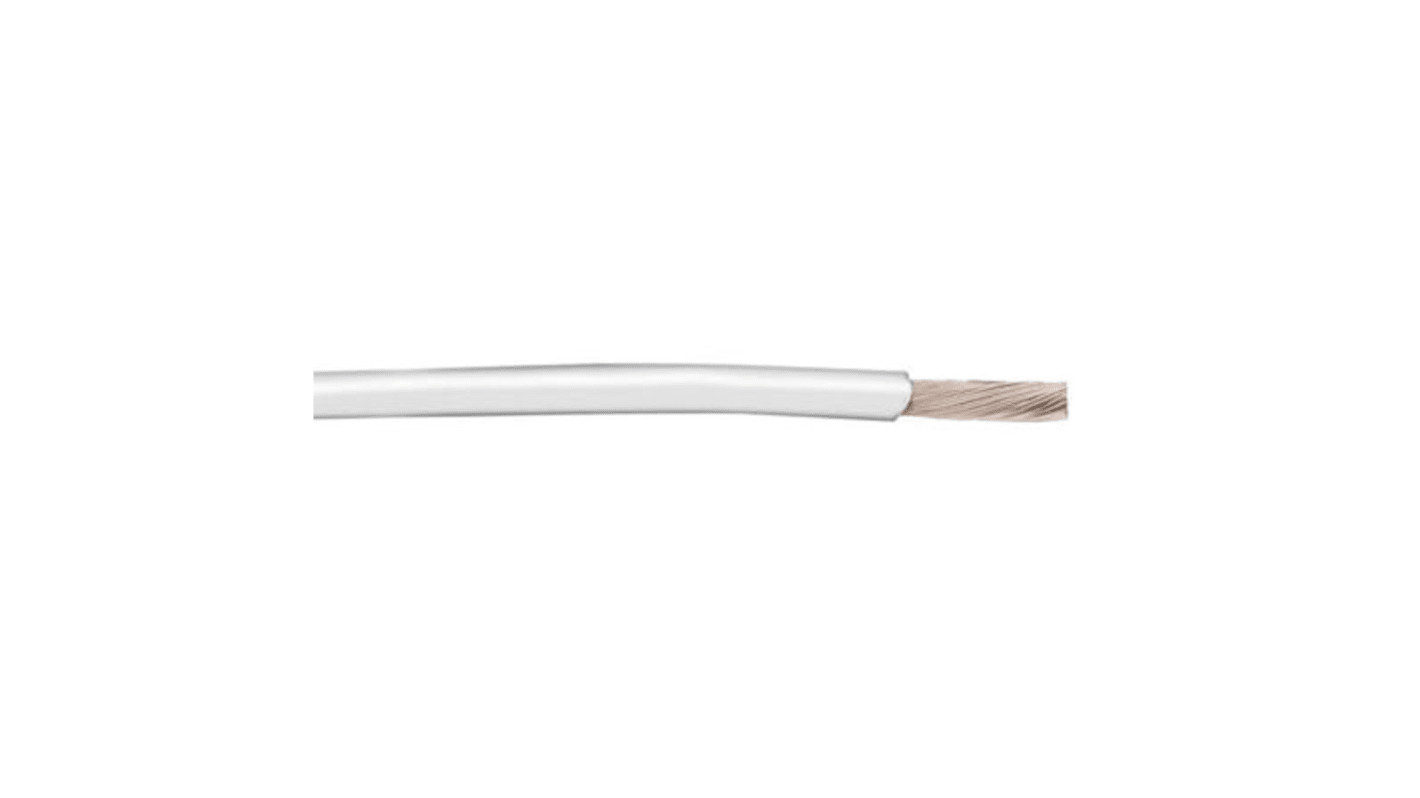

Alpha Wire Hook-up Wire TEFLON Series White 0.33 mm² Hook Up Wire, 22 AWG, 19/0.16 mm, 30m, PTFE Insulation, 5855 WH005
- RS Stock No.:
- 878-8111
- Distrelec Article No.:
- 300-72-868
- Mfr. Part No.:
- 5855 WH005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
€65.81
(exc. VAT)
€80.95
(inc. VAT)
In Stock
- 39 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 28 July 2025
- Plus 3 unit(s) shipping from 18 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €65.81 | €2.194 |
*price indicative
- RS Stock No.:
- 878-8111
- Distrelec Article No.:
- 300-72-868
- Mfr. Part No.:
- 5855 WH005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 19/0.16 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Outer Diameter | 1.27mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Cable Type | Single Core | |
| Standards Met | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | |
| Wire Style | UL1213 | |
| Series | Hook-up Wire TEFLON | |
| Tri-rated | No | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 19 | |
| Resistant To | Chemicals, Oils, Solvents | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour White | ||
American Wire Gauge 22 AWG | ||
Cable Shape Single Core | ||
Core Strands 19/0.16 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Outer Diameter 1.27mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Cable Type Single Core | ||
Standards Met CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | ||
Wire Style UL1213 | ||
Series Hook-up Wire TEFLON | ||
Tri-rated No | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.16 mm | ||
Number of Strands 19 | ||
Resistant To Chemicals, Oils, Solvents | ||
