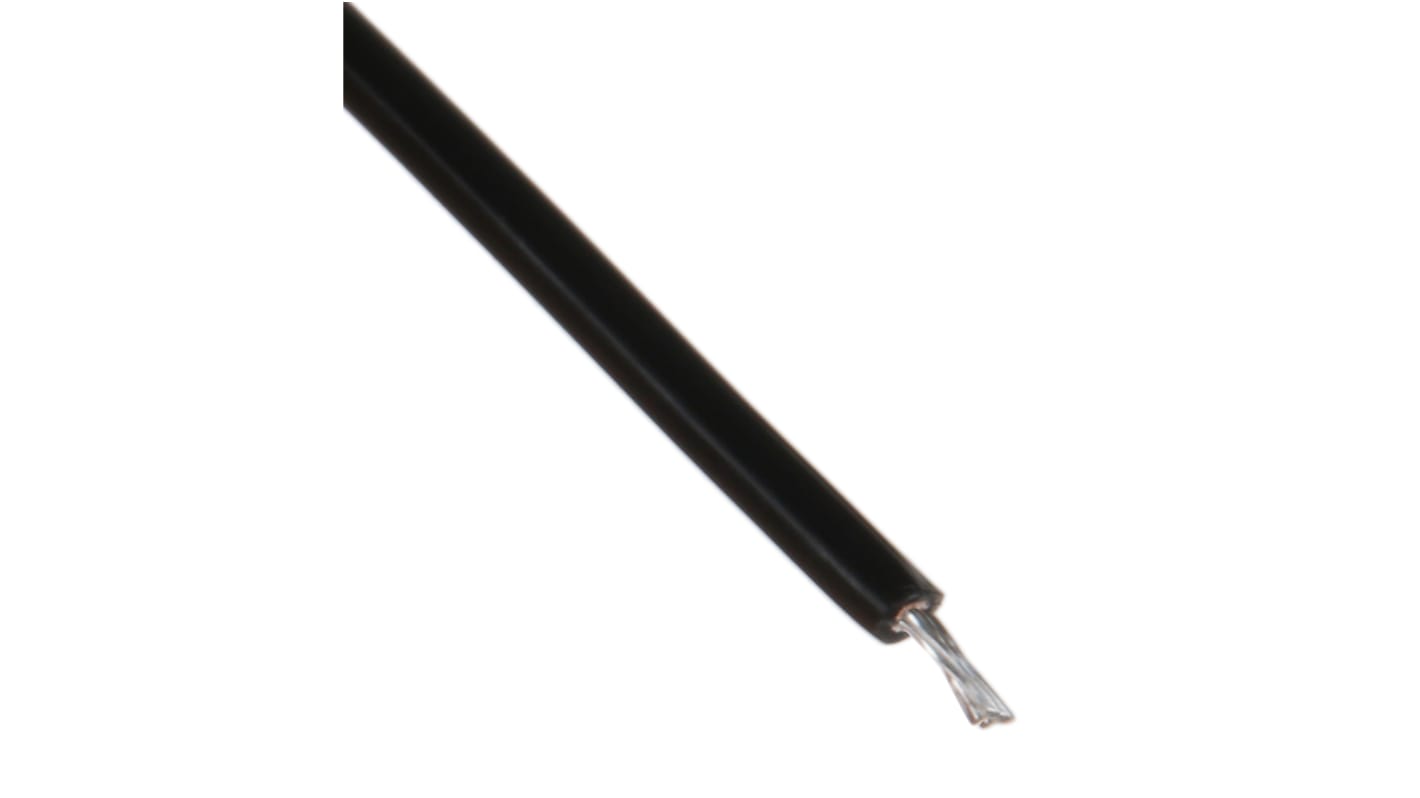

Alpha Wire Hook-up Wire TEFLON Series Black 0.33 mm² Hook Up Wire, 22 AWG, 19/0.16 mm, 30m, PTFE Insulation, 5855 BK005
- RS Stock No.:
- 878-8086
- Distrelec Article No.:
- 300-72-860
- Mfr. Part No.:
- 5855 BK005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
€65.81
(exc. VAT)
€80.95
(inc. VAT)
In Stock
- 63 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €65.81 | €2.194 |
*price indicative
- RS Stock No.:
- 878-8086
- Distrelec Article No.:
- 300-72-860
- Mfr. Part No.:
- 5855 BK005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 19/0.16 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Outer Diameter | 1.27mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | |
| Wire Style | UL1213 | |
| Series | Hook-up Wire TEFLON | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 22 AWG | ||
Core Strands 19/0.16 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Outer Diameter 1.27mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | ||
Wire Style UL1213 | ||
Series Hook-up Wire TEFLON | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.16 mm | ||
Number of Strands 19 | ||
