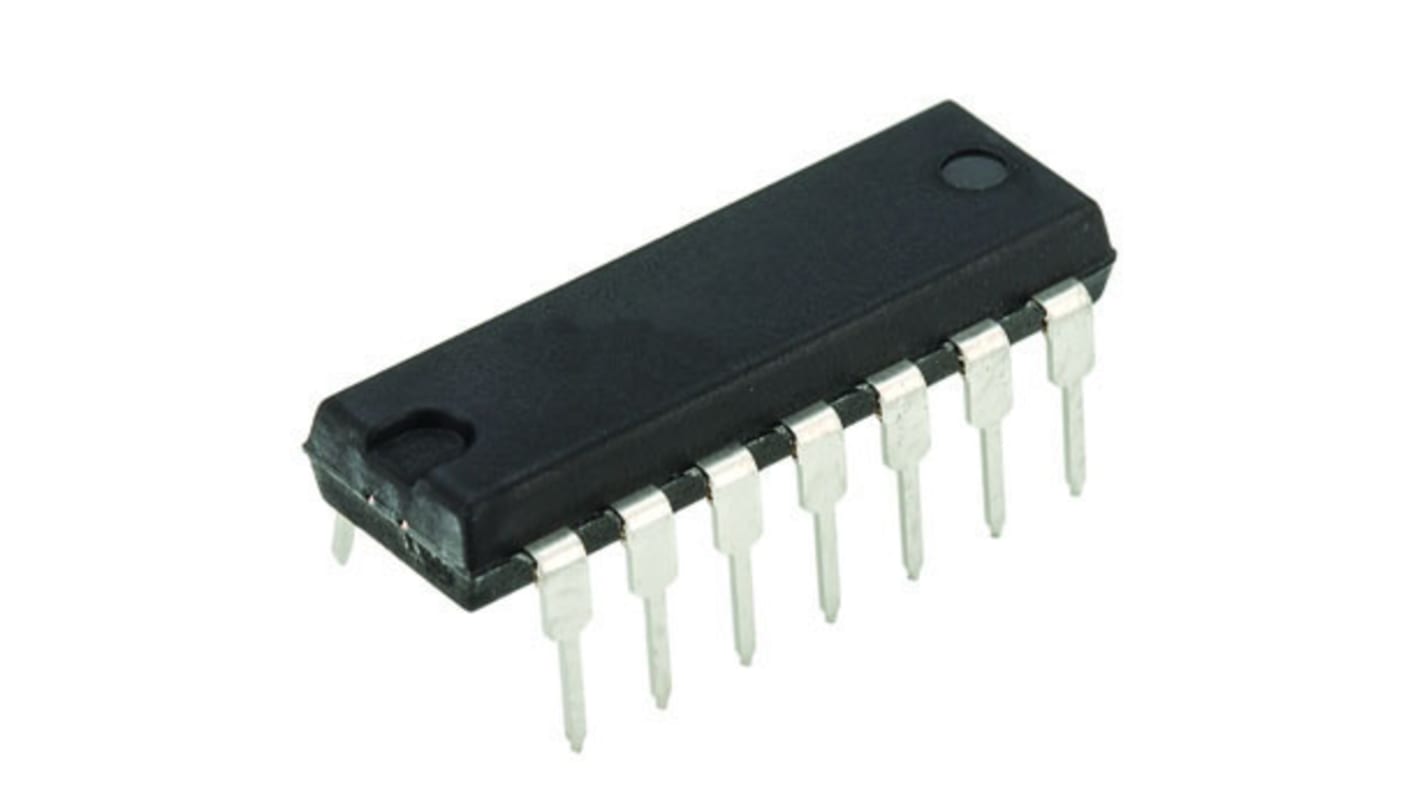

Texas Instruments SN74AC32NE4, Quad 2-Input OR Logic Gate, 14-Pin PDIP

RS Stock No.:: 145-6145
Mfr. Part No.:: SN74AC32NE4
Manufacturer:: Texas Instruments

Texas Instruments SN74AC32NE4, Quad 2-Input OR Logic Gate, 14-Pin PDIP

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

RS Stock No.:: 145-6145
Mfr. Part No.:: SN74AC32NE4
Manufacturer:: Texas Instruments

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Function	OR
	Mounting Type	Through Hole
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	PDIP
	Pin Count	14
	Logic Family	AC
	Maximum Operating Supply Voltage	6 V
	Maximum High Level Output Current	-24mA
	Maximum Propagation Delay Time @ Maximum CL	7.5 ns @ 5 V, 9 ns @ 3.3 V
	Minimum Operating Supply Voltage	2 V
	Maximum Low Level Output Current	24mA
	Dimensions	19.3 x 6.35 x 4.57mm
	Minimum Operating Temperature	-40 °C
	Length	19.3mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+85 °C
	Height	4.57mm
	Width	6.35mm

	Select all
	Brand Texas Instruments
	Logic Function OR
	Mounting Type Through Hole
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type PDIP
	Pin Count 14
	Logic Family AC
	Maximum Operating Supply Voltage 6 V
	Maximum High Level Output Current -24mA
	Maximum Propagation Delay Time @ Maximum CL 7.5 ns @ 5 V, 9 ns @ 3.3 V
	Minimum Operating Supply Voltage 2 V
	Maximum Low Level Output Current 24mA
	Dimensions 19.3 x 6.35 x 4.57mm
	Minimum Operating Temperature -40 °C
	Length 19.3mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +85 °C
	Height 4.57mm
	Width 6.35mm

Texas Instruments SN74AC32NE4, Quad 2-Input OR Logic Gate, 14-Pin PDIP

74AC Family, Texas Instruments
