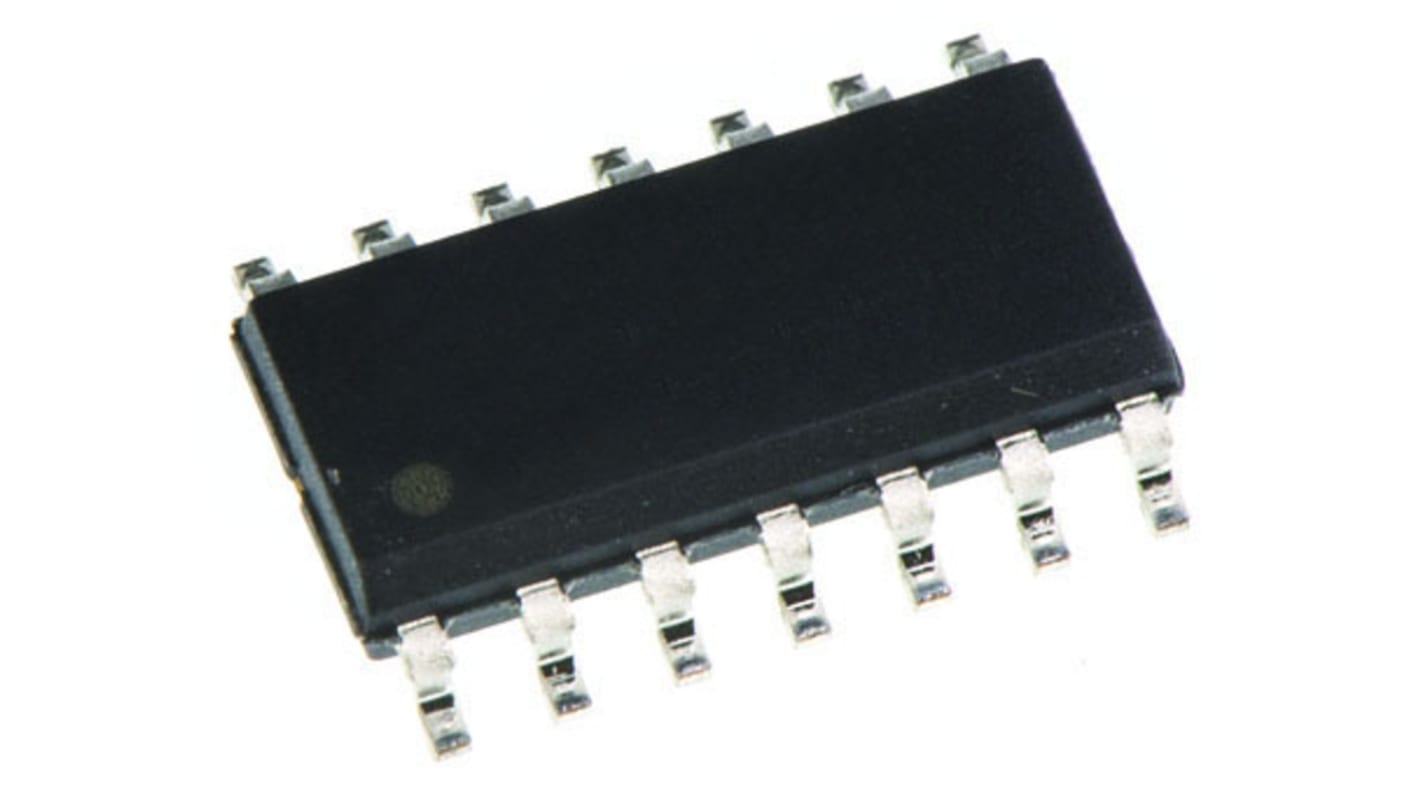

Texas Instruments SN74ACT32D, Quad 2-Input OR Logic Gate, 14-Pin SOIC

RS Stock No.:: 145-0878
Mfr. Part No.:: SN74ACT32D
Manufacturer:: Texas Instruments

Texas Instruments SN74ACT32D, Quad 2-Input OR Logic Gate, 14-Pin SOIC

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

RS Stock No.:: 145-0878
Mfr. Part No.:: SN74ACT32D
Manufacturer:: Texas Instruments

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Function	OR
	Mounting Type	Surface Mount
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	SOIC
	Pin Count	14
	Logic Family	ACT
	Maximum Operating Supply Voltage	5.5 V
	Maximum High Level Output Current	-24mA
	Maximum Propagation Delay Time @ Maximum CL	9 ns @ 5 V
	Minimum Operating Supply Voltage	4.5 V
	Maximum Low Level Output Current	24mA
	Width	3.91mm
	Height	1.58mm
	Length	8.65mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+85 °C
	Dimensions	8.65 x 3.91 x 1.58mm
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Texas Instruments
	Logic Function OR
	Mounting Type Surface Mount
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type SOIC
	Pin Count 14
	Logic Family ACT
	Maximum Operating Supply Voltage 5.5 V
	Maximum High Level Output Current -24mA
	Maximum Propagation Delay Time @ Maximum CL 9 ns @ 5 V
	Minimum Operating Supply Voltage 4.5 V
	Maximum Low Level Output Current 24mA
	Width 3.91mm
	Height 1.58mm
	Length 8.65mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +85 °C
	Dimensions 8.65 x 3.91 x 1.58mm
	Minimum Operating Temperature -40 °C

Texas Instruments SN74ACT32D, Quad 2-Input OR Logic Gate, 14-Pin SOIC

74ACT Family, Logic Gate, Texas Instruments
