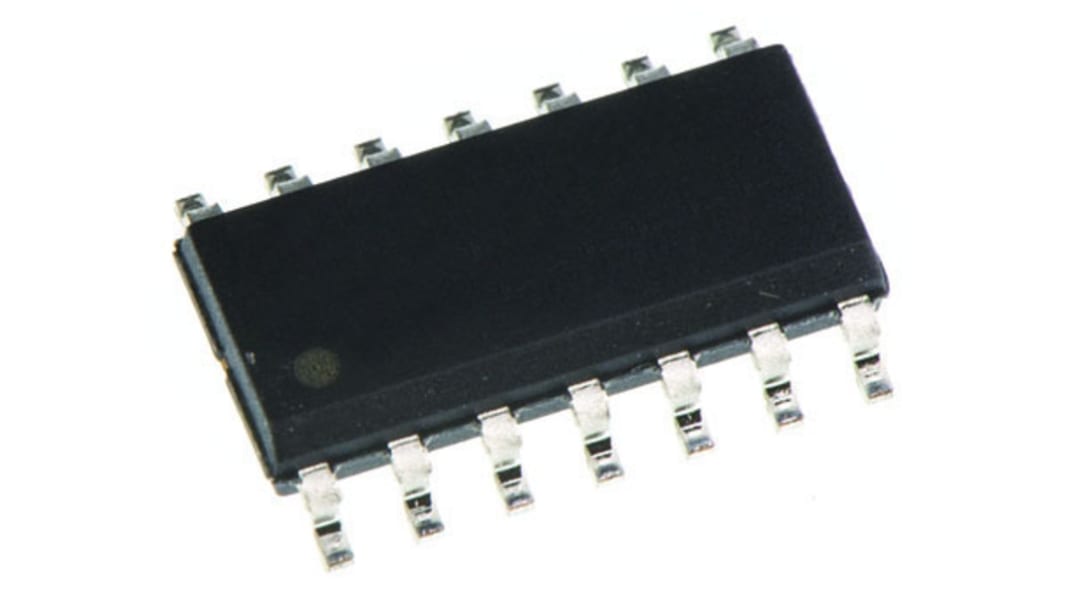

Texas Instruments SN74ALS32DR, Quad 2-Input OR Logic Gate, 14-Pin SOIC

Brand

Texas Instruments

Logic Function

OR

Mounting Type

Surface Mount

Number of Elements

4

Number of Inputs per Gate

2

Schmitt Trigger Input

No

Package Type

SOIC

Pin Count

14

Logic Family

ALS

Maximum Operating Supply Voltage

5.5 V

Maximum High Level Output Current

-0.4mA

Maximum Propagation Delay Time @ Maximum CL

14 ns @ 4.5 V → 5.5 V

Minimum Operating Supply Voltage

4.5 V

Maximum Low Level Output Current

8mA

Width

3.91mm

Height

1.58mm

Dimensions

8.65 x 3.91 x 1.58mm

Maximum Operating Temperature

+70 °C

Propagation Delay Test Condition

50pF

Length

8.65mm

Minimum Operating Temperature

0 °C
