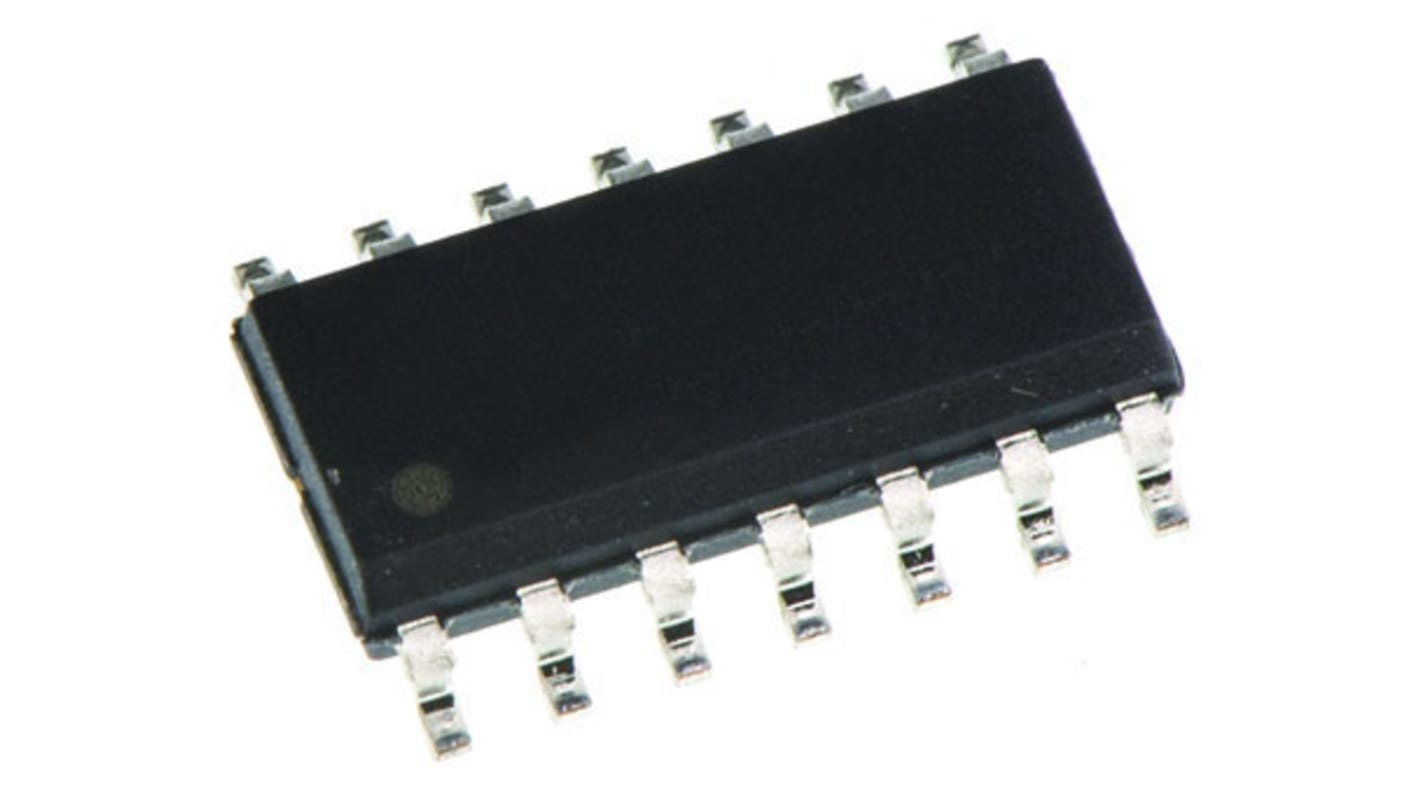

Texas Instruments SN74AHC32D, Quad 2-Input OR Logic Gate, 14-Pin SOIC

Brand

Texas Instruments

Logic Function

OR

Mounting Type

Surface Mount

Number of Elements

4

Number of Inputs per Gate

2

Schmitt Trigger Input

No

Package Type

SOIC

Pin Count

14

Logic Family

AHC

Maximum Operating Supply Voltage

5.5 V

Maximum High Level Output Current

-8mA

Maximum Propagation Delay Time @ Maximum CL

11.4 ns @ 3.3 V, 7.5 ns @ 5 V

Minimum Operating Supply Voltage

2 V

Maximum Low Level Output Current

8mA

Height

1.58mm

Minimum Operating Temperature

-40 °C

Width

3.91mm

Dimensions

8.65 x 3.91 x 1.58mm

Maximum Operating Temperature

+85 °C

Length

8.65mm

Propagation Delay Test Condition

50pF
