Units	Per unit	Per Pack**
10 - 90	€0.897	€8.97
100 - 240	€0.773	€7.73
250 - 490	€0.67	€6.70
500 - 990	€0.589	€5.89
1000 +	€0.536	€5.36

Select all	Attribute	Value
	Brand	onsemi
	Channel Type	P
	Maximum Continuous Drain Current	12 A
	Maximum Drain Source Voltage	60 V
	Package Type	DPAK (TO-252)
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	180 mΩ
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	4V
	Maximum Power Dissipation	55 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-20 V, +20 V
	Width	6.22mm
	Transistor Material	Si
	Number of Elements per Chip	1
	Length	6.73mm
	Maximum Operating Temperature	+175 °C
	Typical Gate Charge @ Vgs	15 nC @ 10 V
	Minimum Operating Temperature	-55 °C
	Height	2.38mm

	Select all
	Brand onsemi
	Channel Type P
	Maximum Continuous Drain Current 12 A
	Maximum Drain Source Voltage 60 V
	Package Type DPAK (TO-252)
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 180 mΩ
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 4V
	Maximum Power Dissipation 55 W
	Transistor Configuration Single
	Maximum Gate Source Voltage -20 V, +20 V
	Width 6.22mm
	Transistor Material Si
	Number of Elements per Chip 1
	Length 6.73mm
	Maximum Operating Temperature +175 °C
	Typical Gate Charge @ Vgs 15 nC @ 10 V
	Minimum Operating Temperature -55 °C
	Height 2.38mm

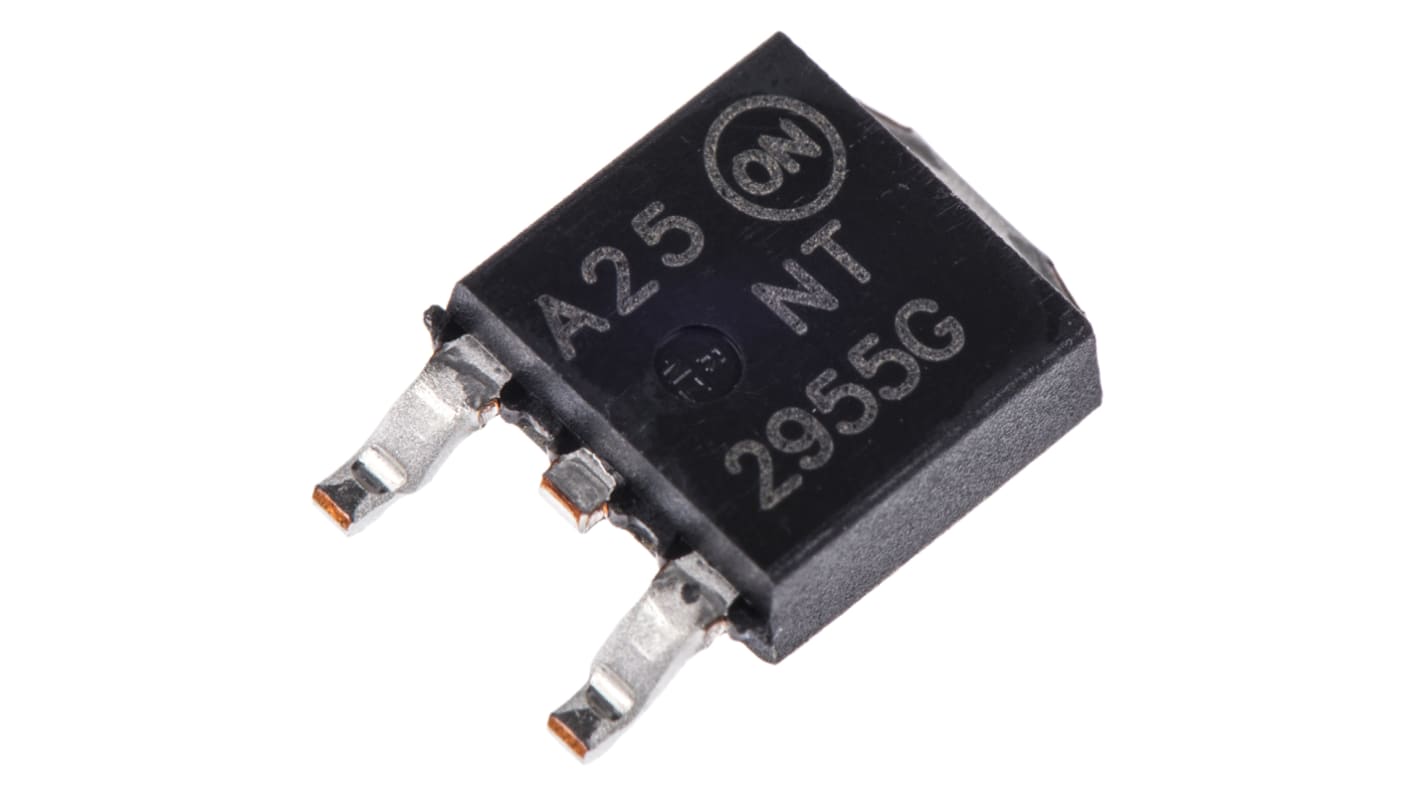

onsemi P-Channel MOSFET, 12 A, 60 V, 3-Pin DPAK NTD2955T4G

P-Channel Power MOSFET, 30V to 500V, ON Semiconductor
