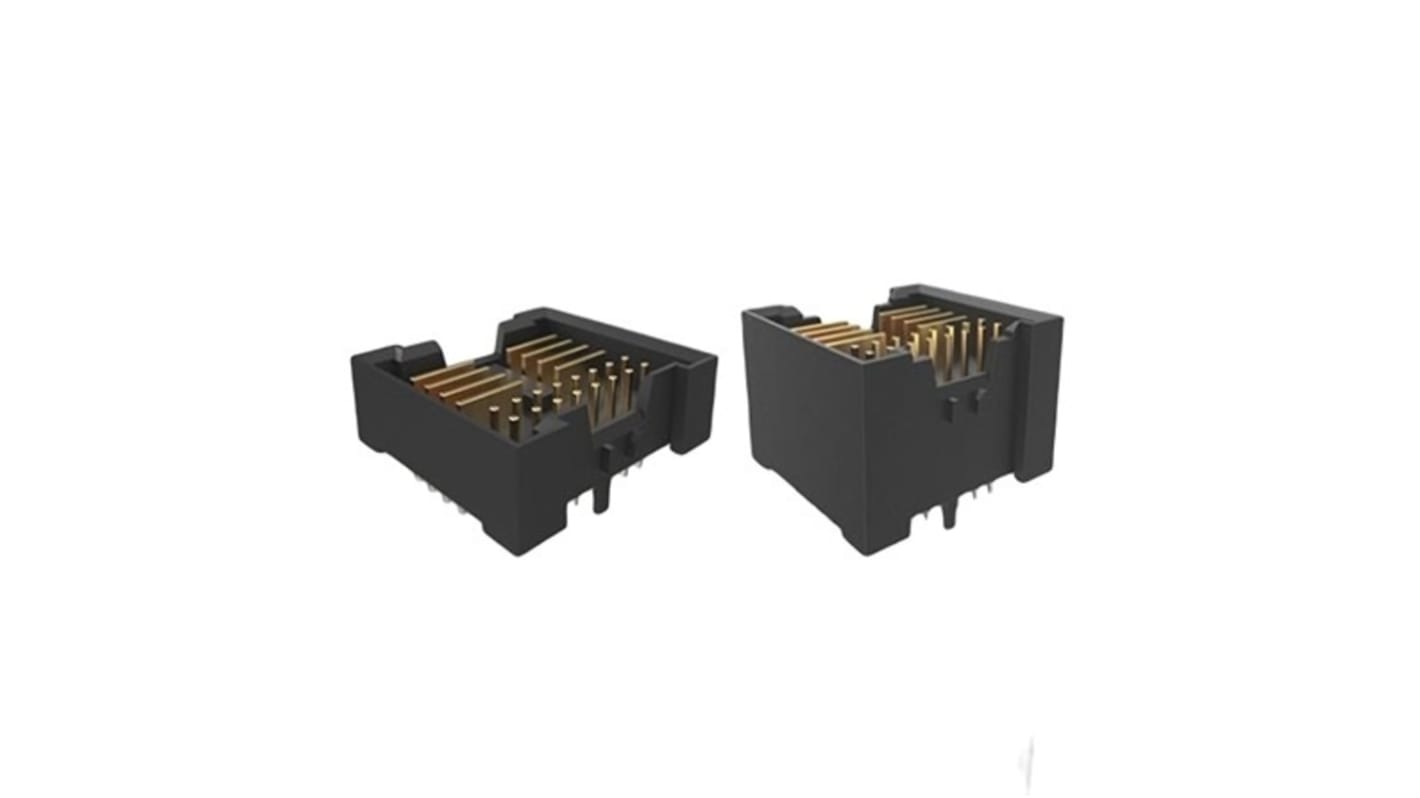

Amphenol Communications Solutions 10159583 Series Vertical Through Hole Header, 26 Contact(s), 2.5 mm Pitch, 8 Row,
- RS Stock No.:
- 281-8898
- Mfr. Part No.:
- 10159583-C231000LF
- Manufacturer:
- Amphenol Communications Solutions
Subtotal (1 tray of 420 units)*
€3,036.18
(exc. VAT)
€3,734.64
(inc. VAT)
In Stock
- Plus 1,260 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 420 + | €7.229 | €3,036.18 |
*price indicative
- RS Stock No.:
- 281-8898
- Mfr. Part No.:
- 10159583-C231000LF
- Manufacturer:
- Amphenol Communications Solutions
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Series | 10159583 | |
| Product Type | Header | |
| Pitch | 2.5mm | |
| Current | 4A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 26 | |
| Number of Rows | 8 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 2.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Tail Pin Length | 2.5mm | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | UL | |
| Mating Pin Length | 2.5mm | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Series 10159583 | ||
Product Type Header | ||
Pitch 2.5mm | ||
Current 4A | ||
Housing Material Thermoplastic | ||
Number of Contacts 26 | ||
Number of Rows 8 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Through Hole | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Row Pitch 2.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Tail Pin Length 2.5mm | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals UL | ||
Mating Pin Length 2.5mm | ||
Voltage 500 V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Amphenol Communications Solutions PwrBlade MiniMezz Connector introduces enhanced features to our existing PwrBlade products in a smaller profile. It has modular tooling to accommodate wide range of application requirements.
Lower contact resistance
Built in blind mate guide posts
Solder tail or press fit tail board termination
