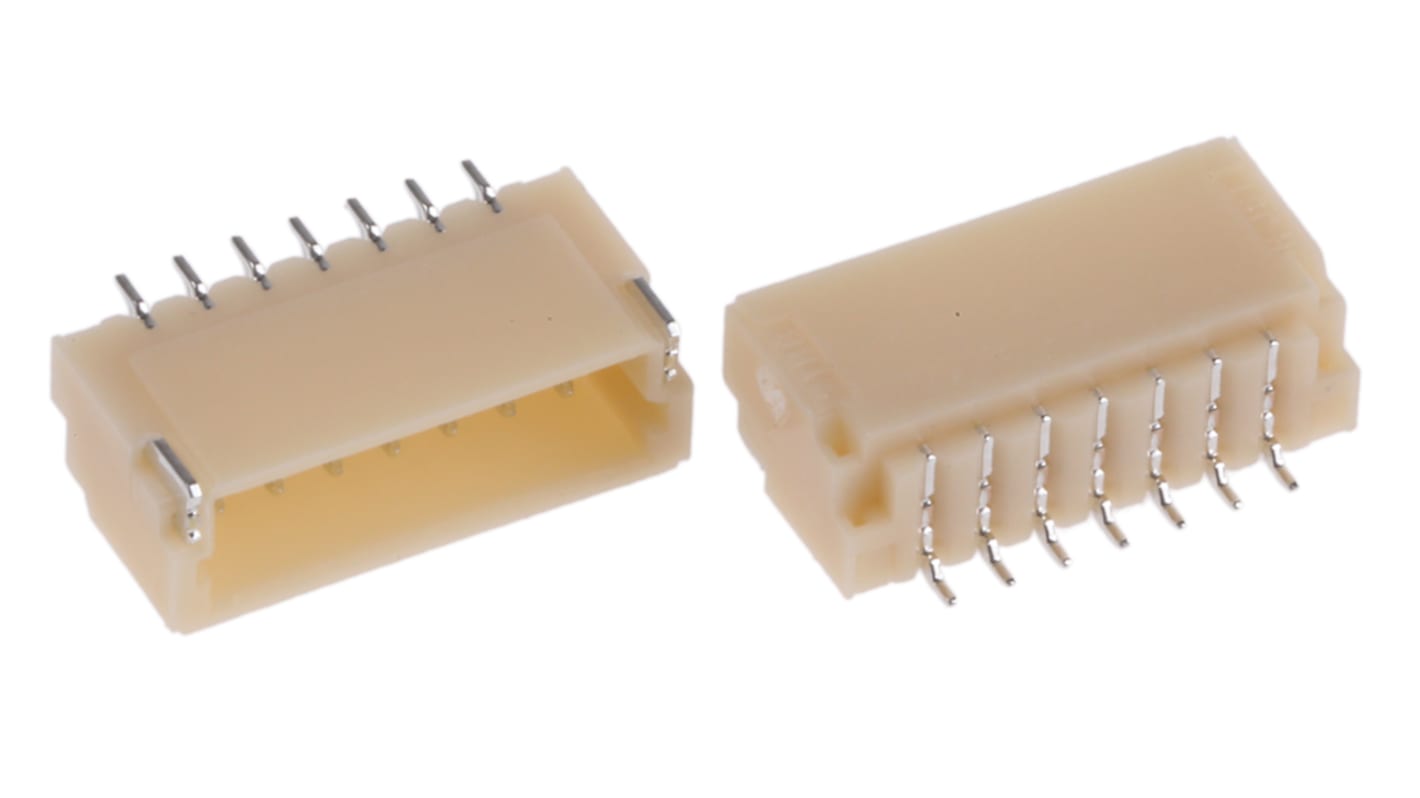

JST SH Series Right Angle Surface Mount PCB Header, 7 Contact(s), 1.0mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 546-8833
- Mfr. Part No.:
- SM07B-SRSS-TB (LF)(SN)
- Manufacturer:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)**
€7.78
(exc. VAT)
€9.57
(inc. VAT)
620 In stock for delivery within 2 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
Real time stock check
Units | Per unit | Per Pack** |
|---|---|---|
| 10 - 240 | €0.778 | €7.78 |
| 250 - 990 | €0.69 | €6.90 |
| 1000 - 1490 | €0.606 | €6.06 |
| 1500 - 2490 | €0.521 | €5.21 |
| 2500 + | €0.435 | €4.35 |
**price indicative
- RS Stock No.:
- 546-8833
- Mfr. Part No.:
- SM07B-SRSS-TB (LF)(SN)
- Manufacturer:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | SH | |
| Pitch | 1.0mm | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire to Board | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Current Rating | 1.0A | |
| Voltage Rating | 50.0 V | |
Select all | ||
|---|---|---|
Brand JST | ||
Series SH | ||
Pitch 1.0mm | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Current Rating 1.0A | ||
Voltage Rating 50.0 V | ||
