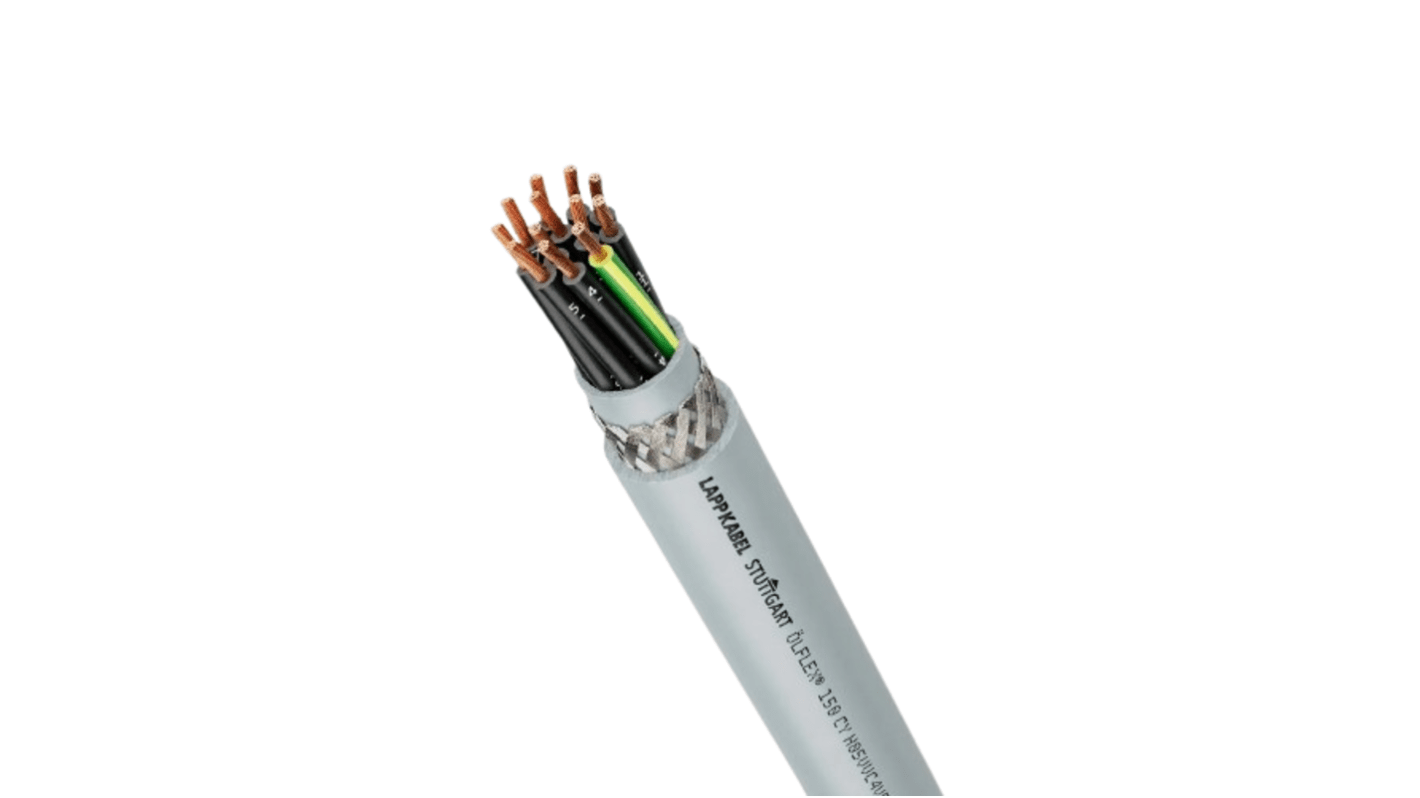

Lapp ÖLFLEX CLASSIC 150 CY Control Cable, 4 Cores, 1.5 mm², CY, Screened, 50m, Grey PVC Sheath, 16 AWG
- RS Stock No.:
- 454-8994
- Distrelec Article No.:
- 304-03-731
- Mfr. Part No.:
- 0015804
- Manufacturer:
- Lapp
Subtotal (1 reel of 50 metres)*
€406.42
(exc. VAT)
€499.90
(inc. VAT)
In Stock
- 7 unit(s) ready to ship from another location
- Plus 999,999,992 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €406.42 | €8.128 |
*price indicative
- RS Stock No.:
- 454-8994
- Distrelec Article No.:
- 304-03-731
- Mfr. Part No.:
- 0015804
- Manufacturer:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 150 CY | |
| Number of Cores | 4 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Control Cable Type | CY | |
| Screened/Unscreened | Screened | |
| Screen Type | Tinned Copper Braid | |
| Length | 50m | |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D | |
| Outer Diameter | 11.3mm | |
| Voltage Rating | 600 V | |
| Current Rating | 18 A | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +90°C | |
| Insulation Material | PVC | |
| Bedding Material | PVC | |
| Core Strands | 30/0.25 mm | |
| Minimum Operating Temperature | -40°C | |
| Earth Cable | Yes | |
| Conductor Resistance | 13.7 Ω/km | |
| Oil Resistant | Yes | |
| Filler Material | Non-Wicking Filler | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 150 CY | ||
Number of Cores 4 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type CY | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Length 50m | ||
Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D | ||
Outer Diameter 11.3mm | ||
Voltage Rating 600 V | ||
Current Rating 18 A | ||
CPR Certification Eca | ||
Maximum Operating Temperature +90°C | ||
Insulation Material PVC | ||
Bedding Material PVC | ||
Core Strands 30/0.25 mm | ||
Minimum Operating Temperature -40°C | ||
Earth Cable Yes | ||
Conductor Resistance 13.7 Ω/km | ||
Oil Resistant Yes | ||
Filler Material Non-Wicking Filler | ||
