MPN

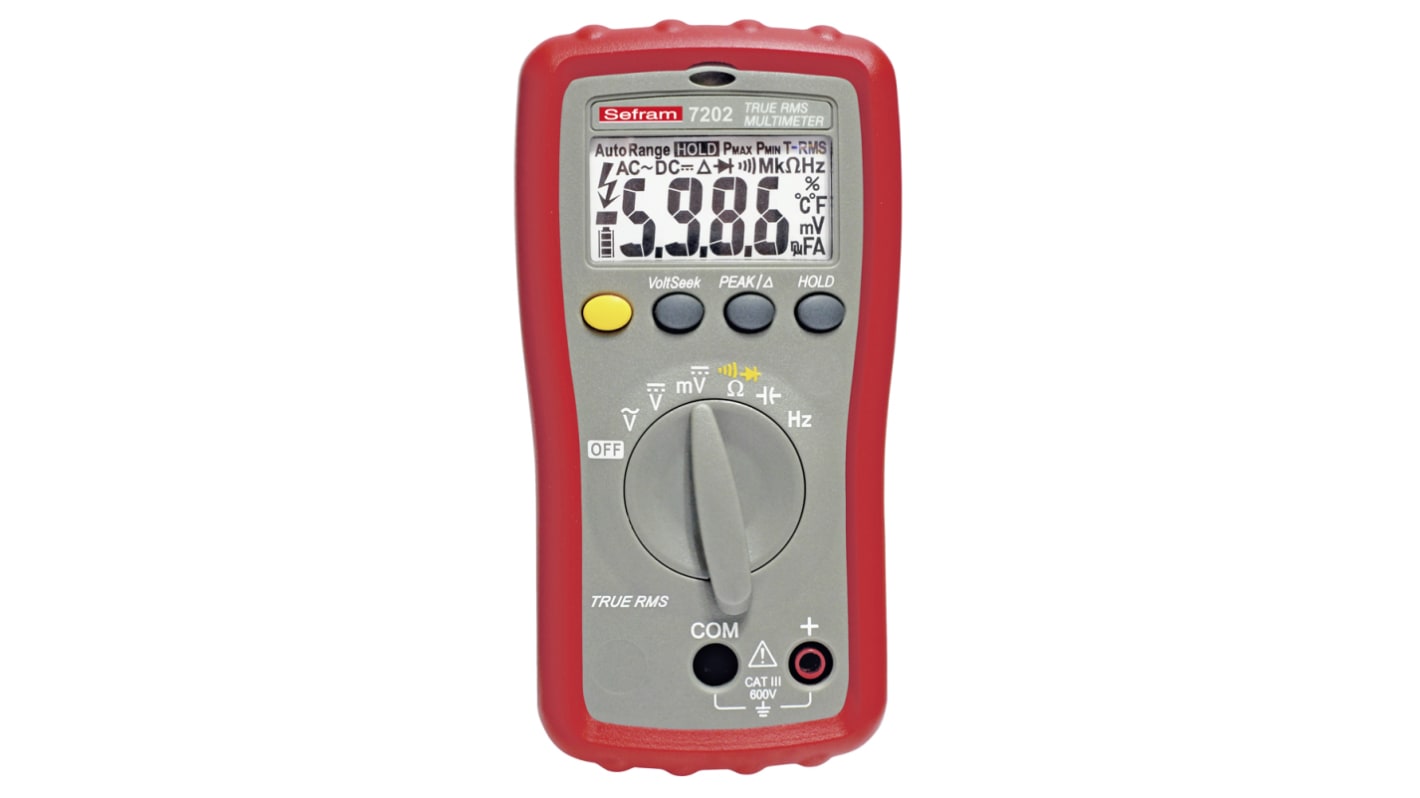

Sefram 720X Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V Max

RS Stock No.:: 219-3217
Mfr. Part No.:: SEFRAM7202
Manufacturer:: Sefram

Sefram 720X Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V Max

Subtotal (1 unit)*

€196.80

(exc. VAT)

€242.06

(inc. VAT)

Stock information currently inaccessible

Units	Per unit
1 +	€196.80

*price indicative

RS Stock No.:: 219-3217
Mfr. Part No.:: SEFRAM7202
Manufacturer:: Sefram

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sefram
	Multimeter Type	Handheld
	Product Type	Multimeter
	Resistance Resolution	10Ω
	Display Type	Digital
	Functions Measured	Continuity, Frequency, DC Voltage, Capacitance, AC Voltage, Resistance
	Maximum AC Voltage Measurement	600V
	Maximum DC Voltage Measurement	600V
	Maximum Resistance Measurement	40mΩ
	Maximum DC Current Measurement	10A
	Maximum AC Current Measurement	10A
	True RMS	Yes
	DC Voltage Accuracy	0.5 % rdg + 3 Digits
	AC Voltage Accuracy	1 % rdg + 3 Digits
	AC Current Accuracy	1.5 % rdg + 5 Digits
	AC Current Resolution	1mA
	DC Current Resolution	1A
	DC Voltage Resolution	0.1mV to 0.1V
	AC Voltage Resolution	0.1mV
	Maximum Frequency	50kHz
	Power Source	1.5 V Battery
	Resistance Measurement Accuracy	0.5 % rdg + 2 Digits
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	40°C
	Battery Life	300h
	Weight	320g
	Series	720X
	Standards/Approvals	No
	Safety Category Level	CAT III
	Safety Category Voltage	600V
	Calibrated	RSCAL
	Battery Type	AAA

	Select all
	Brand Sefram
	Multimeter Type Handheld
	Product Type Multimeter
	Resistance Resolution 10Ω
	Display Type Digital
	Functions Measured Continuity, Frequency, DC Voltage, Capacitance, AC Voltage, Resistance
	Maximum AC Voltage Measurement 600V
	Maximum DC Voltage Measurement 600V
	Maximum Resistance Measurement 40mΩ
	Maximum DC Current Measurement 10A
	Maximum AC Current Measurement 10A
	True RMS Yes
	DC Voltage Accuracy 0.5 % rdg + 3 Digits
	AC Voltage Accuracy 1 % rdg + 3 Digits
	AC Current Accuracy 1.5 % rdg + 5 Digits
	AC Current Resolution 1mA
	DC Current Resolution 1A
	DC Voltage Resolution 0.1mV to 0.1V
	AC Voltage Resolution 0.1mV
	Maximum Frequency 50kHz
	Power Source 1.5 V Battery
	Resistance Measurement Accuracy 0.5 % rdg + 2 Digits
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 40°C
	Battery Life 300h
	Weight 320g
	Series 720X
	Standards/Approvals No
	Safety Category Level CAT III
	Safety Category Voltage 600V
	Calibrated RSCAL
	Battery Type AAA

Datasheet - SEFRAM7202

COO (Country of Origin):: TW

The Sefram TRMS 6000cts handheld digital multimeter. It can measure 600 V both AC/DC voltages.

Voltage measurement: up to 600V AC and 600V DC

Resistance measurement up to 40Mohms

Continuity test with buzzer

Non contact voltage detector

Sefram 720X Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V Max
