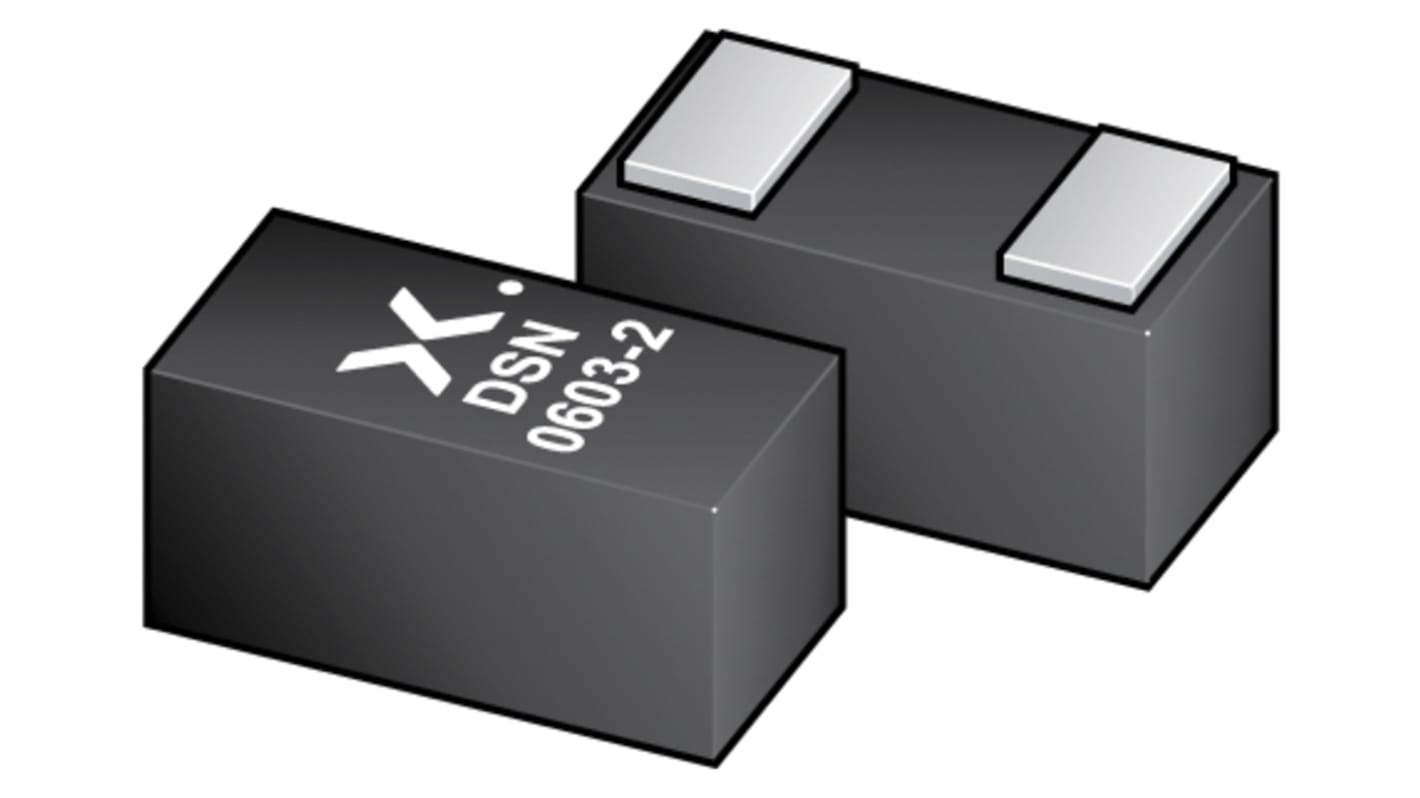

Nexperia PESD5V0R1BSFYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DSN0603

RS Stock No.:: 151-3068
Mfr. Part No.:: PESD5V0R1BSFYL
Manufacturer:: Nexperia

Nexperia PESD5V0R1BSFYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DSN0603

Subtotal (1 reel of 9000 units)**

€414.00

(exc. VAT)

€513.00

(inc. VAT)

18000 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit	Per Reel**
9000 +	€0.046	€414.00

**price indicative

Compare

RS Stock No.:: 151-3068
Mfr. Part No.:: PESD5V0R1BSFYL
Manufacturer:: Nexperia

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Direction Type	Bi-Directional
Diode Configuration	Dual
Maximum Clamping Voltage	5V
Minimum Breakdown Voltage	6V
Mounting Type	Surface Mount
Package Type	DSN0603
Maximum Reverse Stand-off Voltage	5V
Pin Count	2
Maximum Peak Pulse Current	4.5A
ESD Protection	Yes
Number of Elements per Chip	2
Minimum Operating Temperature	-40 °C
Dimensions	0.62 x 0.32 x 0.29mm
Maximum Operating Temperature	+125 °C
Width	0.32mm
Length	0.62mm
Height	0.29mm
Capacitance	0.15pF
ESD Voltage	15kV
Maximum Reverse Leakage Current	50nA

Nexperia PESD5V0R1BSFYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DSN0603
