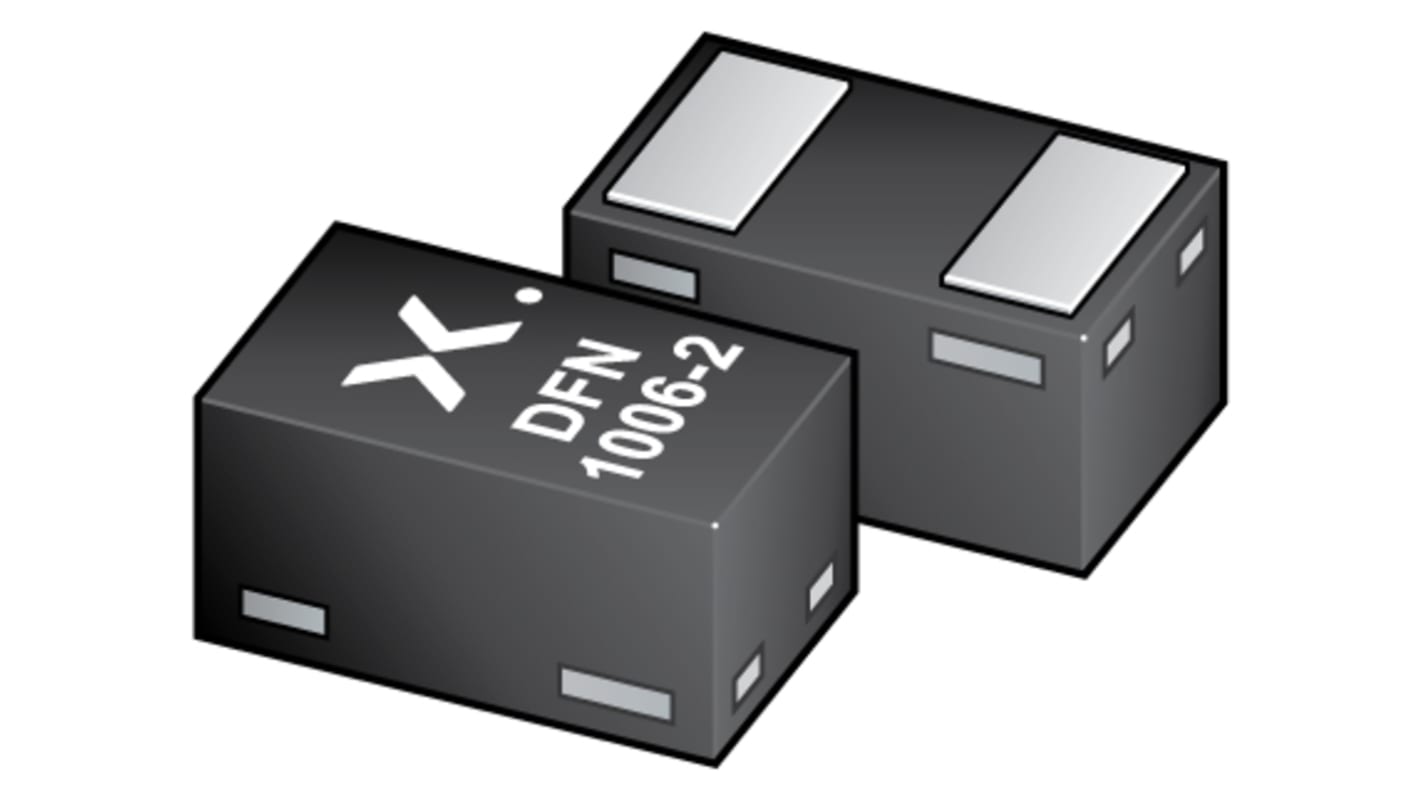

Nexperia PESD18VF1BLYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882

RS Stock No.:: 153-2949
Mfr. Part No.:: PESD18VF1BLYL
Manufacturer:: Nexperia

Nexperia PESD18VF1BLYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882

Price Each (In a Pack of 50)**

€0.059

(exc. VAT)

€0.073

(inc. VAT)

5400 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
50 +	€0.059	€2.95

**price indicative

RS Stock No.:: 153-2949
Mfr. Part No.:: PESD18VF1BLYL
Manufacturer:: Nexperia

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Diode Configuration	Dual
Direction Type	Bi-Directional
Maximum Clamping Voltage	17V
Minimum Breakdown Voltage	19V
Mounting Type	Surface Mount
Package Type	DFN1006, SOD-882
Maximum Reverse Stand-off Voltage	18V
Pin Count	2
Maximum Peak Pulse Current	1A
ESD Protection	Yes
Number of Elements per Chip	2
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+150 °C
Dimensions	1.02 x 0.62 x 0.47mm
Length	1.02mm
Automotive Standard	AEC-Q101
Maximum Reverse Leakage Current	30nA
Width	0.62mm
Height	0.47mm
Capacitance	0.5pF

Nexperia PESD18VF1BLYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882
