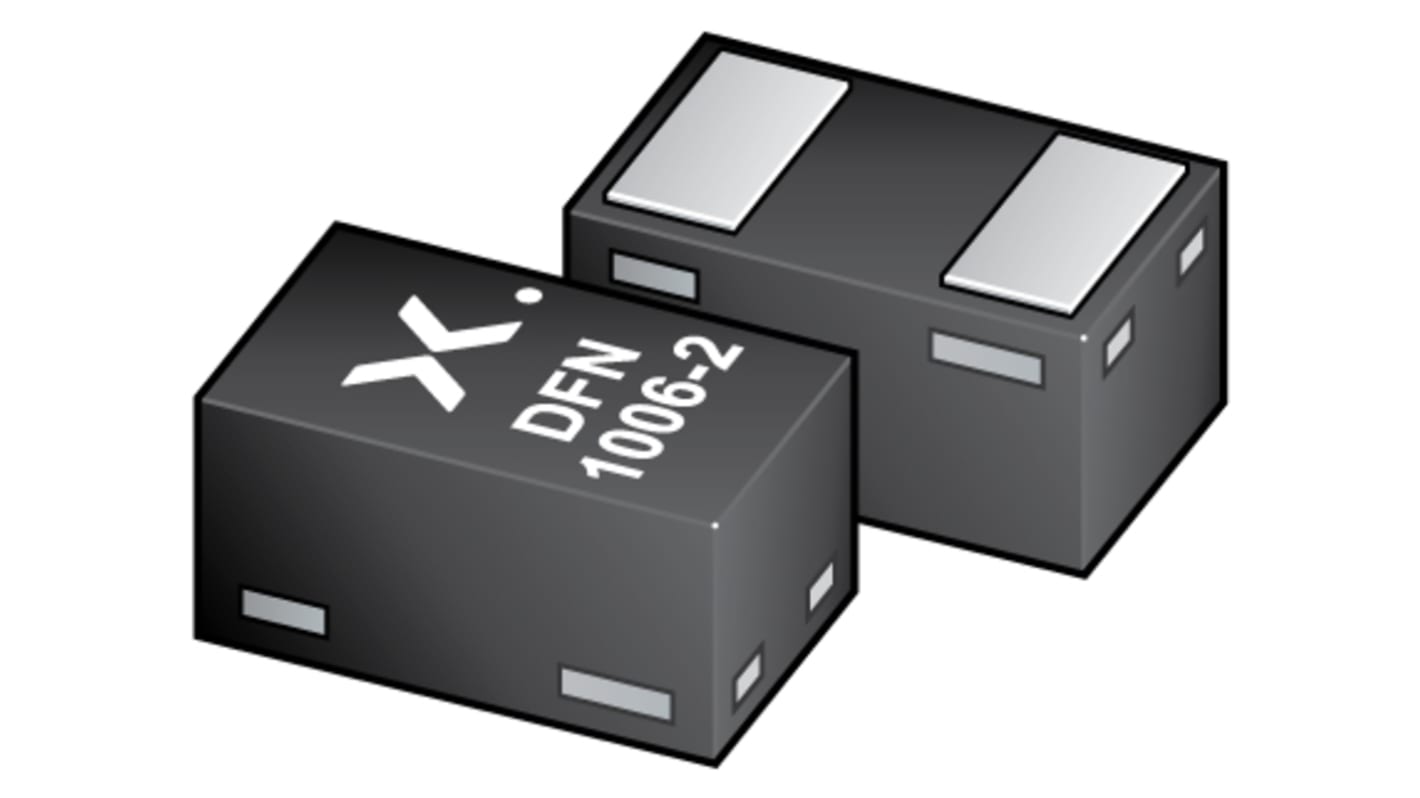

Nexperia PESD18VF1BLYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882

RS Stock No.:: 153-2838
Mfr. Part No.:: PESD18VF1BLYL
Manufacturer:: Nexperia

Nexperia PESD18VF1BLYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882

Subtotal (1 reel of 10000 units)**

€670.00

(exc. VAT)

€820.00

(inc. VAT)

Temporarily out of stock - back order for despatch 12-06-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Reel**
10000 +	€0.067	€670.00

**price indicative

Compare

RS Stock No.:: 153-2838
Mfr. Part No.:: PESD18VF1BLYL
Manufacturer:: Nexperia

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Direction Type	Bi-Directional
Diode Configuration	Dual
Maximum Clamping Voltage	17V
Minimum Breakdown Voltage	19V
Mounting Type	Surface Mount
Package Type	DFN1006, SOD-882
Maximum Reverse Stand-off Voltage	18V
Pin Count	2
Maximum Peak Pulse Current	1A
ESD Protection	Yes
Number of Elements per Chip	2
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+150 °C
Dimensions	1.02 x 0.62 x 0.47mm
Width	0.62mm
Height	0.47mm
Maximum Reverse Leakage Current	30nA
Automotive Standard	AEC-Q101
Length	1.02mm
Capacitance	0.5pF

Nexperia PESD18VF1BLYL, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882
