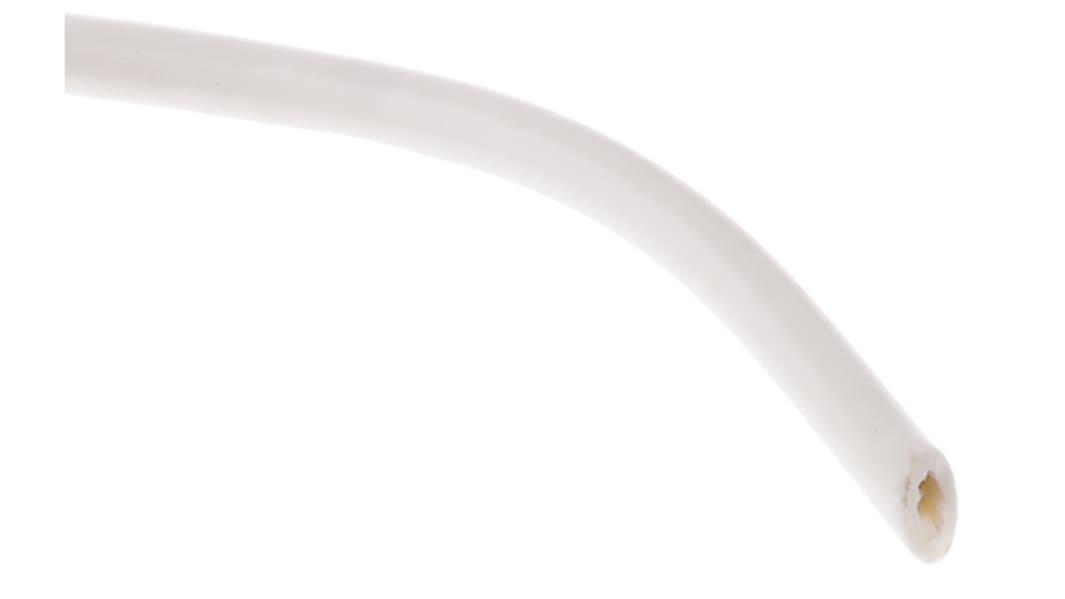

Alpha Wire Hook-up Wire PVC Series White 0.35 mm² Harsh Environment Wire, 22 AWG, 7/0.25 mm, 30m, PVC Insulation, 3051
- RS Stock No.:
- 168-1543
- Distrelec Article No.:
- 155-23-659
- Mfr. Part No.:
- 3051 WH005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)**
€17.39
(exc. VAT)
€21.39
(inc. VAT)
4 Within 1 working day(s) (IE stock)*
53 Within 2 working day(s) (EU stock)
* Delivery dates may change based on your chosen quantity and delivery address.
Real time stock check
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | €17.39 | €0.58 |
**price indicative
- RS Stock No.:
- 168-1543
- Distrelec Article No.:
- 155-23-659
- Mfr. Part No.:
- 3051 WH005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.35 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.25 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.57mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Standards Met | UL Listed | |
| Wire Style | UL1007 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.41mm | |
| Number of Strands | 7 | |
| Size of Strands | 0.25 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.35 mm² | ||
Sheath Colour White | ||
American Wire Gauge 22 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.25 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.57mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Standards Met UL Listed | ||
Wire Style UL1007 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.41mm | ||
Number of Strands 7 | ||
Size of Strands 0.25 mm | ||
