Units	Per unit	Per Reel*
3000 - 3000	€0.138	€414.00
6000 - 6000	€0.131	€393.00
9000 +	€0.123	€369.00

Select all	Attribute	Value
	Brand	Infineon
	Direction Type	Uni-Directional
	Diode Configuration	Common Anode
	Maximum Clamping Voltage	28V
	Minimum Breakdown Voltage	6V
	Mounting Type	Surface Mount
	Package Type	TSFP
	Pin Count	3
	Maximum Peak Pulse Current	3A
	ESD Protection	Yes
	Number of Elements per Chip	2
	Minimum Operating Temperature	-40 °C
	Dimensions	1.2 x 1.2 x 0.55mm
	Maximum Operating Temperature	+125 °C
	Length	1.2mm
	Height	0.55mm
	Maximum Reverse Leakage Current	50nA
	Width	1.2mm
	Test Current	1mA
	Working Voltage	5.3V
	ESD Voltage	20kV
	Capacitance	0.6pF

	Select all
	Brand Infineon
	Direction Type Uni-Directional
	Diode Configuration Common Anode
	Maximum Clamping Voltage 28V
	Minimum Breakdown Voltage 6V
	Mounting Type Surface Mount
	Package Type TSFP
	Pin Count 3
	Maximum Peak Pulse Current 3A
	ESD Protection Yes
	Number of Elements per Chip 2
	Minimum Operating Temperature -40 °C
	Dimensions 1.2 x 1.2 x 0.55mm
	Maximum Operating Temperature +125 °C
	Length 1.2mm
	Height 0.55mm
	Maximum Reverse Leakage Current 50nA
	Width 1.2mm
	Test Current 1mA
	Working Voltage 5.3V
	ESD Voltage 20kV
	Capacitance 0.6pF

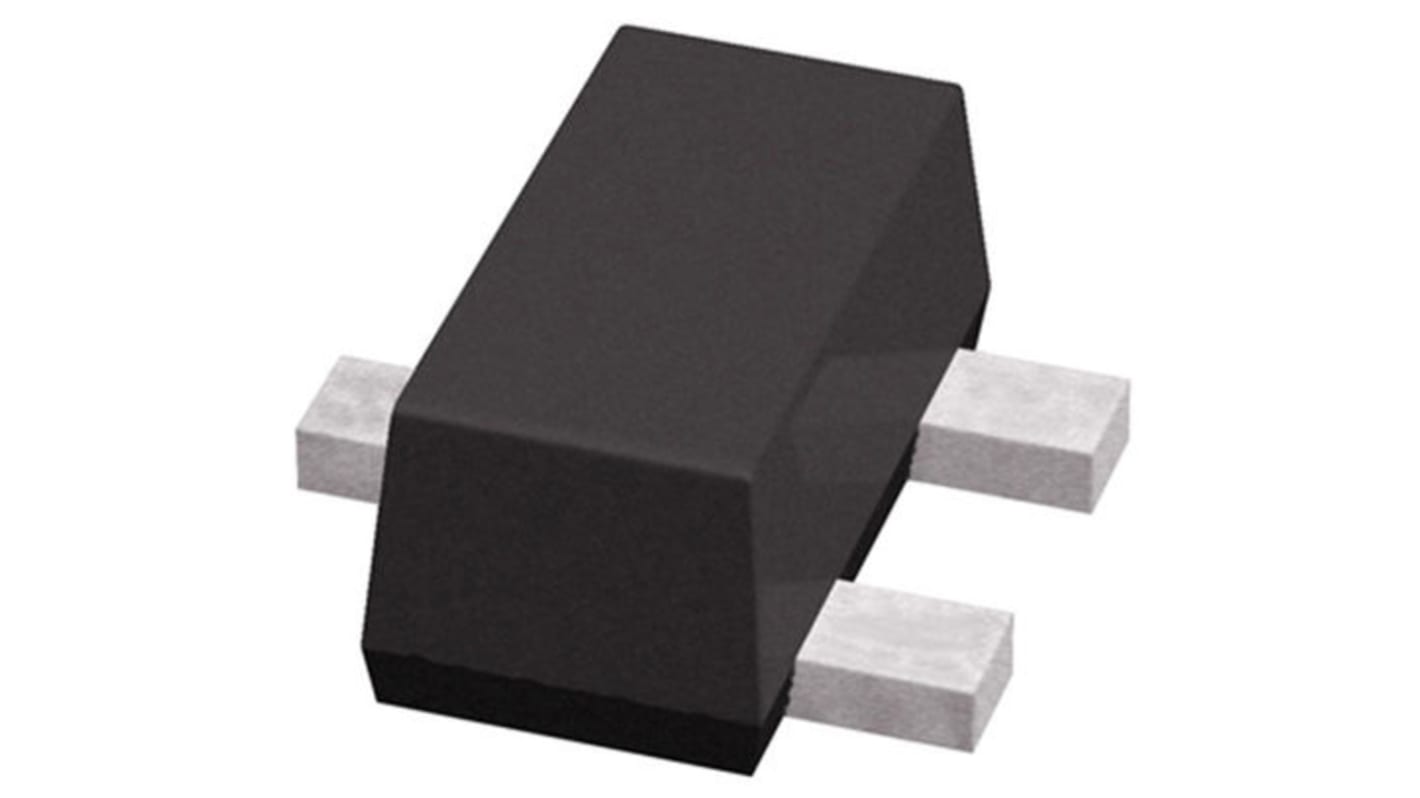

Infineon ESD5V3U2U03FH6327XTSA1, Dual-Element Uni-Directional ESD Protection Diode, 3-Pin TSFP

ESD Protection TVS Diode Arrays
