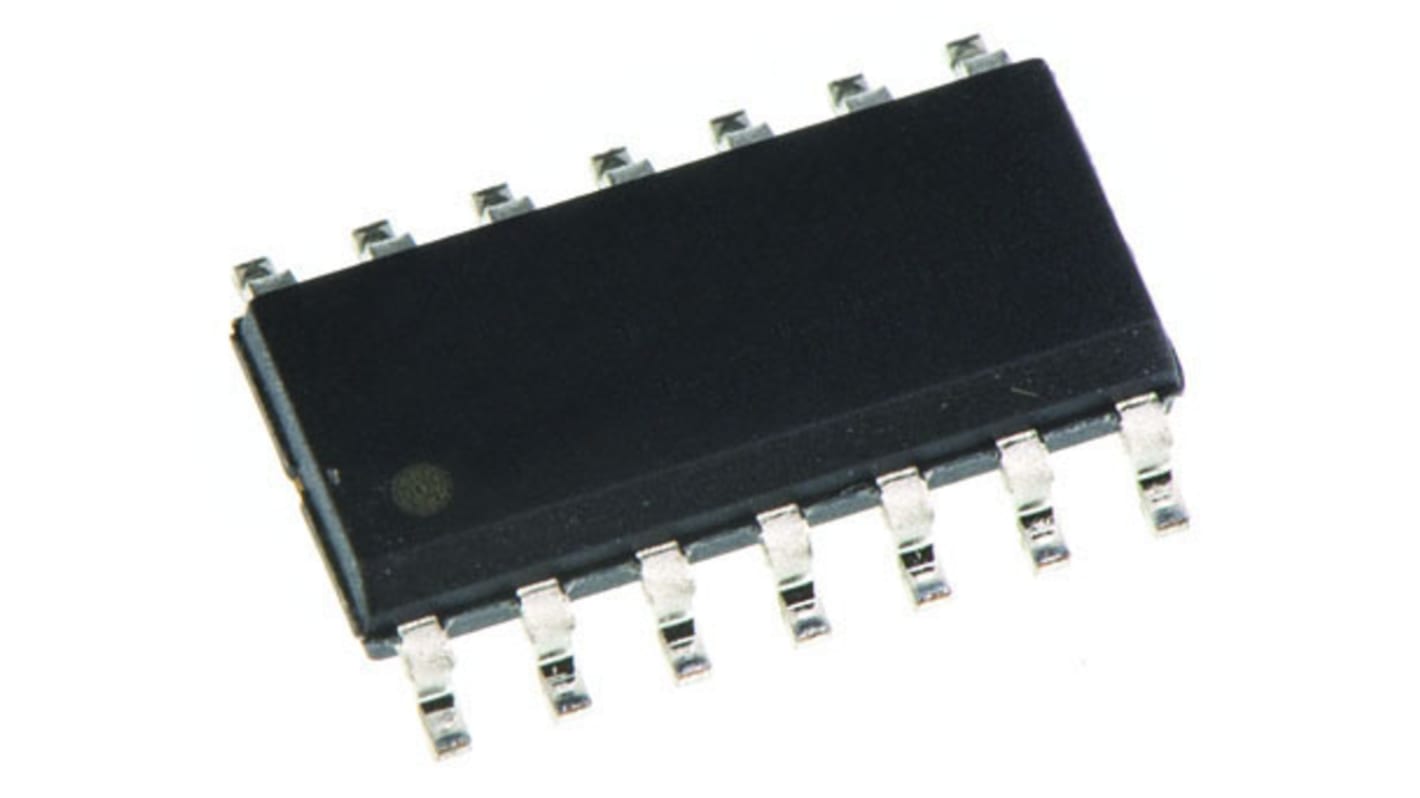

Texas Instruments CD4071BM96, Quad 2-Input OR Logic Gate, 14-Pin SOIC

RS Stock No.:: 662-6857
Mfr. Part No.:: CD4071BM96
Manufacturer:: Texas Instruments

Texas Instruments CD4071BM96, Quad 2-Input OR Logic Gate, 14-Pin SOIC

Bulk discount available

Subtotal (1 pack of 10 units)**

€1.86

(exc. VAT)

€2.29

(inc. VAT)

60 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit	Per Pack**
10 - 40	€0.186	€1.86
50 - 90	€0.176	€1.76
100 - 240	€0.158	€1.58
250 - 490	€0.152	€1.52
500 +	€0.149	€1.49

**price indicative

RS Stock No.:: 662-6857
Mfr. Part No.:: CD4071BM96
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Function	OR
Mounting Type	Surface Mount
Number of Elements	4
Number of Inputs per Gate	2
Schmitt Trigger Input	No
Package Type	SOIC
Pin Count	14
Logic Family	4000
Maximum Operating Supply Voltage	18 V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ Maximum CL	120 ns @ 10 V, 250 ns @ 5 V, 90 ns @ 15 V
Minimum Operating Supply Voltage	3 V
Maximum Low Level Output Current	4.2mA
Minimum Operating Temperature	-55 °C
Height	1.58mm
Propagation Delay Test Condition	50pF
Maximum Operating Temperature	+125 °C
Dimensions	8.65 x 3.91 x 1.58mm
Length	8.65mm
Width	3.91mm

Texas Instruments CD4071BM96, Quad 2-Input OR Logic Gate, 14-Pin SOIC

4000 Series Logic Gates, Texas Instruments
